Xiaomi SU7 Big Brake Kit Upgrade / TTSPORT Evolution EB8

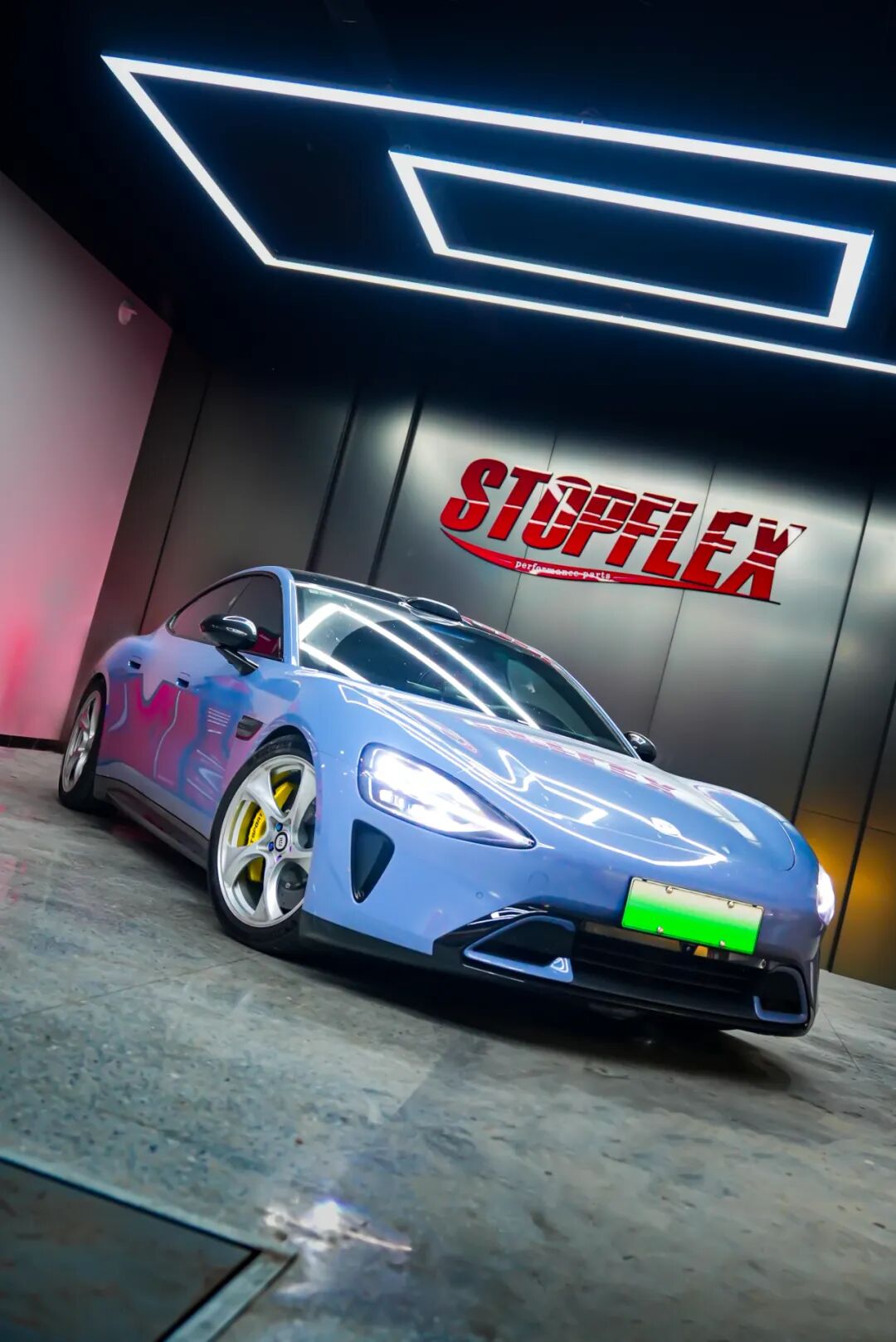

The Xiaomi SU7's brake setup gets debated a lot. Higher trims come with big four-piston front calipers, but they're matched to pads with a fairly small friction area — enough for everyday stopping, but not much of a margin once you start driving harder. This Founder's Edition SU7, upgraded by Minzhong Technical Service Center, swaps in a TTSPORT front-eight/rear-four carbon-ceramic big brake kit to close that gap.
The stock caliper does its job, but with limited pad contact area it runs out of headroom quickly under repeated hard stops. Bigger pistons, more friction area, and a heavier rotor buy back that margin — which is the whole idea behind this build.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | Xiaomi SU7 Founder's Edition, 20-inch wheels |
| Front caliper | TTSPORT Evolution Series EB8 forged eight-piston caliper |
| Front rotor | 405mm carbon-ceramic rotor |
| Rear caliper | TTSPORT four-piston caliper with integrated single-piston electronic parking brake actuator |
| Rear rotor | 380mm carbon-ceramic rotor |
| Bracket | Vehicle-specific caliper mounting brackets, front and rear |
| Pads / lines | High-performance ceramic brake pads, TTSPORT stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts, and installation hardware |
The front caliper in this build is the TTSPORT EB8 — here's the official spec sheet for that unit.
| Brake Caliper | |
|---|---|
| Series | Evolution Series |
| Model / Application | EB8 |
| Axle Position | Front |
| Piston Count | 8-piston |
| Piston Type | Two-piece heat-insulated pistons with dust boots |
| Piston Diameter | 28 mm × 4 / 32 mm × 4 |
| Caliper Dimensions | L 349 mm × W 166 mm × H 98 mm |
| Total Piston Area | 56.8 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 4.95 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 19 in or larger |
| Recommended Rotor Size | Ø380–405 mm × 34 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 107 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
The EB8's two-piece forged aluminum body is stiffer than a stock caliper housing, so less pedal energy gets absorbed by caliper flex under hard braking — that's a big part of what pedal feel actually comes down to. Eight pistons across a larger total piston area spread clamping force more evenly over the pad, and the vented, lightweight design helps the caliper shed heat instead of holding it.
- More stopping power: eight pistons up front generate stronger, more even clamping force than the factory caliper.
- Less fade: the larger carbon-ceramic rotors and vented caliper design help control heat buildup during repeated hard stops.
- Better feel: two-piece ventilated pistons with upgraded seals give a more linear, predictable pedal at speed.
At the rear, the TTSPORT four-piston caliper handles service braking while a built-in single-piston electronic actuator takes care of the parking brake — the same caliper covers both jobs. Forged construction with a lightened body keeps rigidity up while helping heat dissipate, and it's designed to pair directly with the front EB8 for a matched front/rear setup.
Installation Gallery
What does the TTSPORT big brake kit for the Xiaomi SU7 include?
Does the electronic parking brake still work after the upgrade?
What wheel size was this kit installed with?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
