BMW X5 Big Brake Kit Upgrade / TTSPORT Mono EMB6

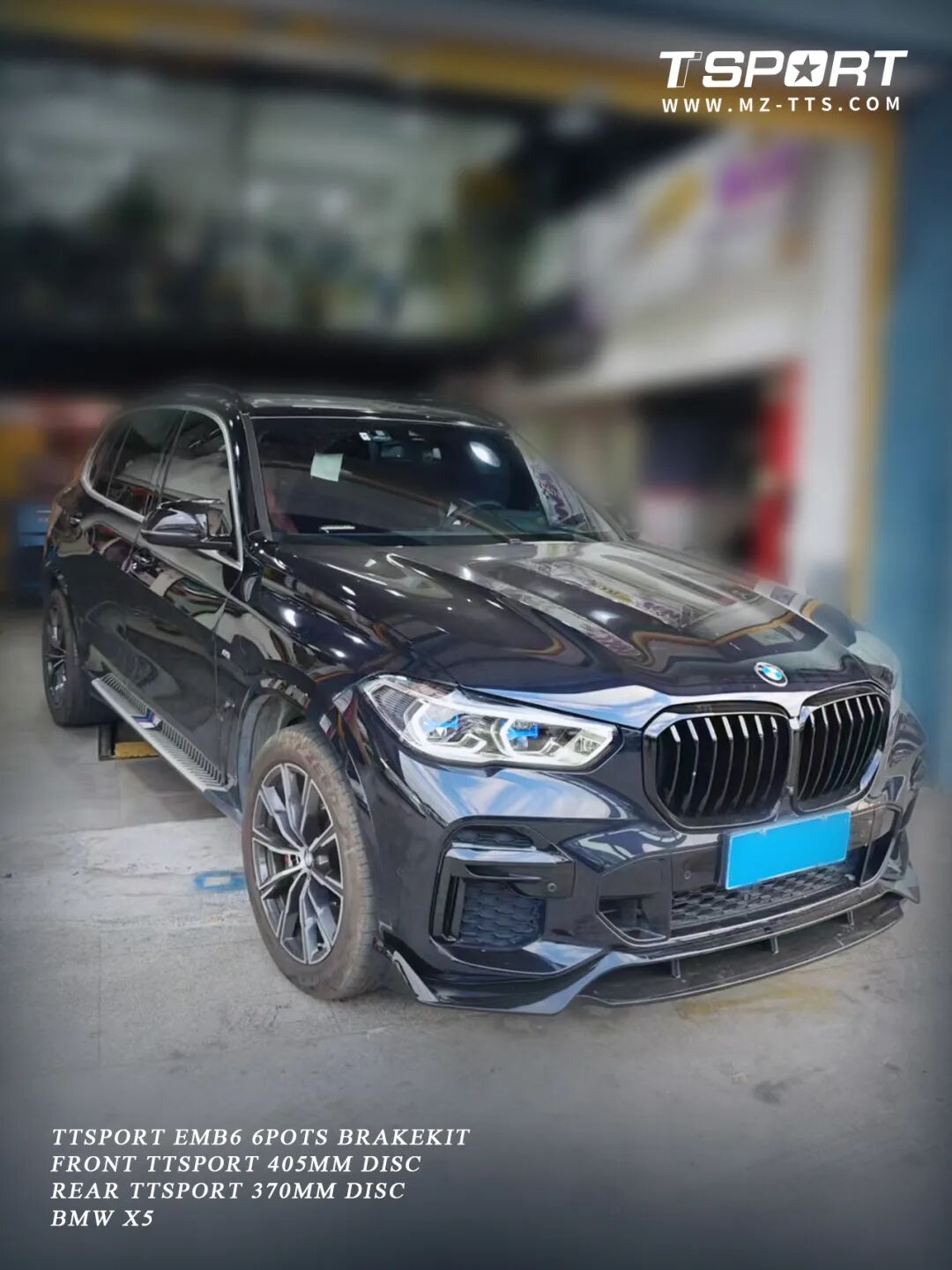

Big and heavy, the BMW X5 leans on its stock four-piston front calipers to haul down SUV-class curb weight — fine for daily driving, but the pedal goes soft fast once you actually push it. This build swaps the front end for a TTSPORT Mono EMB6 six-piston kit and upsizes the rear rotor, all tucked behind the X5's factory 20-inch wheels.
Since its 1999 debut, the X5 has balanced daily comfort with genuine driving fun, but the brake package was engineered for commuting and light off-road use — not sustained hard stops.
Why the Stock X5 Brakes Fall Short
The factory four-piston calipers move plenty of fluid for normal traffic, but their piston area and pad contact patch aren't sized for repeated high-speed decelerations. Push the X5 hard on a mountain road or a track day and the pedal starts to travel long and soft as pads and fluid heat up — the classic sign of a brake system running out of margin.
For owners chasing more spirited driving, the OEM setup is the limiting factor, not the rest of the chassis. That's the gap TTSPORT's EMB6 kit is built to close.
Vehicle & Kit Specs
This X5 build pairs a Mono Series EMB6 caliper with larger front and rear rotors, sourced parts, and vehicle-specific mounting hardware:
| Item | Specification |
|---|---|
| Vehicle | BMW X5, factory 20-inch wheels |
| Front caliper | TTSPORT EMB6 monobloc-forged six-piston caliper |
| Front rotor | TTSPORT 405mm high-carbon rotor |
| Rear rotor | TTSPORT 370mm oversized high-carbon rotor |
| Bracket | Custom vehicle-specific caliper bracket |
| Pads / lines | TTSPORT high-performance pads, stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts, and installation hardware |
Below is the full published spec sheet for the EMB6 caliper used in this build:
| Brake Caliper | |
|---|---|
| Series | Mono Series |
| Model / Application | EMB6 |
| Axle Position | Front |
| Piston Count | 6-piston |
| Piston Type | Two-piece heat-insulated pistons without dust boots |
| Piston Diameter | 30 mm × 2 / 34 mm × 2 / 38 mm × 2 |
| Caliper Dimensions | L 382 mm × W 160 mm × H 92 mm |
| Total Piston Area | 55.0 cm² per caliper, all pistons combined |
| Manufacturing Process | Monoblock forged aluminum body |
| Net Weight | 3.25 kg per caliper, without pads |
| Surface Finish | Nickel-plated |
| Recommended Wheel Size | 18 in or larger |
| Recommended Rotor Size | Ø355–405 mm × 32 mm-34 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 101 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
The EMB6 is a large six-piston caliper built as a single forged piece, with material machined out where it isn't structurally needed — lighter than a bolted two-piece body, but stiffer. The external two-piece heat-dissipating pistons keep fluid temperature in check and pair well with high-carbon or carbon-ceramic rotors, while high-temp seals hold up under repeated heat cycling.
- A monobloc forged body flexes less under load than a multi-piece caliper, so pedal input translates into clamping force instead of getting absorbed by caliper flex — the pedal feels firmer and more direct.
- Six pistons spread 55 cm² of clamping area across the pad, evening out pressure and giving more linear, predictable pedal response than a smaller factory caliper.
- The 405mm front and 370mm rear rotors add rotor mass and surface area, which means more heat capacity and better resistance to fade on repeated hard stops.
- The kit was built to clear the X5's factory 20-inch wheels using a vehicle-specific bracket for correct radial-mount geometry — no spacers required.
Installation Gallery
FAQ
What size wheels are required for this TTSPORT EMB6 kit on the BMW X5?
What's included in the front brake upgrade?
What did the rear brakes get?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
