Volkswagen Weilange Big Brake Kit Upgrade / TTSPORT Slim SL6

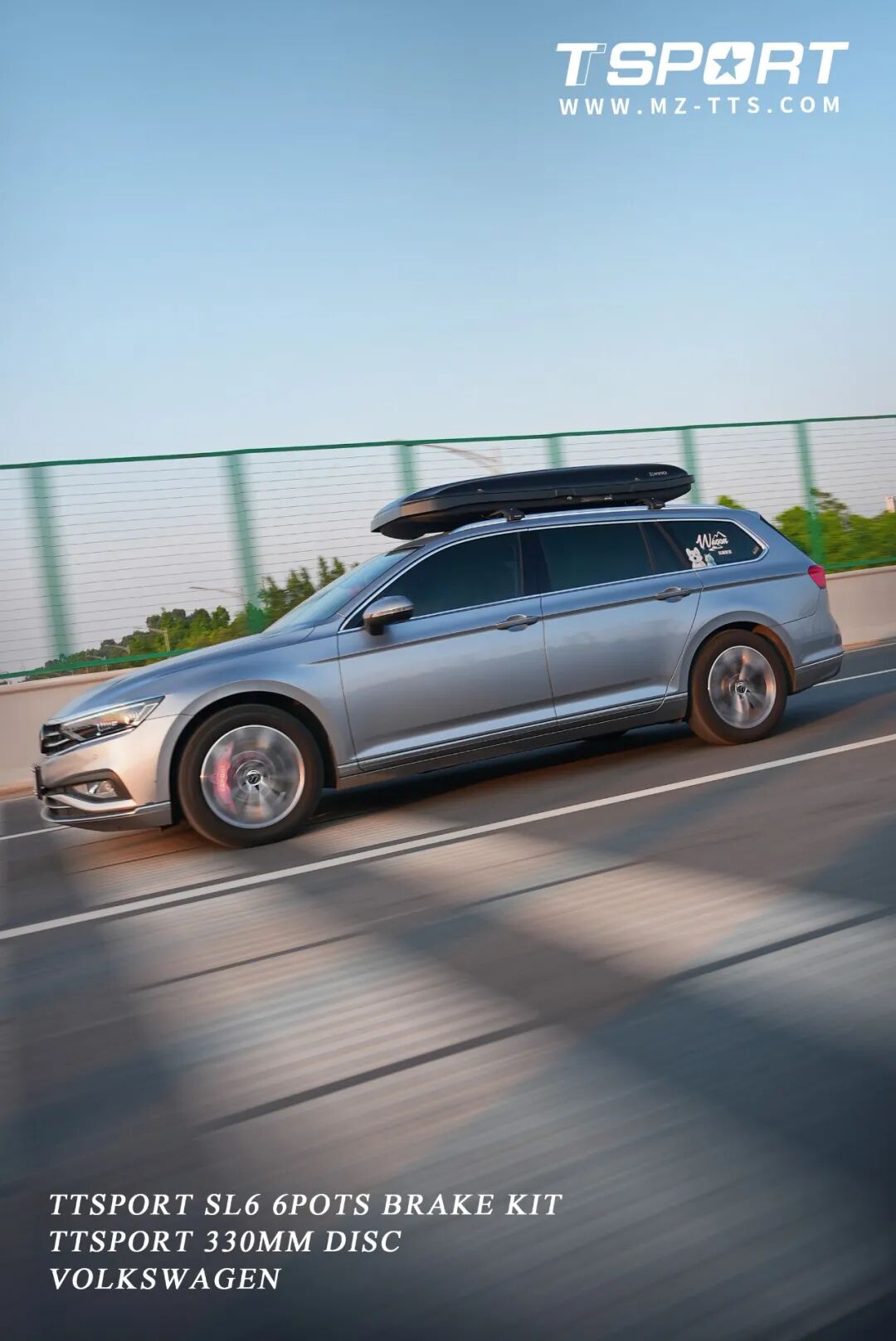

Wagon owners tend to love their cars for the way they drive, and this Volkswagen Weilange's owner wanted more pedal confidence without giving up the factory look. The catch with most big brake upgrades is that a larger caliper usually forces a wheel change or a flange spacer to clear the spokes. This owner wanted neither — just a real jump in stopping power behind the stock 17-inch wheels. The fix was a TTSPORT Slim Series SL6 six-piston front kit, built specifically to fit inside 17-18-inch OEM wheels with no spacer required.
The Weilange's factory calipers left the pedal feeling soft under repeated hard stops — common on wagons carrying extra load and cargo weight. A six-piston fixed caliper and larger rotor address that directly by adding clamping force and heat capacity, without touching the car's wheel fitment.
The SL6 caliper's slim profile is purpose-built for this scenario: it's a direct-fit six-piston kit designed around the geometry of common 17-18-inch OEM wheels, so there's no need to source a flange or upsize the rims.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | Volkswagen Weilange wagon, factory 17-inch wheels |
| Front caliper | TTSPORT SL6 six-piston fixed caliper |
| Front rotor | TTSPORT 330mm high-carbon rotor |
| Bracket | Custom vehicle-specific caliper bracket |
| Pads / lines | TTSPORT performance brake pads, TTSPORT stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts and fasteners |
The SL6 caliper used in this build is a catalog product with a published spec sheet — reproduced below exactly as issued.
| Brake Caliper | |
|---|---|
| Series | Slim Series |
| Model / Application | SL6 |
| Axle Position | Front |
| Piston Count | 6-piston |
| Piston Type | One-piece heat-insulated pistons |
| Piston Diameter | 28 mm × 2 / 30 mm × 2 / 36 mm × 2 |
| Caliper Dimensions | L 350 mm × W 135 mm × H 120 mm |
| Total Piston Area | 46.8 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 3.60 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 17 in or larger |
| Recommended Rotor Size | Ø330–355 mm × 28 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 82 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
The gains here come from basic mechanics, not marketing. A forged, two-piece SL6 caliper body with reinforcing ribs resists the flex that a stock sliding caliper suffers under hard braking — less flex means less pedal travel before the pads actually bite. The progressive six-piston layout (two 28mm, two 30mm, two 36mm pistons) is set up to give a linear, easy-to-modulate initial bite that firms up as pedal pressure increases, rather than an abrupt on/off feel. Moving to a 330mm rotor also adds swept area and thermal mass over the factory disc, so the system sheds heat better on repeated stops — useful on a wagon that's often loaded down with cargo or passengers.
- Direct fit behind the factory 17-inch wheel — no spacer or wheel swap needed
- Forged six-piston caliper with reinforcing ribs for a firmer, more consistent pedal
- 330mm high-carbon rotor adds swept area and heat capacity over the factory disc
- Complete kit: bracket, pads, stainless lines, fluid and hardware included
Installation Gallery
Frequently Asked Questions
Does the TTSPORT SL6 kit require a wheel change or spacers on the Volkswagen Weilange?
What's included in this Weilange big brake kit install?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
