BMW M4 (G82) Big Brake Kit Upgrade / TTSPORT Evolution EB8 & EP4S
The BMW M4 (G82) leaves the factory with an M Compound six-piston front / single-piston rear brake system that handles daily driving fine, but track sessions expose the gap between 530 horsepower and the stock brakes' heat capacity. To close that gap, this M4 was fitted with a TTSPORT Evolution EB8 eight-piston front and EP4S rear big brake kit paired with carbon-ceramic rotors — more piston area, more clamping surface, and a rotor material built to shrug off repeated hard stops.
The build swaps both axles: TTSPORT's forged Evolution EB8 caliper up front and the EPB-compatible EP4S caliper out back, riding on 405mm and 380mm carbon-ceramic rotors respectively. The goal wasn't just more bite — it was consistent pedal feel lap after lap.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | BMW M4 (G82) |
| Front caliper | TTSPORT Evolution EB8 forged eight-piston monobloc caliper |
| Front rotor | 405mm carbon-ceramic rotor |
| Rear caliper | TTSPORT Evolution EP4S forged four-piston caliper with integrated EPB actuator |
| Rear rotor | 380mm carbon-ceramic rotor |
| Bracket | Custom vehicle-specific caliper brackets, front and rear |
| Pads / lines | High-performance ceramic brake pads, TTSPORT stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts, and fixing hardware |
Below are the official TTSPORT spec sheets for the two calipers used in this build.
| Brake Caliper | |
|---|---|
| Series | Evolution Series |
| Model / Application | EB8 |
| Axle Position | Front |
| Piston Count | 8-piston |
| Piston Type | Two-piece heat-insulated pistons with dust boots |
| Piston Diameter | 28 mm × 4 / 32 mm × 4 |
| Caliper Dimensions | L 349 mm × W 166 mm × H 98 mm |
| Total Piston Area | 56.8 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 4.95 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 19 in or larger |
| Recommended Rotor Size | Ø380–405 mm × 34 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 107 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
| Brake Caliper | |
|---|---|
| Series | Evolution Series |
| Model / Application | EP4S |
| Axle Position | Rear |
| Piston Count | 4 hydraulic pistons + 1 for EPB actuator |
| Piston Type | 2-piece heat-insulated pistons with dust boots + EPB actuator |
| Piston Diameter | 28 mm × 4 / 27 mm × 1 |
| Caliper Dimensions | L 278 mm × W 202 mm × H 93 mm |
| Total Piston Area | 30.4 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 4.50 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 18 in or larger |
| Recommended Rotor Size | Ø345–380 mm × 28 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 97 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
The kit ships as a complete front-and-rear system: calipers, vehicle-specific brackets, ceramic pads, TTSPORT stainless lines, and the fluid and hardware needed to bolt it up without any guesswork on fitment.
Why It Works
- The EB8's eight-piston, two-piece forged aluminum body spreads clamping force across a larger pad area than the stock six-piston caliper, which reduces flex under hard braking and keeps the pedal feeling linear instead of mushy.
- Two-piece, heat-insulated pistons with dust boots limit heat transfer into the brake fluid, which is one of the main causes of a soft, fading pedal after repeated hard stops.
- Carbon-ceramic rotors run roughly 60% of the weight of a same-size cast-iron disc, cutting unsprung and rotating mass while resisting the thermal fade and corrosion that eventually degrade steel rotors.
- The EP4S keeps the factory electronic parking brake intact by pairing four service-brake pistons with a dedicated single-piston EPB actuator, so the rear axle gains stopping power without losing the OEM parking brake function.
- Vehicle-specific brackets and radial-mount calipers are sized to clear factory wheels at the recommended wheel sizes, so there's no spacer needed to make the bigger rotors and calipers fit.

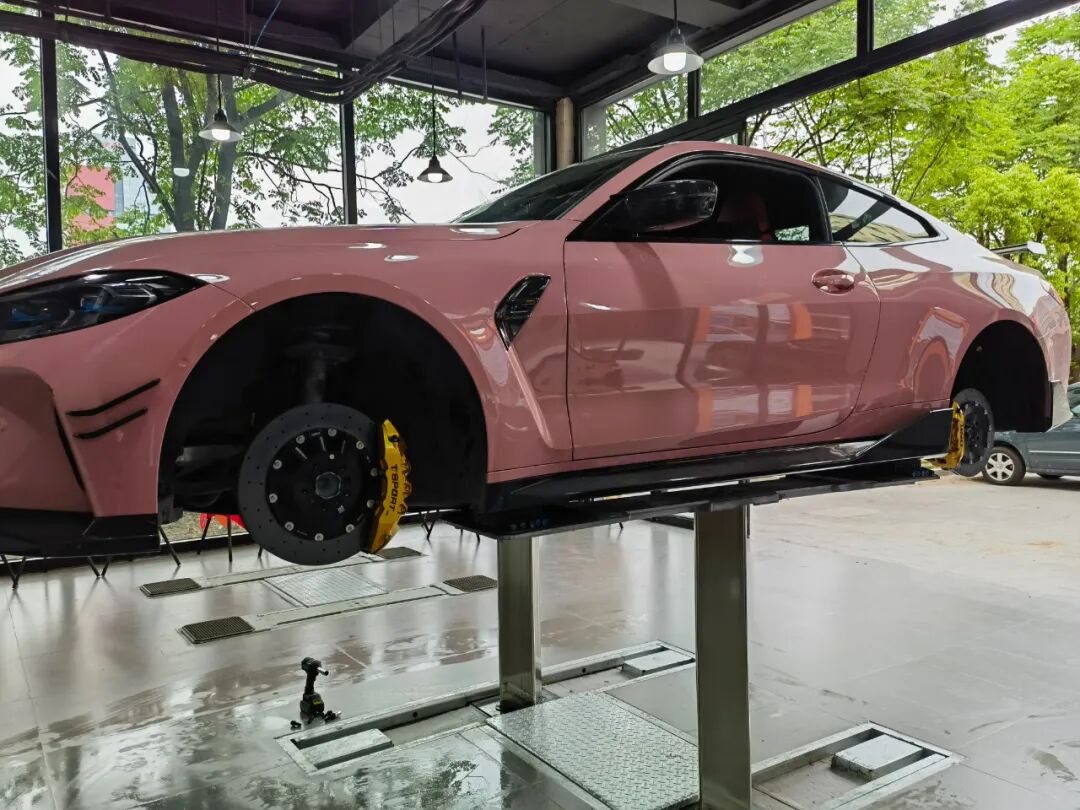

Installation Gallery
Does the TTSPORT EP4S rear caliper keep the electronic parking brake working?
What rotor sizes were used on this BMW M4 G82 build?
What is the minimum wheel size for this front and rear kit combo?
