BAW BJ212 T01 Big Brake Kit Upgrade / TTSPORT Classic 5440
The Beijing 212 T01 built its reputation on rugged looks, a fair price, and real off-road capability. But the factory brakes never quite kept up — owners consistently describe a soft, low-confidence pedal, especially on mountain roads or loose surfaces where linear, predictable braking matters most. That gap between the truck's off-road ambition and its stopping power is exactly what this upgrade addresses.
This build swaps the stock front binders for the TTSPORT 5440 four-piston caliper kit — a Classic Series setup built for owners who want more braking confidence without giving up their factory wheels or making chassis modifications.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | Beijing 212 T01, 17-inch factory wheels |
| Front caliper | TTSPORT 5440 forged four-piston caliper |
| Front rotor | TTSPORT 330mm high-carbon rotor |
| Bracket | Vehicle-specific caliper mounting bracket |
| Pads / lines | TTSPORT high-performance pads, stainless brake lines |
| Hardware | Brake fluid, mounting bolts, and installation hardware |
Every part shown here — caliper, rotor, bracket, pads, lines, and hardware — is packaged for a direct install using the truck's original mounting points, so there's no fabrication involved.
The TTSPORT 5440 is a two-piece forged-aluminum caliper with four star-profile racing pistons (38mm x2 / 41mm x2), giving roughly 49.1 cm² of combined piston area per side. It's built for street/off-road duty rather than track use, and TTSPORT recommends it behind 17-inch or larger wheels with a 330–345mm x 28mm rotor — right in line with what this 212 T01 build runs.
The full official spec sheet for this caliper is below.
| Brake Caliper | |
|---|---|
| Series | Classic Series |
| Model / Application | 5440 |
| Axle Position | Front |
| Piston Count | 4-piston |
| Piston Type | Star-profile racing pistons without dust boots |
| Piston Diameter | 38 mm × 2 / 41 mm × 2 |
| Caliper Dimensions | L 276 mm × W 138 mm × H 80 mm |
| Total Piston Area | 49.1 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 2.65 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 17 in or larger |
| Recommended Rotor Size | Ø330–345 mm × 28 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 86 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
- The forged-aluminum caliper body is stiffer than a stock stamped-steel unit, so pedal input doesn't get absorbed by caliper flex — force at the pedal translates more directly into clamping force at the rotor.
- Four pistons instead of the stock caliper's setup spread clamping load more evenly across the pad, which improves pad-to-rotor contact and gives a more linear, predictable response as you modulate the pedal on a descent.
- The 330mm high-carbon rotor adds swept area and mass over the factory disc, which means more heat capacity for repeated hard stops on grades — the scenario where the stock brakes reportedly ran out of confidence.
- Because the kit bolts to the 212 T01's original mounting points, it installs behind the stock 17-inch wheels with no spacers and no bodywork changes.

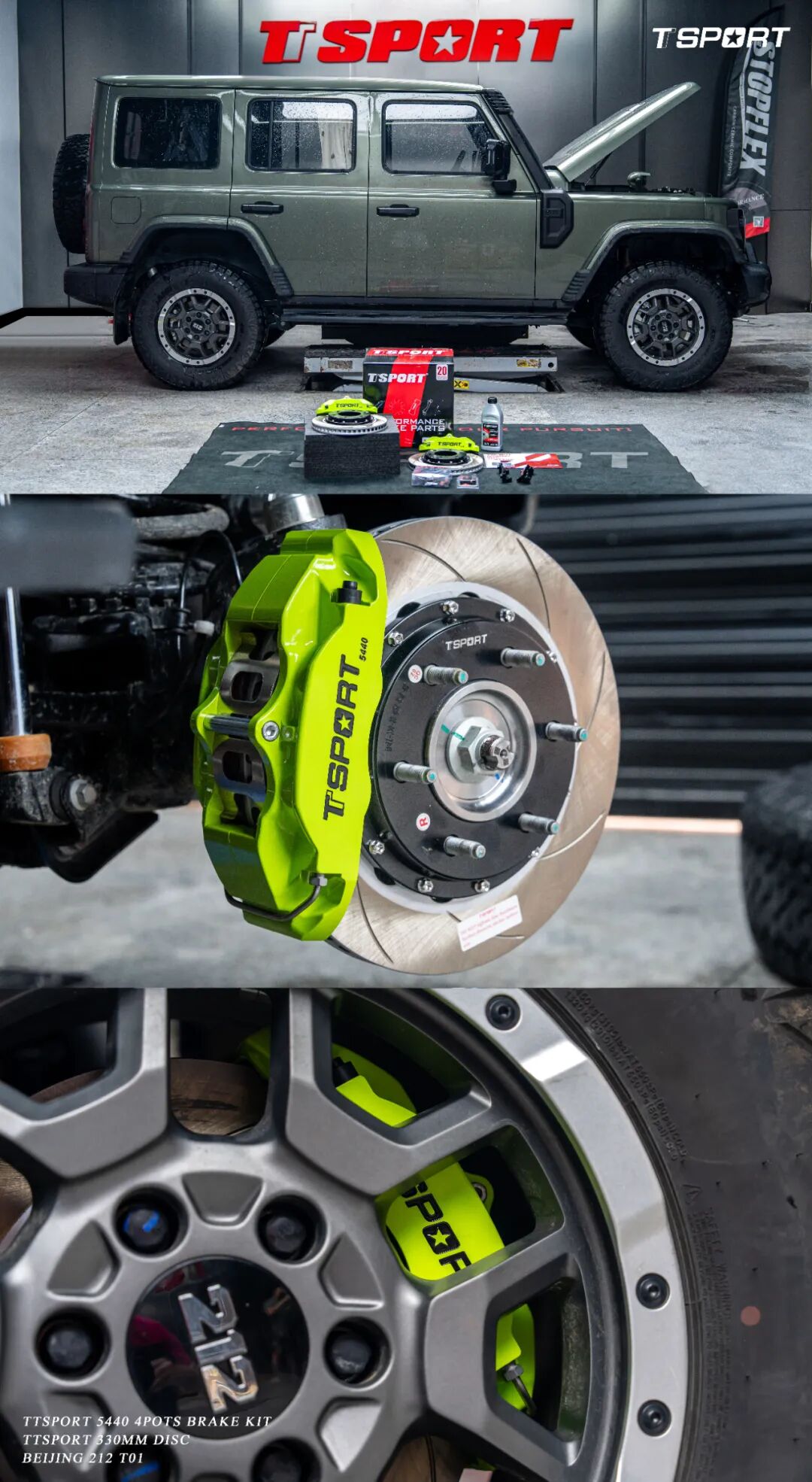

Installation Gallery
FAQ
Does the TTSPORT 5440 kit fit the Beijing 212 T01's stock 17-inch wheels without spacers?
What's included in the TTSPORT 5440 kit for the 212 T01?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
