Volkswagen ID.6 X Big Brake Kit Upgrade / TTSPORT Evolution EB10
EVs carry a lot more curb weight than the gas-powered vehicles they replace — battery packs alone can add several hundred pounds — and that extra mass all has to be scrubbed off by the brakes. On a Volkswagen ID.6 X running fully loaded with a family aboard, the factory brake calipers can start to feel overwhelmed well before you'd expect, especially in repeated stops or hard braking. This build swaps in a TTSPORT Evolution Series EB10 ten-piston big brake kit up front to restore some margin.

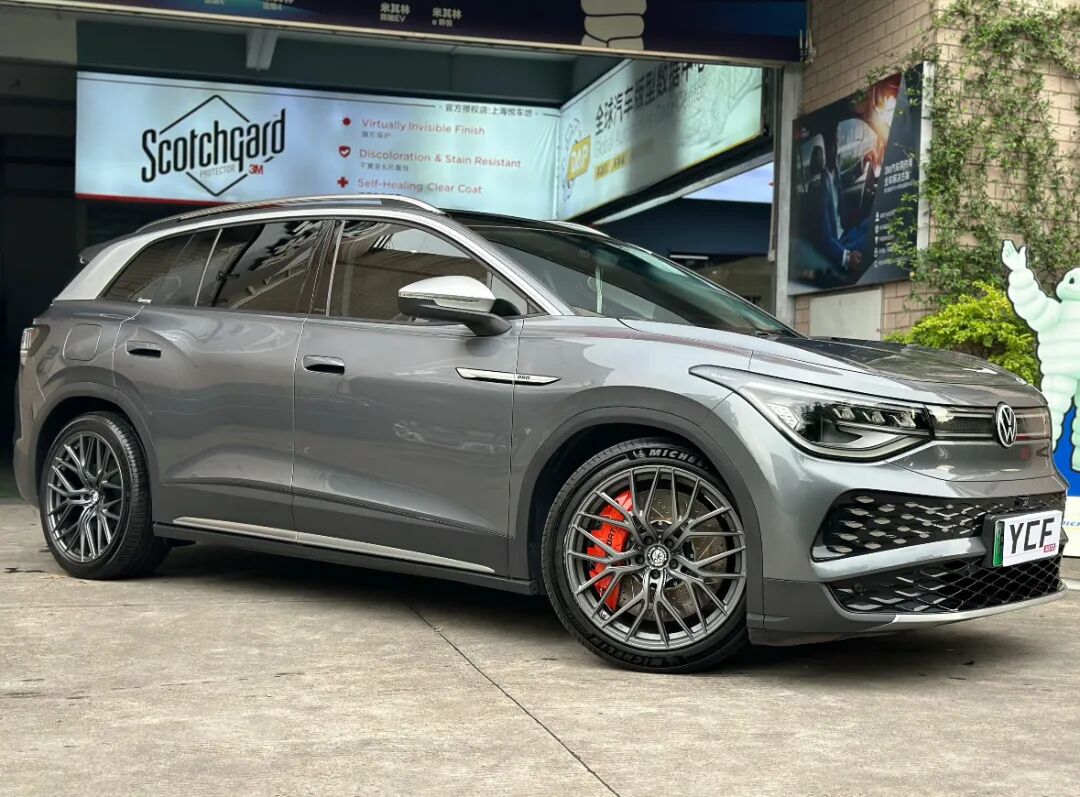

The vehicle here is a Volkswagen ID.6 X on 21-inch wheels — plenty of clearance to work with, which matters when you're stepping up to a ten-piston front caliper and a larger rotor.
Vehicle & Kit Specs
Here's the hardware breakdown for this install, front axle only.
| Item | Specification |
|---|---|
| Vehicle | Volkswagen ID.6 X, 21-inch wheels |
| Front caliper | TTSPORT EB10 forged ten-piston fixed caliper |
| Front rotor | TTSPORT 420mm high-carbon, heat-treated rotor |
| Bracket | Vehicle-specific caliper bracket, custom-machined for the ID.6 X |
| Pads / lines | TTSPORT high-performance street brake pads, stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts, and fixing hardware |
The EB10 caliper used in this kit is TTSPORT's full spec sheet below.
| Brake Caliper | |
|---|---|
| Series | Evolution Series |
| Model / Application | EB10 |
| Axle Position | Front |
| Piston Count | 10-piston |
| Piston Type | Two-piece heat-insulated pistons with dust boots |
| Piston Diameter | 28 mm × 4 / 30 mm × 6 |
| Caliper Dimensions | L 415 mm × W 168 mm × H 129 mm |
| Total Piston Area | 67.0 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 7.50 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 20 in or larger |
| Recommended Rotor Size | Ø420–440 mm × 40 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 108 (inner-rotor-to-inner-spoke distance) |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper bracket |
| Brake Line Fitting Type | OEM-style chassis-side fitting |
Everything needed for the front axle comes together as one kit: the EB10 caliper, the 420mm rotor, the vehicle-specific bracket, pads, stainless lines, fluid, and hardware — no separate sourcing required.
Why It Works
The EB10 is built as a two-piece forged caliper with through-bolted reinforcement bars running along both sides of the body. That structural bracing keeps the caliper from flexing under hard pedal load, which is a big part of why a forged fixed caliper feels more consistent than a stock sliding caliper as brake force spreads more evenly across the pads.
- Asymmetric piston layout balances clamping force across the pad contact area, for a more linear brake feel and better stability under braking.
- Two-piece heat-insulated pistons with dust boots and optimized seals keep pedal feel consistent under sustained hard use, not just on the first stop.
- An open, lightweight caliper design improves heat dissipation, which helps limit thermal fade and keeps braking performance repeatable.
The 420mm high-carbon, heat-treated rotor adds mass and surface area over the stock disc, giving the system more thermal capacity to absorb and shed heat — a straightforward but effective way to fight fade on a heavier EV. TTSPORT notes the EB10 can also be paired with a 440mm rotor depending on wheel size, if a given build has the clearance for it.
Installation Gallery
FAQ
What wheel size does this Volkswagen ID.6 X big brake kit fit under?
How many pistons does the TTSPORT EB10 caliper use?
What rotor size comes with this EB10 install, and can it be upsized?
What else is included in the kit besides the caliper and rotor?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
