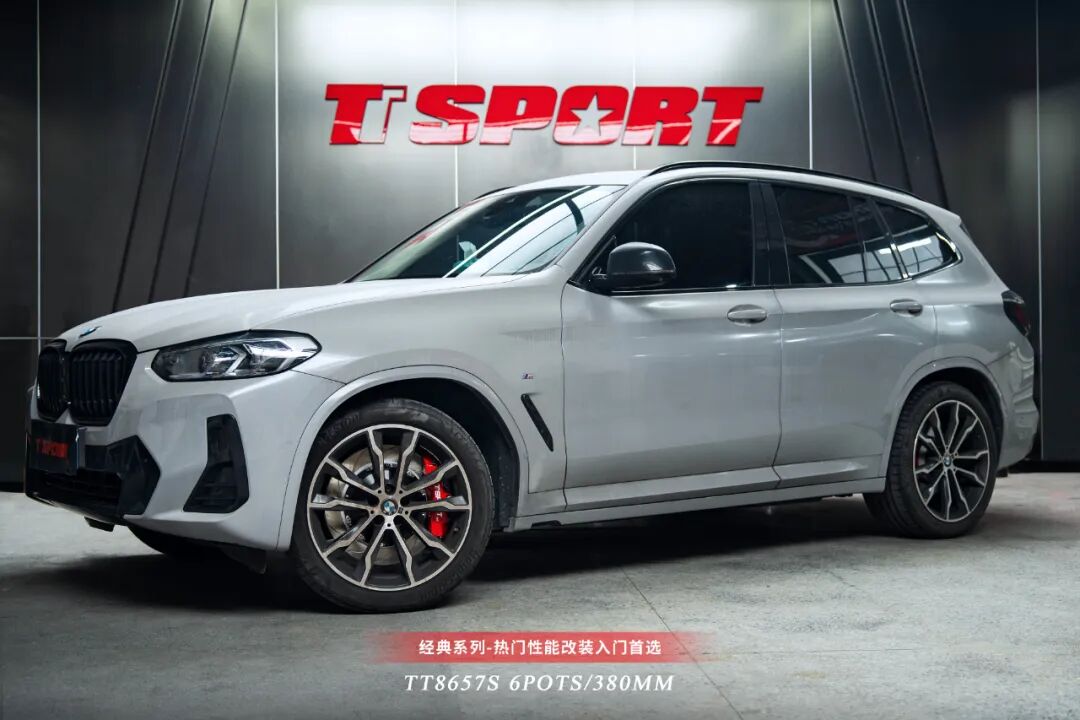

BMW X3 Big Brake Kit Upgrade / TTSPORT Classic 8657S
The BMW X3 has always struck a decent balance between daily comfort and driving feel, but ask around in owner forums long enough and one complaint keeps coming up: an annoying squeak from the front brakes. This case documents how one X3 owner replaced the factory setup with a TTSPORT Classic Series 8657S six-piston front kit to put the noise to rest for good.
Across three generations — E83, F25, and now G01 — the X3 has gotten faster, stiffer, and more tech-heavy. But the factory brake system was tuned mostly around daily commuting, not sustained performance driving, and that tradeoff shows up as noise and inconsistent feel once an owner starts pushing the car harder.
The BMW X3's Known Squeal Problem
Owners describe a "squeak-squeak" sound whenever the brakes are applied at low speed or with light pedal pressure. Many assumed it was just new-pad bedding noise — but the complaint kept showing up across enough X3s that it's clearly a pattern, not a one-off defect.
BMW's factory pad and rotor pairing on the X3 leans toward everyday comfort rather than resisting heat fade or controlling noise at the same time. For an owner who cares about how the car feels underfoot, that squeak undercuts the premium experience the X3 is supposed to deliver.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | BMW X3, 19-inch wheels |
| Front caliper | TTSPORT 8657S forged six-piston caliper (Classic Series) |
| Front rotor | TTSPORT 380mm curved/slotted rotor |
| Bracket | Custom vehicle-specific caliper mounting bracket |
| Pads / lines | TTSPORT high-performance brake pads, TTSPORT stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts, and fixing screws |
The full official spec sheet for the 8657S caliper used in this build is below.
| Brake Caliper | |
|---|---|
| Series | Classic Series |
| Model / Application | 8657S |
| Axle Position | Front |
| Piston Count | 6-piston |
| Piston Type | Two-piece heat-insulated pistons with dust boots |
| Piston Diameter | 30 mm × 2 / 34 mm × 2 / 38 mm × 2 |
| Caliper Dimensions | L 350 mm × W 165 mm × H 92.64 mm |
| Total Piston Area | 55.0 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 4.05 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 18 in or larger |
| Recommended Rotor Size | Ø355–405 mm × 32–34 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 107 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
- Low-noise metallic composite pad material paired with a precision-machined rotor surface removes the pad-rotor resonance that causes the factory squeak.
- The forged two-piece six-piston caliper spreads clamping force more evenly across the pad, giving a light, progressive initial bite that builds into strong, controllable force as pedal travel increases.
- A larger 380mm rotor with a curved/floating design carries more thermal mass and sheds heat faster, which helps maintain consistent pedal feel on mountain roads or repeated hard stops.
- The kit was fitted using the vehicle-specific bracket behind the X3's factory 19-inch wheels, with no mention of wheel spacers needed for clearance.
Installation Gallery
FAQ
What TTSPORT kit was installed on this BMW X3's front axle?
Does the TTSPORT 8657S kit fix the BMW X3's factory brake squeal?
Will the 8657S kit fit behind the BMW X3's stock wheels?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
