BMW X3 Big Brake Kit Upgrade / TTSPORT Slim SL8
BMW's X3 has gone through three generations — E83, F25, G01 — and gotten faster, stiffer, and smarter with every one. The brakes, though, are still tuned the way BMW tunes brakes for a family SUV: quiet pads, a soft pedal, controlled cost, and a setup built for commuting and light weekend trips. That means low friction coefficients, a long, soft pedal stroke, and a brake feel that doesn't inspire much confidence when you're actually pushing the car.
Those settings work fine for daily driving, but for an owner who likes mountain roads, the occasional hard run, or frequent highway passing, the stock brakes turn into the weakest link fast. The power is there, the chassis is planted — the brakes are usually the first thing an owner like this wants to fix.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | BMW X3, factory 20-inch wheels |
| Front caliper | TTSPORT Slim Series SL8 eight-piston forged caliper |
| Front rotor | TTSPORT 405mm cross-drilled rotor |
| Bracket | Custom vehicle-specific caliper bracket |
| Pads / lines | TTSPORT high-performance pads, TTSPORT stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts, and fixing hardware |
This is the full front-axle kit going onto the car: SL8 caliper, 405mm rotor, custom bracket, pads, lines, and the fluid and hardware needed to complete the job. Below is the official spec sheet for the SL8 caliper used in this build.
| Brake Caliper | |
|---|---|
| Series | Slim Series |
| Model / Application | SL8 |
| Axle Position | Front |
| Piston Count | 8-piston |
| Piston Type | One-piece heat-insulated pistons with dust boots |
| Piston Diameter | 28 mm × 4 / 32 mm × 4 |
| Caliper Dimensions | L 391 mm × W 128 mm × H 144 mm |
| Total Piston Area | 56.8 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 5.20 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 19 in or larger |
| Recommended Rotor Size | Ø380–405 mm × 34 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 90 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
Aggressive drivers tend to favor multi-piston calipers because they directly address the two things a factory single-piston or twin-piston setup struggles with: not enough clamping force, and a pedal that feels vague under load. The SL8 is TTSPORT's flangeless, ultra-slim Slim Series design — built with large pistons in a compact body specifically so it fits under stock wheels on larger SUVs.
- Direct fit: the SL8 eight-piston caliper clears the factory 20-inch wheel with no flange adapter, keeping the geometry simple and stable.
- Eight-piston layout: clamping force spreads more evenly across the pad, so response comes on quicker and more consistently.
- Larger pad contact area: more friction surface means more linear braking force and better consistency on long descents or high-speed stops.
- SUV-oriented tuning: firm pedal feel and controllable brake force, meant to stay composed under a hard, high-speed stop.
You don't need to be attacking a mountain road to notice the difference. A quick lane change after a highway pass, precise stop-and-go braking in traffic, a loaded downhill run, or a wet, slick road are all situations where a more predictable, better-supported pedal builds real confidence.

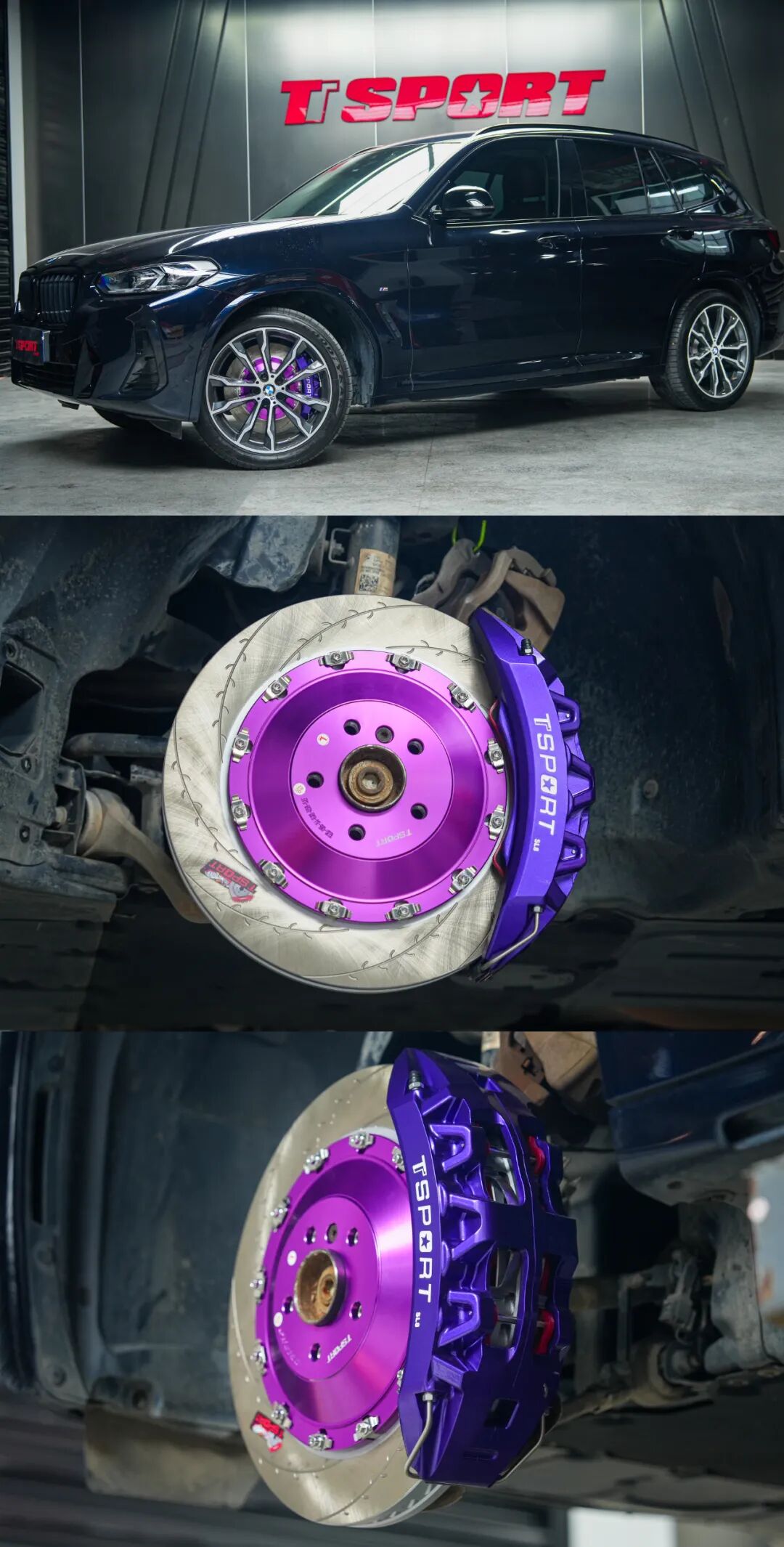

Installation Gallery
What brake kit was installed on this BMW X3?
Does the SL8 caliper fit under the X3's factory wheels?
Is this upgrade only useful for aggressive or track driving?
