BMW 5 Series Big Brake Kit Upgrade / TTSPORT Classic 8657S

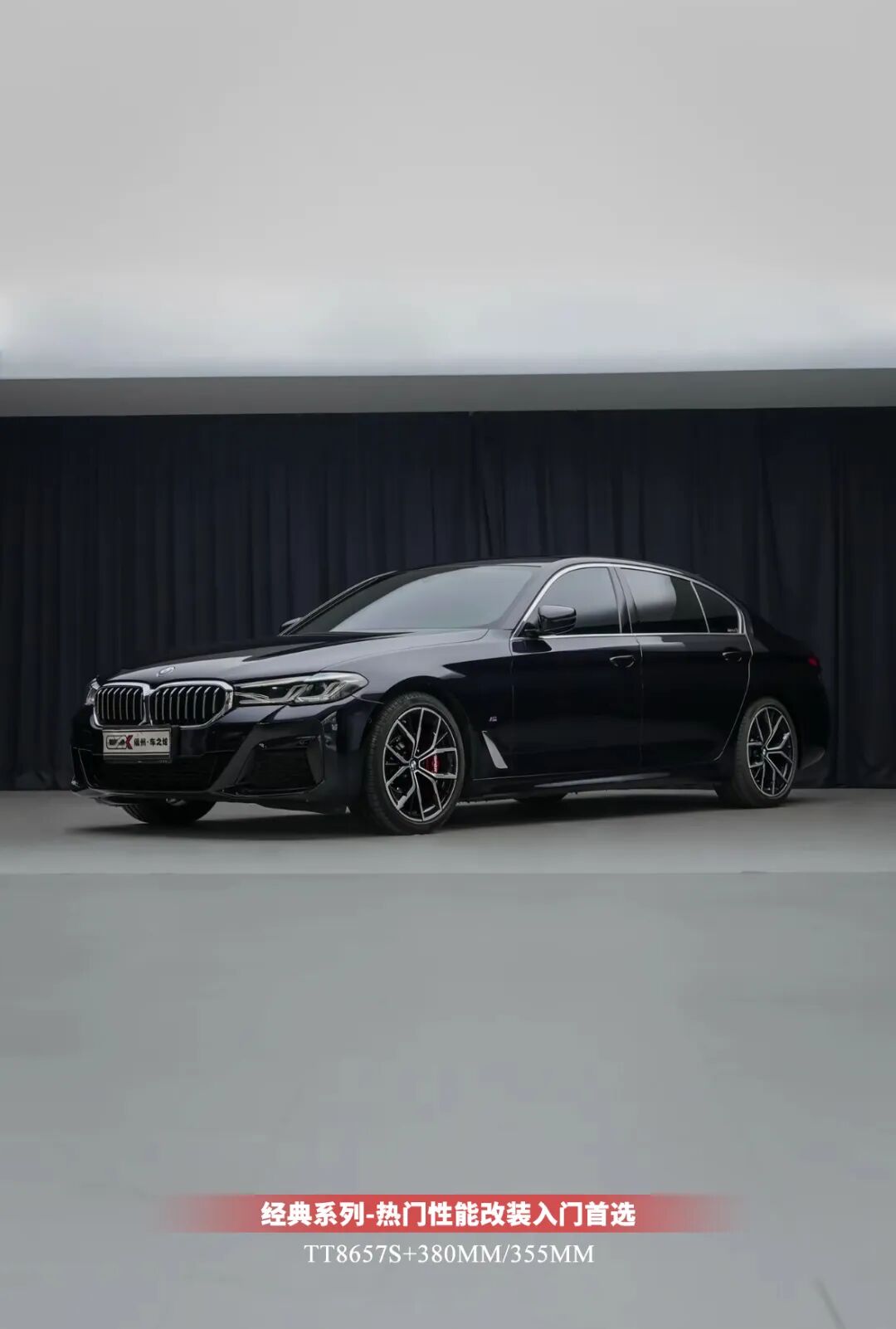

The BMW 5 Series has spent 50-plus years balancing business-class comfort with driver-focused engineering, but stock brakes on a car this size and this fast rarely keep pace with either job. For one 5 Series owner, the fix wasn't a full track-spec system — it was a front TTSPORT 8657S six-piston kit paired with a larger rear rotor, sized to work within the car's factory 19-inch wheels.
The goal here wasn't maximum bite at any cost — it was a setup that stays composed during business-district driving, gives clear pedal feedback when the road opens up, and adds real stopping margin for family trips. TTSPORT's answer was a front-and-rear brake upgrade built around the Classic Series 8657S caliper, chosen specifically for its balance of performance and cost.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | BMW 5 Series, 19-inch factory wheels |
| Front caliper | TTSPORT 8657S forged six-piston caliper (Classic Series) |
| Front rotor | TTSPORT 380mm curved-vane rotor |
| Rear rotor | TTSPORT 355mm curved-vane rotor |
| Bracket | Custom, vehicle-specific caliper bracket |
| Pads / lines | TTSPORT high-performance brake pads, stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts, and fasteners |
The kit is built entirely around a matched front and rear pairing rather than swapping just one axle. That's what keeps the balance right — a bigger front caliper alone can throw off brake bias, so the rear rotor was sized up alongside it.
Below is the full spec sheet for the TTSPORT 8657S caliper used up front on this build.
| Brake Caliper | |
|---|---|
| Series | Classic Series |
| Model / Application | 8657S |
| Axle Position | Front |
| Piston Count | 6-piston |
| Piston Type | Two-piece heat-insulated pistons with dust boots |
| Piston Diameter | 30 mm × 2 / 34 mm × 2 / 38 mm × 2 |
| Caliper Dimensions | L 350 mm × W 165 mm × H 92.64 mm |
| Total Piston Area | 55.0 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 4.05 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 18 in or larger |
| Recommended Rotor Size | Ø355–405 mm × 32–34 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 107 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
- The 8657S is a two-piece forged caliper, not a cast unit — a stiffer body means less flex under clamping load, which shows up at the pedal as a firmer, more predictable feel instead of the vague travel typical of a stock caliper.
- The progressive six-piston layout applies clamping force gradually across the pad rather than all at once, giving a linear, controllable bite instead of an on/off feel.
- Two-piece heat-insulated pistons with dust boots and high-temp seals keep heat from transferring into the brake fluid, which is what actually causes a soft, sinking pedal after repeated hard stops.
- Upsizing both the front (380mm) and rear (355mm) rotors together — instead of just the front — keeps brake bias in check and adds heat capacity at both ends of the car.
- The whole package was sized to work behind the car's factory 19-inch wheels, so this owner didn't need a wheel change to run it.
Installation Gallery
FAQ
What does the TTSPORT kit for this BMW 5 Series include?
Will the kit fit under the BMW 5 Series' stock wheels?
What is the TTSPORT 8657S caliper, and what vehicles is it for?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
