BMW 430i Big Brake Kit Upgrade / TTSPORT Mono EMB6
The BMW 430i is built to feel sharp — tight steering, a smooth inline-four or six under the hood, and a chassis that likes to be pushed. But push it hard enough, on a track day or a spirited backroad run, and the factory brakes start to feel soft and inconsistent. That gap between what the chassis can do and what the stock calipers can hold back is exactly what this 430i owner set out to close with a TTSPORT EMB6 front big brake kit.
The car keeps its 19-inch wheels — no spacers, no wheel swap. The EMB6 caliper and 380mm rotor were sized to work behind the OEM setup while giving the front axle a real jump in clamping force and heat capacity over the stock brakes.
Vehicle & Kit Specs
Here's the exact hardware that went on this 430i's front axle.
| Item | Specification |
|---|---|
| Vehicle | BMW 430i, 19-inch wheels |
| Front caliper | TTSPORT EMB6 forged monobloc six-piston caliper |
| Front rotor | TTSPORT 380mm high-carbon rotor |
| Bracket | Vehicle-specific custom caliper bracket |
| Pads / lines | TTSPORT high-performance brake pads, stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts and fasteners |
The EMB6 used here is TTSPORT's Mono Series caliper — below is the full spec sheet for reference.
| Brake Caliper | |
|---|---|
| Series | Mono Series |
| Model / Application | EMB6 |
| Axle Position | Front |
| Piston Count | 6-piston |
| Piston Type | Two-piece heat-insulated pistons without dust boots |
| Piston Diameter | 30 mm × 2 / 34 mm × 2 / 38 mm × 2 |
| Caliper Dimensions | L 382 mm × W 160 mm × H 92 mm |
| Total Piston Area | 55.0 cm² per caliper, all pistons combined |
| Manufacturing Process | Monoblock forged aluminum body |
| Net Weight | 3.25 kg per caliper, without pads |
| Surface Finish | Nickel-plated |
| Recommended Wheel Size | 18 in or larger |
| Recommended Rotor Size | Ø355–405 mm × 32 mm-34 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 101 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
The EMB6 is built as a one-piece forged body with a machined-out core, which keeps it lighter than a bolted two-piece caliper while adding rigidity. It uses two-piece heat-insulated pistons designed to also work well with carbon-ceramic rotors, and TTSPORT offers the same caliper across 355/380/405mm rotor options depending on wheel clearance — this 430i runs the 380mm rotor.
Why It Works
- Forged rigidity: a monoblock body flexes less under load than a stock floating caliper, so pedal pressure goes into clamping force instead of caliper flex — the pedal feels firmer and more predictable.
- More rotor, more margin: stepping up to a 380mm rotor adds swept area and thermal mass over the factory disc, which means more heat capacity before the system starts to fade under repeated hard stops.
- No compromises on fitment: the caliper and rotor were matched to this 430i's 19-inch wheels using a vehicle-specific bracket, so there's no need for spacers or a wheel change to make it clear the spokes.
- Six pistons instead of the stock count spreads clamping force across a larger pad area, which helps even pad wear and gives more consistent bite as the pads heat up.

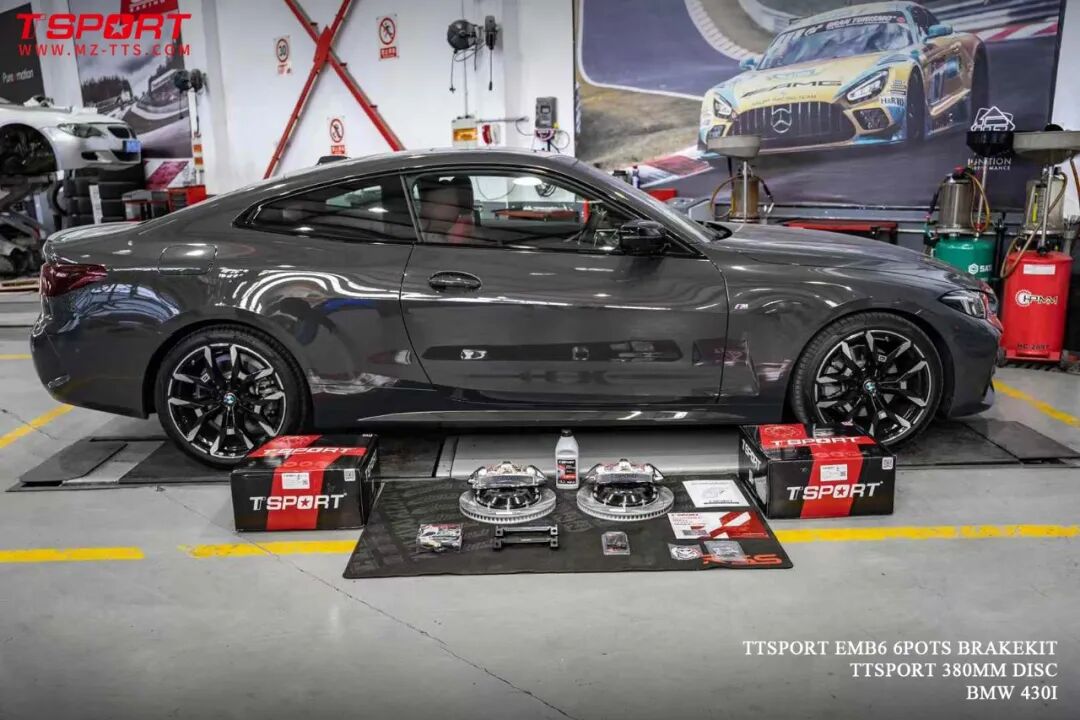

Installation Gallery
Frequently Asked Questions
What wheel size does this BMW 430i big brake kit fit?
Is this a front-only or full four-wheel kit?
What's included with the EMB6 caliper besides the rotor?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
