BMW 3 Series (G20/G28/G21) Big Brake Kit Upgrade / TTSPORT Evolution ES6
The G-generation BMW 3 Series (G20/G28/G21) came with a stiffer chassis and a reworked caliper mounting layout that makes it a much better upgrade platform than the outgoing F30. For an owner chasing real stopping power without giving up the factory wheels, that meant one thing: find a big brake kit that bolts up clean, front and rear alike, with no spacer tricks. This case walks through exactly that swap — a TTSPORT Evolution ES6 six-piston kit installed behind the stock 18-inch OEM wheel.
Wheel matching is usually the first thing that kills a brake upgrade plan — the caliper is too wide, the wheel spoke hits the piston housing, and the owner ends up stuck buying flange spacers or a new wheel set just to make it fit. TTSPORT designed the ES6 caliper specifically to sidestep that problem on the G-chassis 3 Series.
Vehicle & Kit Specs

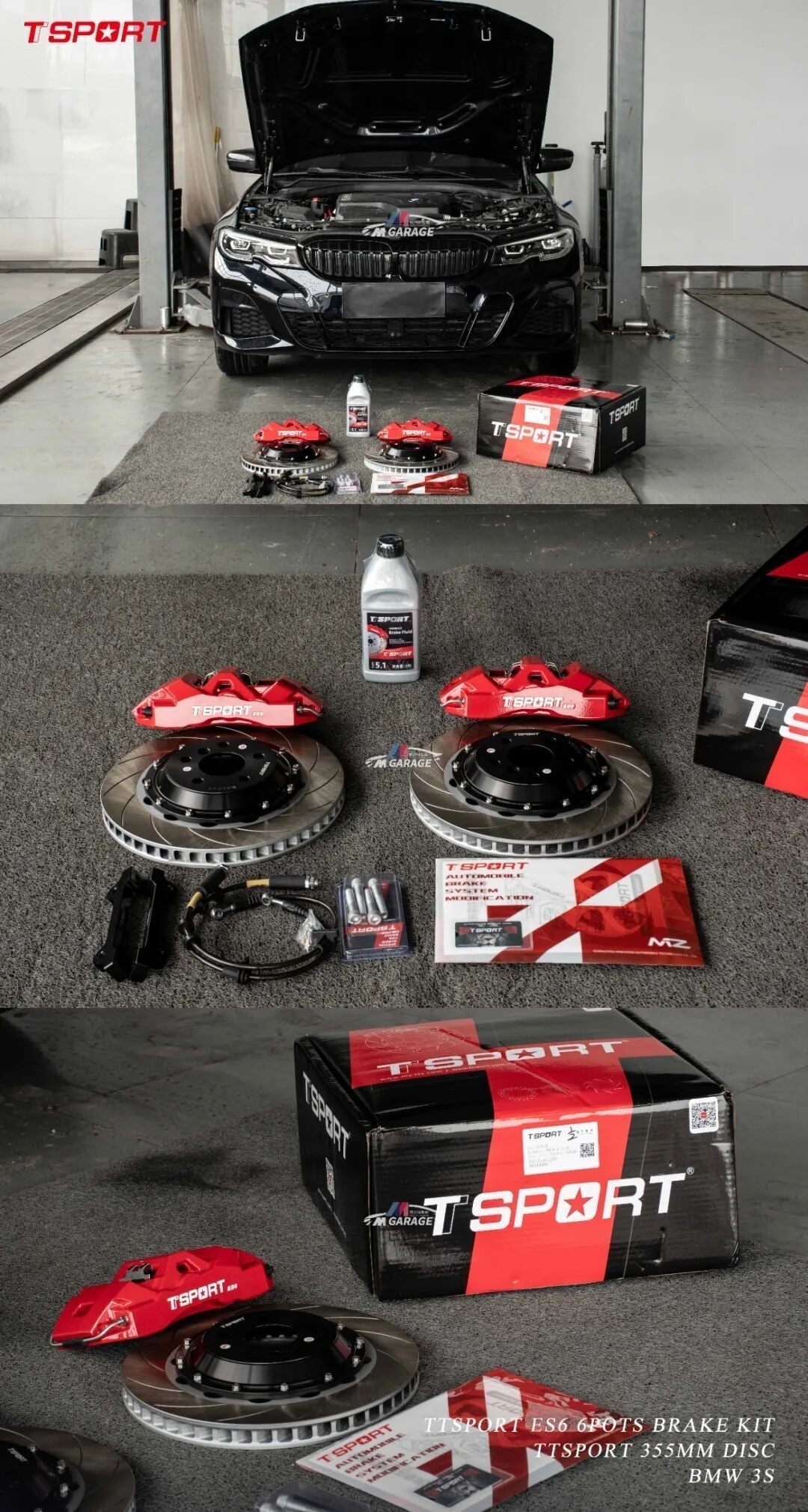

Here's the hardware breakdown for this build:
| Item | Specification |
|---|---|
| Vehicle | BMW 3 Series (G20/G28/G21), factory 18-inch wheels |
| Front caliper | TTSPORT ES6 forged six-piston caliper |
| Front rotor | TTSPORT 355mm high-carbon heat-treated rotor |
| Bracket | Vehicle-specific caliper bracket, direct bolt-up, no spacers |
| Pads / lines | TTSPORT high-performance brake pads, stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts and fasteners |
Below is the official spec sheet for the TTSPORT ES6 caliper used in this build.
| Brake Caliper | |
|---|---|
| Series | Evolution Series |
| Model / Application | ES6 |
| Axle Position | Front |
| Piston Count | 6-piston |
| Piston Type | Two-piece heat-insulated pistons with dust boots |
| Piston Diameter | 27 mm × 2 / 32 mm × 2 / 38 mm × 2 |
| Caliper Dimensions | L 294 mm × W 155 mm × H 84 mm |
| Total Piston Area | 50.2 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 3.95 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 18 in or larger |
| Recommended Rotor Size | Ø355–380 mm × 32 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 99 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
No wheel spacers. The ES6 body clears the factory 18-inch and 19-inch G20/G28/G21 wheels as-is — no flange adapters, no suspension changes, and no compromise on ride geometry.
The bracket also lines up with the factory caliper mounting holes, so there's no drilling and no fabrication involved. Factory ABS and electronic systems stay untouched.
Why It Works
The ES6 caliper body is forged aluminum, built for stiffness under repeated hard stops so the caliper doesn't flex and eat into pedal feel the way a stock caliper can under sustained abuse. The 355mm high-carbon, heat-treated rotor pairs more thermal mass and surface area with the six-piston clamping force, which is what actually shortens stopping distance and keeps pedal response consistent lap after lap or stop after stop.
- Six-piston clamping plus performance pads deliver stronger, more immediate bite for emergency braking.
- Better heat management from the larger rotor means less fade under repeated hard use, so braking stays predictable rather than becoming the limiting factor.
- The ES6's visual presence shows through the factory wheel — no need to size up wheels just to reveal the brakes.
- TTSPORT has spent more than two decades developing high-performance brake systems for German platforms, with track and street testing behind the ES6 design.
Installation Gallery
FAQ
Does the TTSPORT ES6 kit fit the BMW 3 Series G20/G28/G21 without wheel spacers?
What's included in the TTSPORT ES6 big brake kit for this build?
Does the ES6 kit work with the factory caliper mounting points and ABS?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
