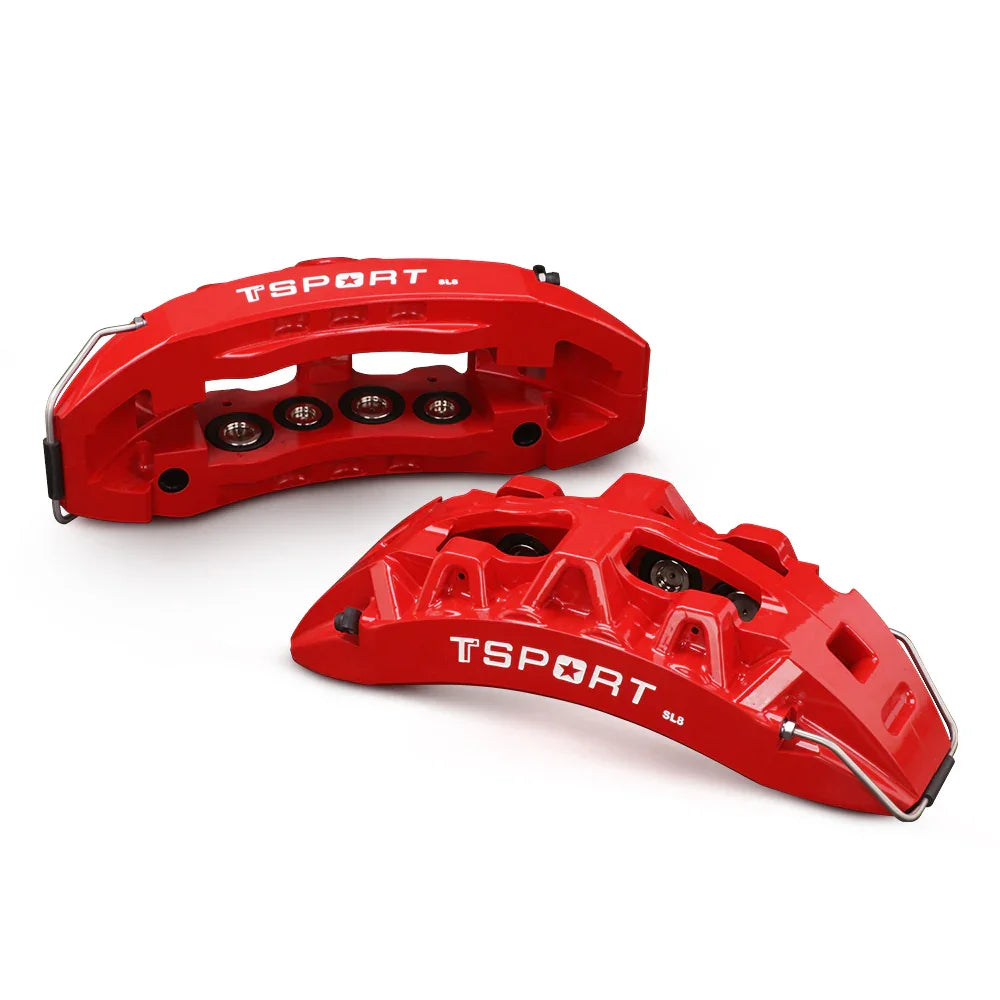

Get a massive brake upgrade without the expense of new wheels. The SL8 brings 8-piston stopping power to your factory setup. We engineered this narrow-body caliper to be a direct, bolt-on fit for over 90% of OEM 19" to 21" wheels, with no spacers required.
The forged aluminum body is incredibly rigid, delivering a firm, confident pedal feel that eliminates the mushiness of stock brakes. The 8-piston design applies pressure more evenly than a 6-piston, providing superior feedback and consistent performance when you need it most. After a full year of real-world testing, the SL8 is the proven, hassle-free solution for serious stopping power.
Caliper | ||
---|---|---|
Series | Slim Series | |
Model | SL8 | |
Mounting Position | Front | |
Number of Pistons | 8 | |
Piston Type | Two-Piece Vented Pistons with Dust Boots | |
Piston Diameter | 28 mm × 4, 32 mm × 4 | |
Dimensions | L 391 × W 128 × H 144 mm | |
Total Piston Area | 56.77 cm² | |
Manufacturing Process | Two-Piece Forged | |
Net Weight | 5.20 kg (single caliper without pad) | |
Surface Finish | High-Temperature Gloss Coating | |
Recommended Wheel Size | 19″ or larger | |
Recommended Rotor Size | ⌀380–405 mm / Thickness 34 mm | |
Brake Rotor | ||
Material | Heat-Treated High Carbon Steel | Carbon-Ceramic Composite |
Dimensions | ⌀380 / 405 mm × 34 mm | ⌀380 / 405 mm × 34 mm |
Construction | 2-Piece Rotor | 2-Piece Rotor |
Vented / Solid | Vented | Vented |
Floating / Fixed | Floating | Floating |
Directional | Yes | Yes |

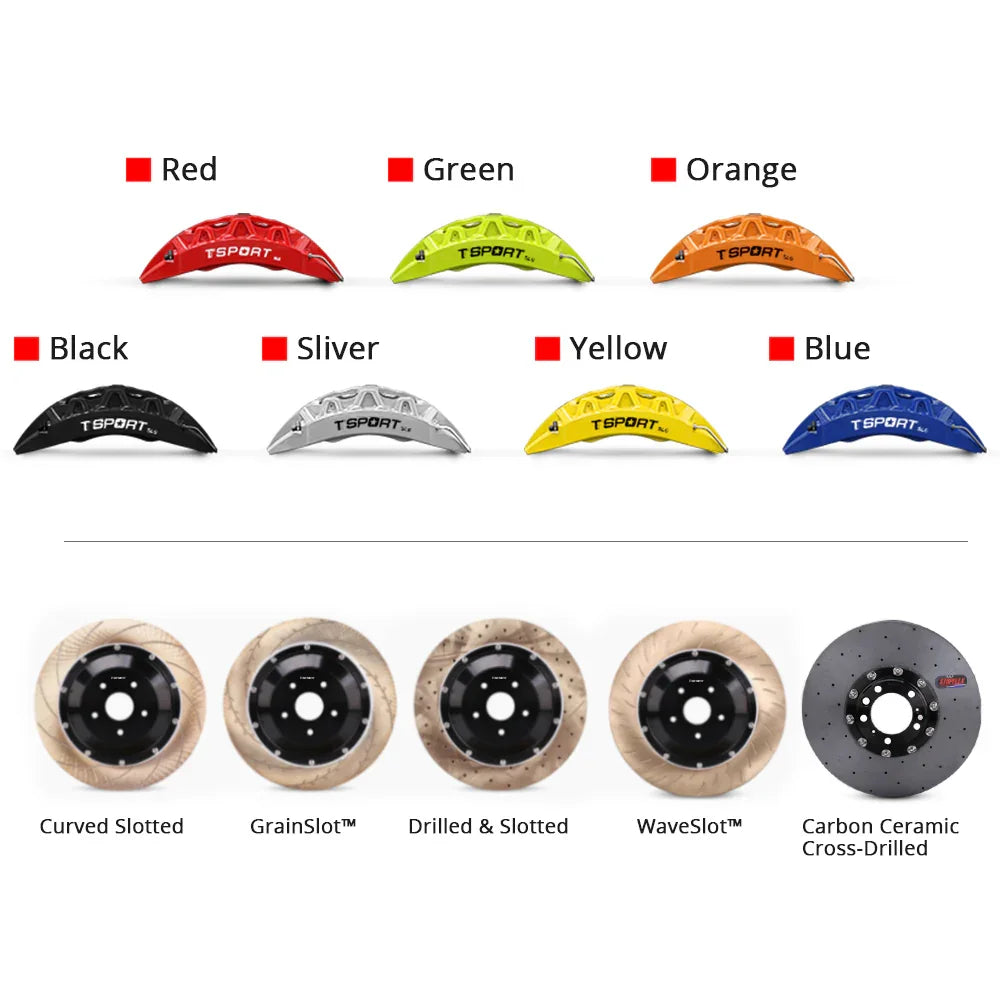

Design Options | Curved Slotted / GrainSlot / WaveSlot / Drilled & Slotted | Cross Drilled |
Brake Pad | ||
Compatible Rotor Material | Steel Rotors | Carbon-Ceramic Rotors |
Operating Temperature | 0–550°C | 0–700°C |
Coefficient of Friction | 0.40–0.46 μ | 0.46 μ ± 0.15 |
Brake Hose | ||
Construction | 3-Layer Reinforced | |
Material | Inner: PTFE (Teflon); Middle: SUS304 Braided Stainless Steel; Outer: PVC Sheath | |
Mounting Hardware | ||
Rotor Hat | CNC-Machined Aerospace-Grade Aluminum Alloy | |
Caliper Bracket | CNC-Machined Carbon Steel |
You’re here because you’re passionate about your ride, and so are we. We want your TTSPORT brake upgrade to be a total win. Here’s some straight talk to make sure everything goes smoothly, from fitment to bedding in.
Look, we know you get it. Your brake kit is custom-made for your specific car. That means once it's built, it's yours. We can only accept returns if there’s a genuine quality defect from our side.
Sometimes, aftermarket wheels can be tricky. Depending on the design, you might need spacers for clearance. We’ll do our best to help you figure it out, but issues related to wheel spacers don't qualify for a return.
To get this right the first time, we need your help. Before you order, please give us the following info:
We’ll likely ask you to confirm some measurements and send a few photos of your wheels. Please double-check everything you send us. TTSPORT isn't responsible for fitment issues if the specs you provided were off.
We check every single part before it leaves our shop. When your kit arrives, give it a good look-over. If you spot any potential quality issues, let us know within 24 hours.
This is key to awesome performance. Don't skip it.
We build our kits to last, and we stand by our work. Here’s the breakdown:
Recommended Service Intervals:
