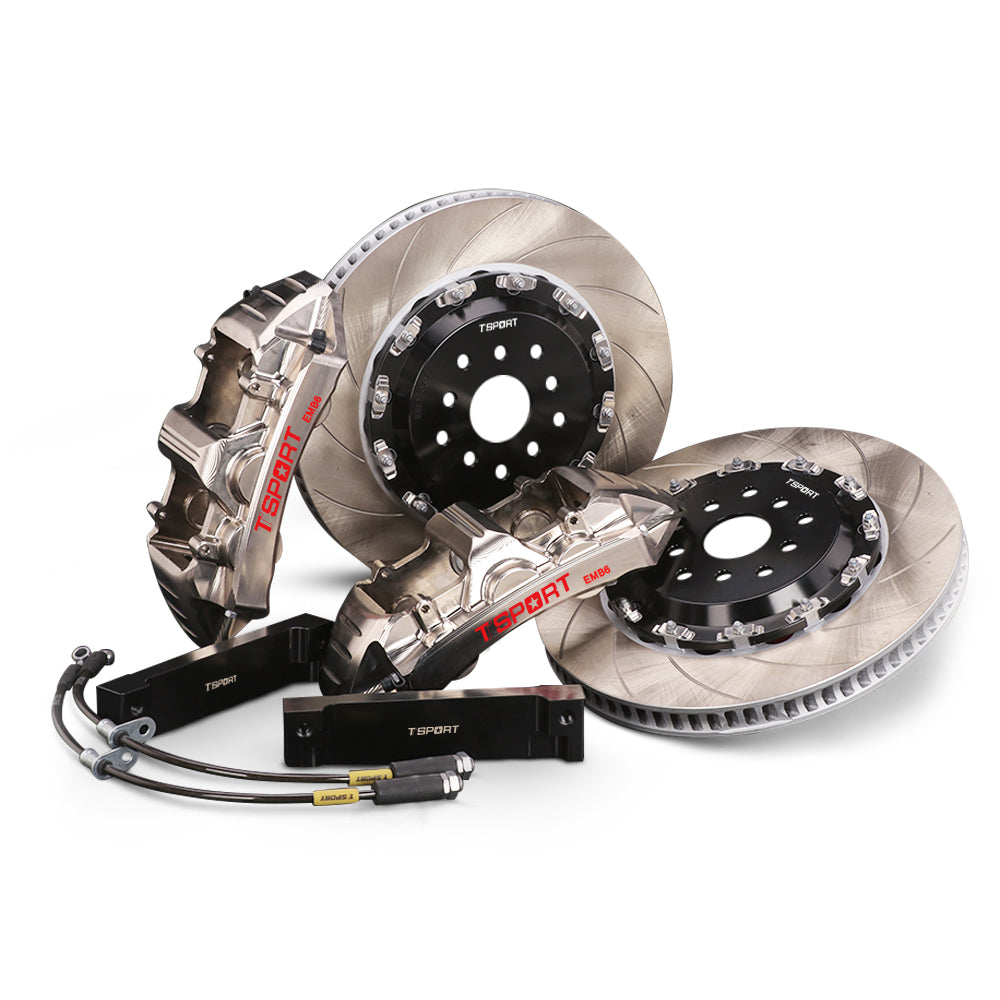

For the driver who refuses to compromise, we present the flagship EMB6. This is the pinnacle of our engineering, designed for one purpose: to deliver the most powerful, precise, and consistent braking performance possible. The EMB6 is forged from a single piece of aluminum—a true monoblock design that provides unmatched rigidity and sheds critical unsprung weight.
The result is a rock-solid pedal feel and an instant, confidence-inspiring response that you won't find in lesser two-piece calipers. We equipped the EMB6 with track-focused hardware, including two-piece ventilated pistons and high-temperature seals, to deliver relentless, fade-free stopping power lap after lap. When you demand the absolute best for your high-performance vehicle, the EMB6 is the only choice.
Caliper | ||
---|---|---|
Series | Mono Series | |
Model | EMB6 | |
Mounting Position | Front | |
Number of Pistons | 6 | |
Piston Type | Two-Piece Vented Pistons without Dust Boots | |
Piston Diameter | 30 mm × 2, 34 mm × 2, 38 mm × 2 | |
Dimensions | L 382 × W 160 × H 92 mm | |
Total Piston Area | 54.95 cm² | |
Manufacturing Process | Monoblock Forged | |
Net Weight | 3.25 kg (single caliper without pad) | |
Surface Finish | Chrome Plated | |
Recommended Wheel Size | 18″ or larger | |
Recommended Rotor Size | ⌀355–405 mm / Thickness 32–34 mm | |
Brake Rotor | ||
Material | Heat-Treated High Carbon Steel | Carbon-Ceramic Composite |
Dimensions | ⌀355×32, ⌀380/405×34 mm | ⌀355×32, ⌀380/405×34 mm |
Construction | 2-Piece Floating Rotor | 2-Piece Floating Rotor |
Vented / Solid | Vented | Vented |
Directional | Yes | Yes |
Design Options | Curved Slotted / GrainSlot / WaveSlot / Drilled & Slotted | Cross Drilled |
Brake Pad | ||
Compatible Rotor Material | Steel Rotors | Carbon-Ceramic Rotors |
Operating Temperature | 0–550°C | 0–700°C |
Coefficient of Friction | 0.40–0.46 μ | 0.46 μ ± 0.15 |
Brake Hose | ||
Construction | 3-Layer Reinforced | |
Material | Inner: PTFE (Teflon); Middle: SUS304 Braided Stainless Steel; Outer: PVC Sheath | |
Mounting Hardware | ||
Rotor Hat | CNC-Machined Aerospace-Grade Aluminum Alloy | |
Caliper Bracket | CNC-Machined Carbon Steel |
You’re here because you’re passionate about your ride, and so are we. We want your TTSPORT brake upgrade to be a total win. Here’s some straight talk to make sure everything goes smoothly, from fitment to bedding in.
Look, we know you get it. Your brake kit is custom-made for your specific car. That means once it's built, it's yours. We can only accept returns if there’s a genuine quality defect from our side.
Sometimes, aftermarket wheels can be tricky. Depending on the design, you might need spacers for clearance. We’ll do our best to help you figure it out, but issues related to wheel spacers don't qualify for a return.
To get this right the first time, we need your help. Before you order, please give us the following info:
We’ll likely ask you to confirm some measurements and send a few photos of your wheels. Please double-check everything you send us. TTSPORT isn't responsible for fitment issues if the specs you provided were off.
We check every single part before it leaves our shop. When your kit arrives, give it a good look-over. If you spot any potential quality issues, let us know within 24 hours.
This is key to awesome performance. Don't skip it.
We build our kits to last, and we stand by our work. Here’s the breakdown:
Recommended Service Intervals:
