Zeekr X Big Brake Kit Upgrade / TTSPORT Classic 7640

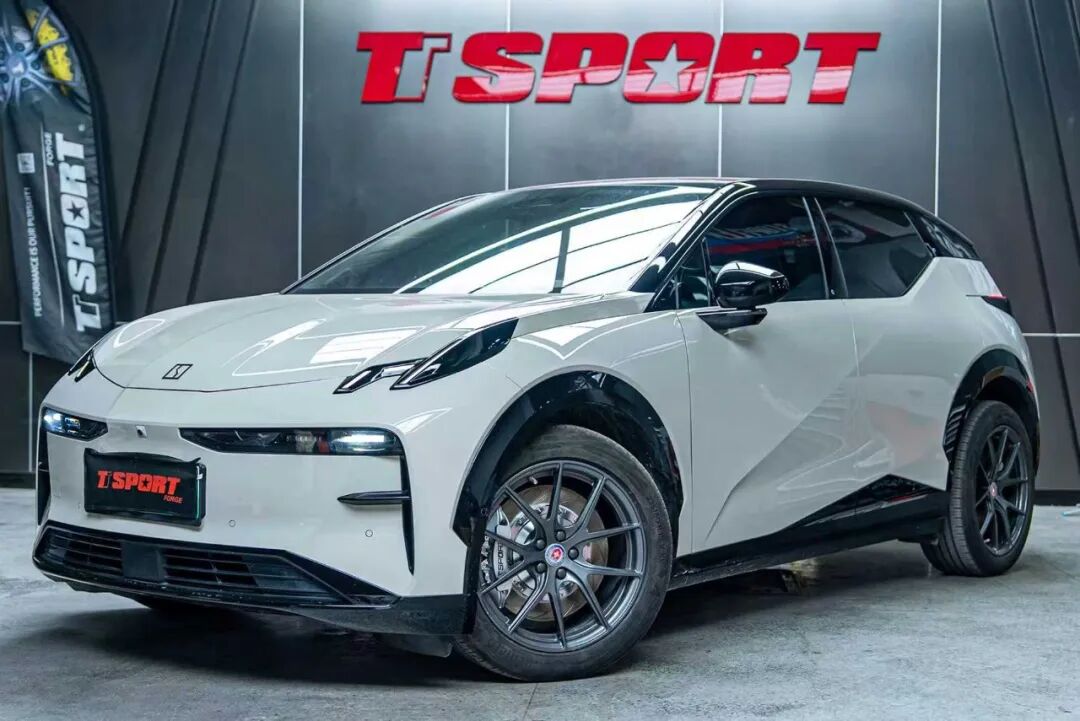

The Zeekr X is built on the SEA architecture and pitched as a compact luxury EV with genuine performance intent — the dual-motor version puts out 315kW and gets to 60 mph in the low 3-second range. That kind of thrust exposes a common EV problem fast: the factory brakes are sized for daily commuting, not for repeated hard stops at speed or a run of switchbacks. This case documents a front-axle upgrade to a TTSPORT 7640 six-piston big brake kit on a 19-inch-wheeled Zeekr X, aimed at giving the car a pedal that matches how quickly it accelerates.
On regular streets the stock brakes did their job. Once the owner started driving harder — mountain roads, higher-speed stops — the factory setup's limits showed up as fade and a pedal that felt less predictable under repeated braking. The fix was a straightforward hardware swap on the front axle rather than any electronics tuning.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | Zeekr X, 19-inch factory wheels |
| Front caliper | TTSPORT 7640 forged six-piston caliper |
| Front rotor | TTSPORT 380mm high-carbon rotor |
| Bracket | Custom, vehicle-specific caliper bracket |
| Pads / lines | TTSPORT performance pads, stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts and fasteners |
The caliper used in this build is TTSPORT's Classic Series 7640. Its full spec sheet is below for reference.
| Brake Caliper | |
|---|---|
| Series | Classic Series |
| Model / Application | 7640 |
| Axle Position | Front |
| Piston Count | 6-piston |
| Piston Type | Two-piece heat-insulated pistons with dust boots |
| Piston Diameter | 27 mm × 2 / 33 mm × 2 / 38 mm × 2 |
| Caliper Dimensions | L 353 mm × W 162 mm × H 92 mm |
| Total Piston Area | 51.2 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 3.70 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 18 in or larger |
| Recommended Rotor Size | Ø355–380 mm × 32 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 98 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
The kit shown here is a complete front-axle package — caliper, rotor, custom bracket, pads, stainless lines, fluid, and the bolts needed to mount it — rather than a caliper sold on its own.
Why It Works
- The 7640's two-piece forged aluminum body resists flex under hard braking, so clamping force goes into the rotor instead of into caliper distortion — that's what makes the pedal feel more direct and predictable.
- Six pistons across three diameters (27/33/38mm) spread clamping force more evenly across the pad, and the larger 380mm rotor gives the system more mass to absorb heat, which helps resist fade during repeated hard stops.
- The vehicle-specific bracket and hardware are sized for the Zeekr X's factory 19-inch wheels, matching TTSPORT's published 18-inch-and-up wheel recommendation for the 7640.
The owner's takeaway lines up with the mechanics: initial bite is more responsive, mid-to-late pedal travel builds force in a linear, controllable way, and there's no abrupt nose-dive under a hard stop. For a car that already accelerates like the Zeekr X, that predictability matters as much as outright stopping power.
Installation Gallery
FAQ
What brake upgrade was installed on the Zeekr X in this case?
Does the TTSPORT 7640 kit fit behind the Zeekr X's stock wheels?
What is the piston configuration of the TTSPORT 7640 caliper?
