Zeekr X Big Brake Kit Upgrade / TTSPORT Evolution EB8

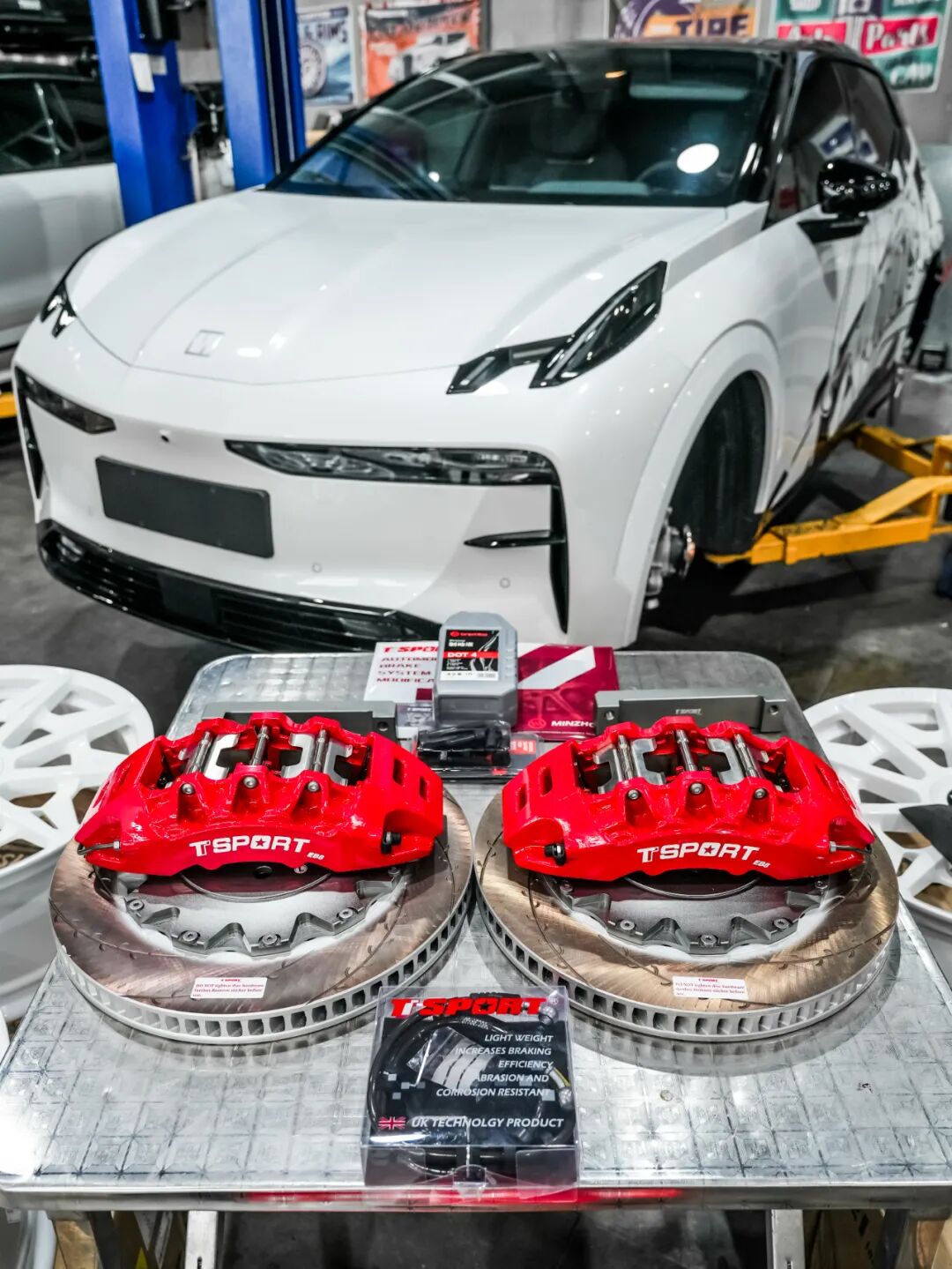

As EV owners push their cars harder — more instant torque, more weight to slow down — a lot of them find the stock brake package just isn't built for the job. That's the case with this Zeekr X, brought in by shop Car Island for a front-end brake upgrade: a TTSPORT Evolution Series EB8 eight-piston big brake kit, running behind the car's factory 21-inch wheels.
The shop's brief was straightforward: give a mid-to-large EV crossover more front braking hardware without touching wheel offset or clearance. TTSPORT's EB8 was spec'd for exactly that kind of application — mid/large sedans, SUVs, and select high-performance platforms — and slots in with a vehicle-specific bracket rather than a universal adapter.
Vehicle & Kit Specs
Here's the hardware breakdown for this Zeekr X build.
| Item | Specification |
|---|---|
| Vehicle | Zeekr X, fitted with 21-inch wheels |
| Front caliper | TTSPORT EB8 forged eight-piston monobloc caliper |
| Front rotor | TTSPORT 405x34mm high-carbon, heat-treated wave-pattern rotor |
| Bracket | Custom vehicle-specific caliper bracket |
| Pads / lines | TTSPORT high-performance street pads, stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts, and fasteners |
Below is the full official spec sheet for the EB8 caliper used in this build.
| Brake Caliper | |
|---|---|
| Series | Evolution Series |
| Model / Application | EB8 |
| Axle Position | Front |
| Piston Count | 8-piston |
| Piston Type | Two-piece heat-insulated pistons with dust boots |
| Piston Diameter | 28 mm × 4 / 32 mm × 4 |
| Caliper Dimensions | L 349 mm × W 166 mm × H 98 mm |
| Total Piston Area | 56.8 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 4.95 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 19 in or larger |
| Recommended Rotor Size | Ø380–405 mm × 34 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 107 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
The caliper body is a split forged design, built in high-strength aluminum with a symmetrical, lightweight cutout pattern on each half. That opens up more surface area for airflow to reach the caliper while cutting mass — a combination meant to hold up to repeated hard stops without the flex or heat buildup that wears on a stock caliper.
Why It Works
- Two-piece, eight-piston layout with heat-insulated pistons and dust boots — the piston sealing and hard metal piston covers are said to improve heat dissipation and rigidity by around 30%, translating to firmer, more consistent pedal feel under repeated braking.
- The 405x34mm high-carbon, heat-treated rotor adds mass and swept area over the factory disc, giving the system more thermal capacity to resist fade on longer or repeated stops.
- A vehicle-specific bracket keeps the whole assembly in the factory geometry — no spacers — so it clears the Zeekr X's stock 21-inch wheels while still meeting the EB8's stated 19-inch-and-up wheel requirement.
Installation Gallery
What wheel size does the TTSPORT EB8 kit need to clear?
What rotor size was used on this Zeekr X?
What comes in the TTSPORT EB8 kit for this install?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
