Volkswagen Tiguan Big Brake Kit Upgrade / TTSPORT Evolution EB6

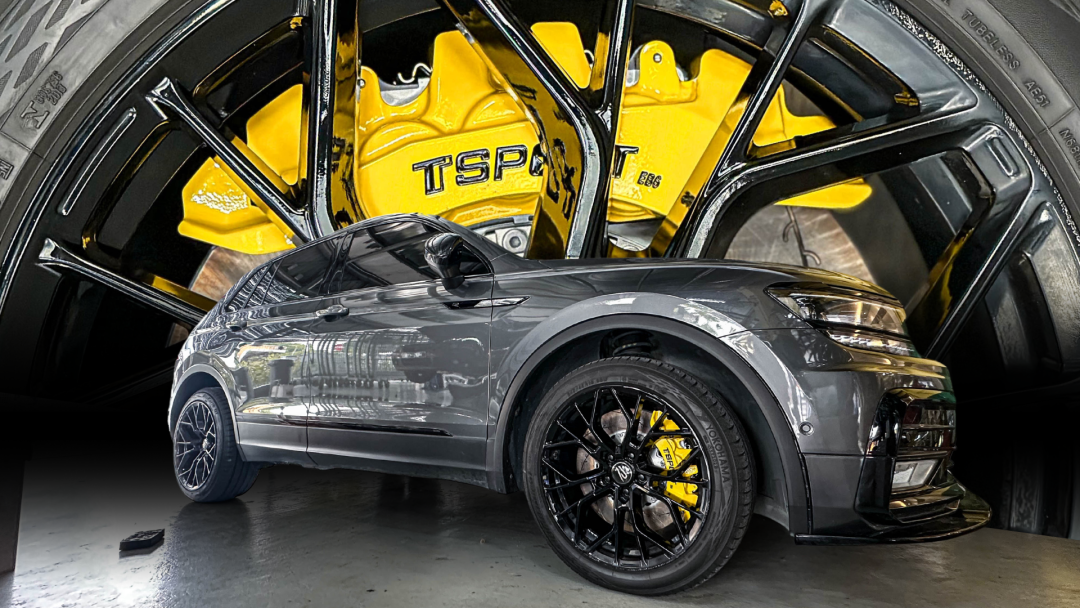

Brake upgrades have caught up with the rest of the modding world — where power, suspension, and looks used to get all the attention, more owners are now putting the same effort into stopping power. This build comes from a dealer in Malaysia: a Volkswagen Tiguan fitted with the TTSPORT® Evolution Series EB6 front big brake kit.
The Tiguan keeps its factory 19-inch wheels for this build — the EB6 caliper and 380mm rotor were sized to clear them without spacers, so the swap is a direct upgrade over the stock front brakes rather than a wheel-and-tire compromise.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | Volkswagen Tiguan, 19-inch wheels |
| Front caliper | TTSPORT EB6 two-piece forged six-piston caliper |
| Front rotor | TTSPORT 380x36mm high-carbon heat-treated slotted rotor |
| Bracket | Custom vehicle-specific caliper bracket |
| Pads / lines | TTSPORT high-performance street pads, stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts, and fitting hardware |
Here's the official TTSPORT spec sheet for the EB6 caliper used on this build:
| Brake Caliper | |
|---|---|
| Series | Evolution Series |
| Model / Application | EB6 |
| Axle Position | Front |
| Piston Count | 6-piston |
| Piston Type | Two-piece heat-insulated pistons with dust boots |
| Piston Diameter | 30 mm × 2 / 34 mm × 2 / 38 mm × 2 |
| Caliper Dimensions | L 335 mm × W 160 mm × H 102 mm |
| Total Piston Area | 55.0 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 4.6 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 19 in or larger |
| Recommended Rotor Size | Ø380–410 mm × 36 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 103 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
The EB6 is a two-piece forged caliper body joined by a through-bolt link design rather than a single cast shell. Forging aligns the aluminum's grain structure for higher tensile strength, and the through-bolt link adds a second layer of rigidity — which matters because a caliper that flexes under pedal pressure eats into pedal feel before the pads even bite.
- Two-piece heat-insulated pistons plus an asymmetric, scientifically vented caliper body pull heat away faster during repeated hard stops.
- A larger, more even pad-to-piston contact area spreads clamping force more uniformly across the pad, giving a steadier, more predictable brake feel.
- The 380x36mm high-carbon heat-treated rotor adds mass and swept area over the factory disc, giving the system more thermal capacity before fade sets in.
TTSPORT notes the EB6 caliper is built to pair with 380, 390, or 410mm high-carbon heat-treated rotors depending on wheel size — this Tiguan runs the 380mm option to match its 19-inch wheels.
Installation Gallery
FAQ
What size wheels does the TTSPORT EB6 kit fit on this Volkswagen Tiguan?
What's included in the EB6 kit installed on this Tiguan?
What types of vehicles is the EB6 caliper designed for?
