Volkswagen has never really built a proper sports car in volume — the lineup leans on sedans, SUVs, and the odd MPV. The Scirocco was the exception: a low, sharp two-door coupe with its own VW badge on the hood instead of the usual grille emblem. It's since been discontinued, which only adds to its collector-car status today. This particular Scirocco went in for a brake upgrade, swapping the stock setup for a TTSPORT Classic 5440 forged four-piston kit.
The build swapped in a TT5440 forged four-piston caliper, a TT slotted/drilled two-piece rotor, and stainless steel brake lines — a straightforward front-axle upgrade rather than a full track-spec overhaul. The red caliper finish and dacromet-coated rotor give the car a cleaner look through the spokes while backing up the factory braking hardware with more caliper rigidity and rotor mass.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | Volkswagen Scirocco (discontinued, collector-status coupe) |
| Front caliper | TTSPORT Classic 5440 forged two-piece aluminum four-piston caliper |
| Front rotor | TT slotted/drilled two-piece rotor, dacromet coating |
| Pads / lines | TT brake pads, stainless steel brake lines |
| Hardware | Full mounting hardware included with the kit |
The 5440 fitted to this Scirocco is the same product listed in TTSPORT's official spec sheet below — worth a look if you want the exact dimensions and clearance numbers before ordering.
| Brake Caliper | |
|---|---|
| Series | Classic Series |
| Model / Application | 5440 |
| Axle Position | Front |
| Piston Count | 4-piston |
| Piston Type | Star-profile racing pistons without dust boots |
| Piston Diameter | 38 mm × 2 / 41 mm × 2 |
| Caliper Dimensions | L 276 mm × W 138 mm × H 80 mm |
| Total Piston Area | 49.1 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 2.65 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 17 in or larger |
| Recommended Rotor Size | Ø330–345 mm × 28 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 86 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
A forged, two-piece aluminum caliper body doesn't flex under pressure the way a stock caliper can, so pedal input translates more directly into clamping force instead of getting absorbed by the caliper itself. The 5440's four star-profile pistons spread that clamping load evenly across the pad, and with 49.1 cm² of total piston area per side, there's more surface pushing the pad into the rotor than a smaller factory caliper offers.
- Two-piece slotted/drilled rotor design sheds heat faster than a solid disc, which helps resist fade under repeated hard stops.
- Vehicle-specific radial-mount brackets keep the whole assembly fitting behind the Scirocco's factory wheels — no spacers needed per the recommended 17-inch-plus wheel spec.
- Stainless steel lines replace the factory rubber hoses, cutting down on the line expansion that contributes to a soft or spongy pedal.

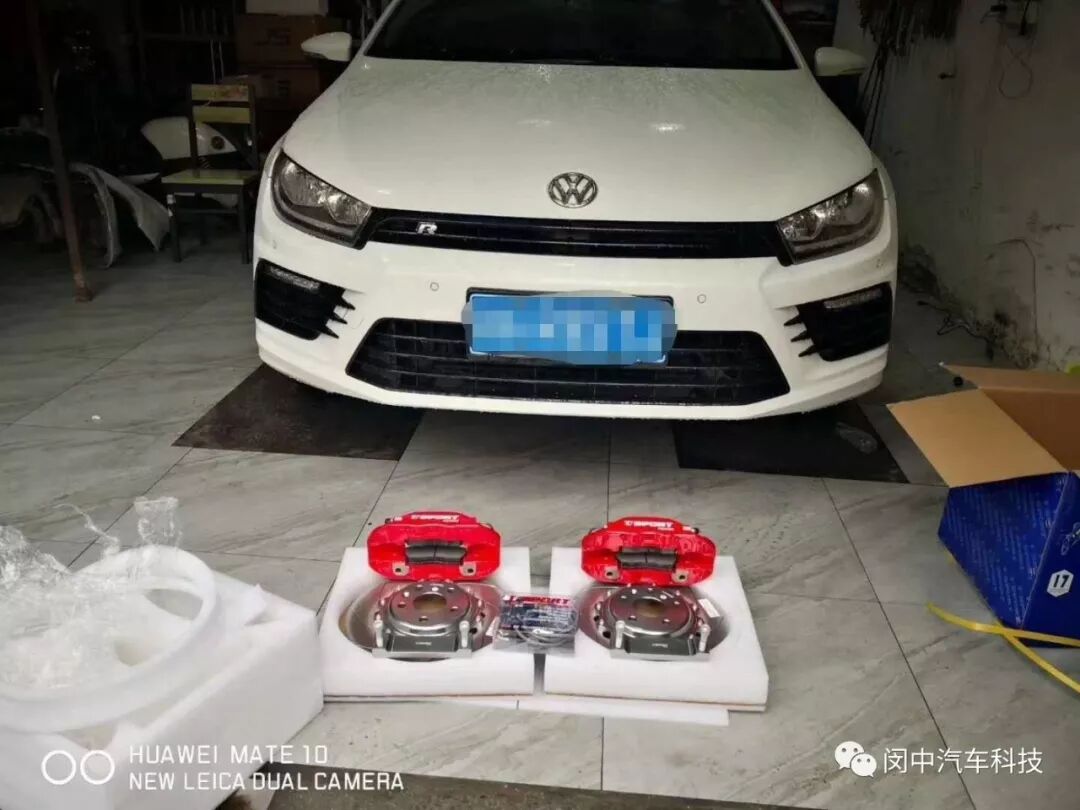

Installation Gallery
FAQ
What TTSPORT kit was installed on this Volkswagen Scirocco?
Why is the TT5440 a common choice for Volkswagen platforms?
Does the kit come with everything needed to install it?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
