Volkswagen Magotan Big Brake Kit Upgrade / TTSPORT Classic 5440
The Volkswagen Magotan was FAW-Volkswagen's first B-segment sedan, built to cover both family duty and business use with a roomy cabin and a chassis that handles better than its size suggests. It's not the quickest off the line, but it holds its own at highway speed. For an owner who wants to back that up with brakes that match the car's pace, a front-axle upgrade is the obvious next move.

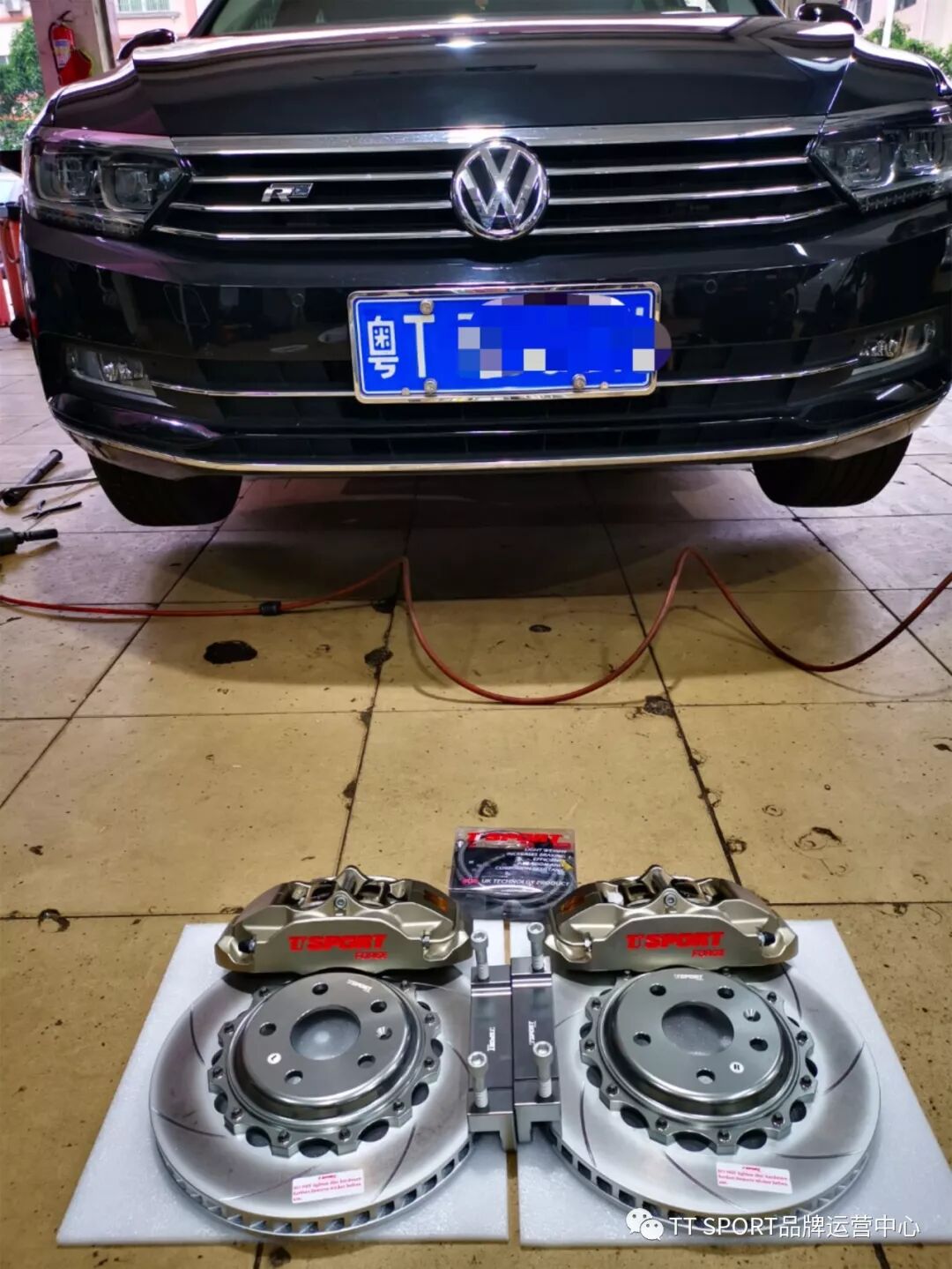

This build swaps the Magotan's front brakes for a TTSPORT Classic 5440 forged four-piston caliper, a Dacromet-coated 330×28mm slotted rotor, and stainless steel braided lines — a straightforward OEM+ upgrade that keeps the factory wheels in play.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | Volkswagen Magotan, front axle brake upgrade |
| Front caliper | TTSPORT 5440 forged four-piston caliper |
| Front rotor | TTSPORT Dacromet-coated 330×28mm slotted rotor |
| Brake lines | TTSPORT stainless steel braided lines |
Here's the full spec sheet for the TTSPORT 5440 used in this build:
| Brake Caliper | |
|---|---|
| Series | Classic Series |
| Model / Application | 5440 |
| Axle Position | Front |
| Piston Count | 4-piston |
| Piston Type | Star-profile racing pistons without dust boots |
| Piston Diameter | 38 mm × 2 / 41 mm × 2 |
| Caliper Dimensions | L 276 mm × W 138 mm × H 80 mm |
| Total Piston Area | 49.1 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 2.65 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 17 in or larger |
| Recommended Rotor Size | Ø330–345 mm × 28 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 86 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
The 5440 is one of TTSPORT's most widely fitted calipers, covering everything from entry-level daily drivers to serious track builds because the mounting geometry adapts across a broad range of platforms without giving up braking performance.
Why It Works
- A two-piece forged aluminum caliper body flexes far less under load than the stock cast caliper, so pedal pressure translates directly into clamping force instead of getting absorbed by caliper flex.
- Four star-profile pistons spread 49.1 cm² of total piston area across the pad, which loads it more evenly than a smaller single- or dual-piston setup and helps even out pad wear.
- The 330×28mm slotted rotor adds mass and surface area over the stock disc, giving the system more thermal capacity before heat buildup starts to fade the pads.
- With an 86mm minimum spoke clearance requirement and a 17-inch-and-up wheel spec, the kit tucks behind the Magotan's factory wheel with no spacers, so ride height and offset stay untouched.
The finished install also trims a bit of unsprung weight compared to the stock caliper-and-rotor package, which owners typically notice as quicker turn-in response along with the improved bite.
Installation Gallery
What wheel size does the TTSPORT 5440 kit need on a Volkswagen Magotan?
What's included in this Magotan big brake kit?
How is the TTSPORT 5440 caliper mounted?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
