Volkswagen Golf 7 Big Brake Kit Upgrade / TTSPORT Classic 5440
China-market Volkswagen Golf 7s are known for a cost-cut rear suspension compared to the independent setup on export models, and owners have noticed the difference in more than just ride quality. One recurring complaint is a loud, sharp brake squeal — the dealer's answer was that it's a stock brake component material issue, not something a pad swap or bleed would fix. For a Golf 7 owner tired of the noise, a proper caliper and rotor upgrade was the practical way out.

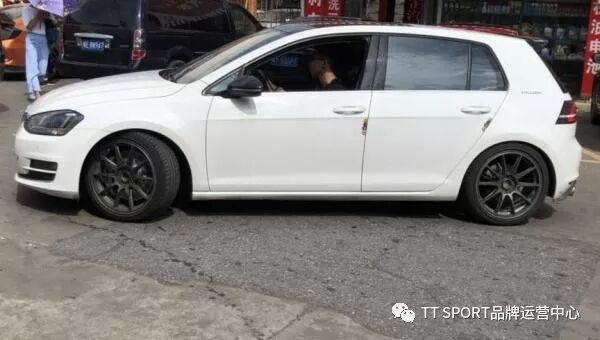

The build: an 18-inch-wheel Golf 7 fitted with a TTSPORT 5440 four-piston caliper, a TT343 x 28mm dacromet-coated curved-vane rotor, and TTSPORT stainless steel brake lines — a factory-style clean install with no spacers or trimming.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | Volkswagen Golf 7 (Mk7), 18-inch wheels |
| Front caliper | TTSPORT 5440, four-piston, metallic finish |
| Front rotor | TTSPORT 343mm x 28mm dacromet-coated curved-vane rotor |
| Brake lines | TTSPORT stainless steel brake lines |
The TT5440 caliper used on this Golf 7 is TTSPORT's Classic Series four-piston unit. Full specs below.
| Brake Caliper | |
|---|---|
| Series | Classic Series |
| Model / Application | 5440 |
| Axle Position | Front |
| Piston Count | 4-piston |
| Piston Type | Star-profile racing pistons without dust boots |
| Piston Diameter | 38 mm × 2 / 41 mm × 2 |
| Caliper Dimensions | L 276 mm × W 138 mm × H 80 mm |
| Total Piston Area | 49.1 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 2.65 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 17 in or larger |
| Recommended Rotor Size | Ø330–345 mm × 28 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 86 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
This install went with the metallic TT5440 finish. Once the caliper and rotor package was confirmed, the shop pulled the wheel and set up the caliper on the spindle.
Why It Works
A stamped-steel floating caliper flexes slightly under clamping load, and that movement — combined with worn pad material — is a common source of brake squeal. The TT5440's two-piece forged aluminum body is a rigid, four-piston design, so the pads clamp more evenly against the rotor and there's less of the vibration that turns into a high-pitched noise.
- Forged four-piston caliper body resists flex for more even pad contact
- 343mm x 28mm dacromet-coated rotor adds swept area and resists the surface corrosion that can also trigger noise
- Confirmed clearance behind the Golf 7's 18-inch wheels, so no spacers or wheel changes were needed
- Stainless steel brake lines replace the stock rubber lines for a firmer, more consistent pedal
Installation Gallery
FAQ
What TTSPORT kit fits the Volkswagen Golf 7 with 18-inch wheels?
Does this kit fix the Golf 7's brake squeal?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
