Toyota Alphard Big Brake Kit Upgrade / TTSPORT Mono EMB6

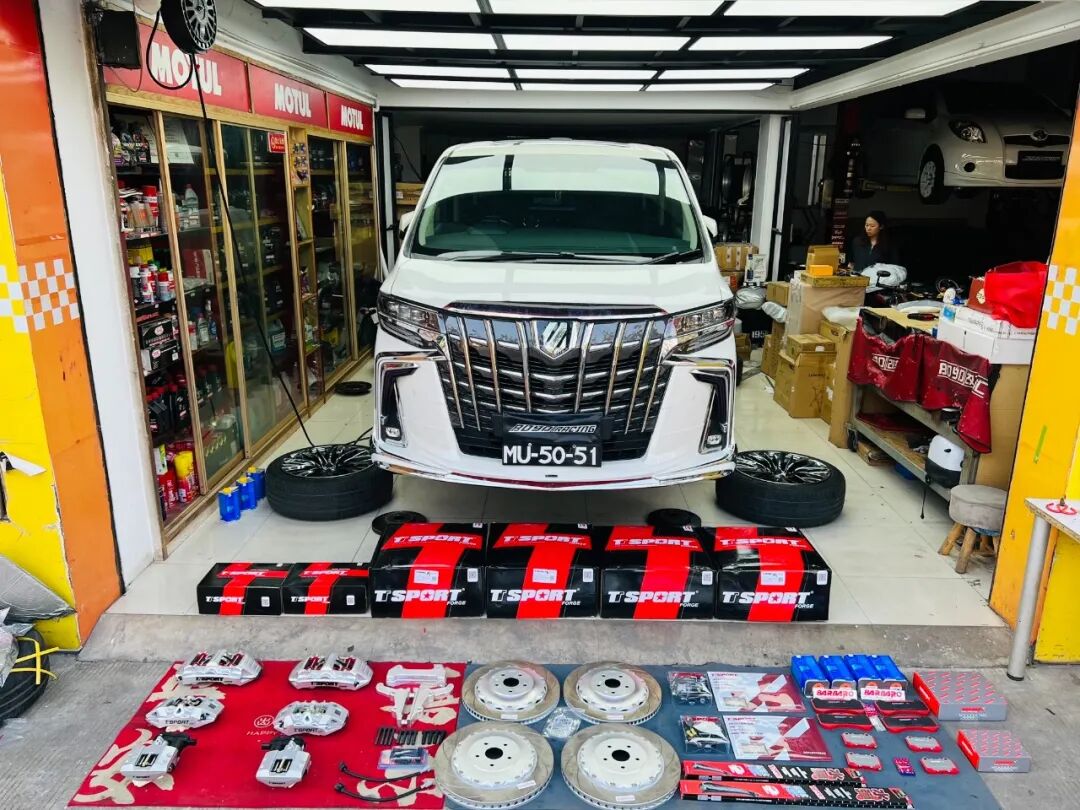

A soft, low pedal is a common complaint on the Toyota Alphard — a heavy MPV asking a lot of its factory floating calipers. To fix it, a TTSPORT partner shop installed a front-six/rear-four big brake kit: a monobloc forged six-piston caliper up front and a two-piece forged four-piston caliper with electronic parking brake (EPB) function in back, both paired with larger high-carbon rotors.
The goal wasn't a track-day setup — it was giving a family MPV a pedal that feels direct and predictable at street speeds, without touching wheel fitment or ride quality.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | Toyota Alphard, fitted with 19-inch wheels |
| Front caliper | TTSPORT EMB6 monobloc forged six-piston caliper |
| Front rotor | TTSPORT 380 x 34mm high-carbon, heat-treated slotted rotor |
| Rear caliper | TTSPORT ES4 two-piece forged four-piston caliper with integrated electronic parking brake (EPB) |
| Rear rotor | TTSPORT 380 x 28mm high-carbon, heat-treated slotted rotor |
| Bracket | Custom vehicle-specific caliper brackets, front and rear |
| Pads / lines | TTSPORT high-performance street brake pads, stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts, and fitting hardware |
The front EMB6 caliper and rear ES4 caliper each carry their own official TTSPORT spec sheet, included below for reference.
| Brake Caliper | |
|---|---|
| Series | Mono Series |
| Model / Application | EMB6 |
| Axle Position | Front |
| Piston Count | 6-piston |
| Piston Type | Two-piece heat-insulated pistons without dust boots |
| Piston Diameter | 30 mm × 2 / 34 mm × 2 / 38 mm × 2 |
| Caliper Dimensions | L 382 mm × W 160 mm × H 92 mm |
| Total Piston Area | 55.0 cm² per caliper, all pistons combined |
| Manufacturing Process | Monoblock forged aluminum body |
| Net Weight | 3.25 kg per caliper, without pads |
| Surface Finish | Nickel-plated |
| Recommended Wheel Size | 18 in or larger |
| Recommended Rotor Size | Ø355–405 mm × 32 mm-34 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 101 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
| Brake Caliper | |
|---|---|
| Series | Evolution Series |
| Model / Application | ES4 |
| Axle Position | Rear |
| Piston Count | 4-piston |
| Piston Type | Two-piece heat-insulated pistons with dust boots |
| Piston Diameter | 28 mm × 2 / 32 mm × 2 |
| Caliper Dimensions | L 255 mm × W 139 mm × H 74 mm |
| Total Piston Area | 28.4 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 2.80 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 18 in or larger |
| Recommended Rotor Size | Ø345–380 mm × 28 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 90 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Compared to the Alphard's factory floating calipers, the fixed six-piston front and four-piston rear design spreads clamping force across more of the pad surface — larger contact area, more even pressure, and less flex under load.
Why It Works
- Forged fixed calipers resist flex under braking load, which is what firms up pedal feel compared to a floating caliper that has to slide on pins.
- Larger 380mm rotors front and rear add mass and surface area, giving the system more thermal capacity to resist fade during repeated or hard stops.
- Vehicle-specific brackets place the calipers correctly behind the Alphard's own 19-inch wheels, so no wheel spacers or offset changes are needed.
- The rear ES4 caliper keeps the factory electronic parking brake function, so no separate handbrake workaround is required.
- Stainless steel lines replace the factory rubber hoses, cutting down on the line expansion that contributes to a spongy pedal.
Installation Gallery
Does this kit work with the Alphard's electronic parking brake?
What wheel size does this installation require?
What's included with the TTSPORT front-six/rear-four kit?
