GWM Tank 500 Big Brake Kit Upgrade / TTSPORT Direct-Mount OR6

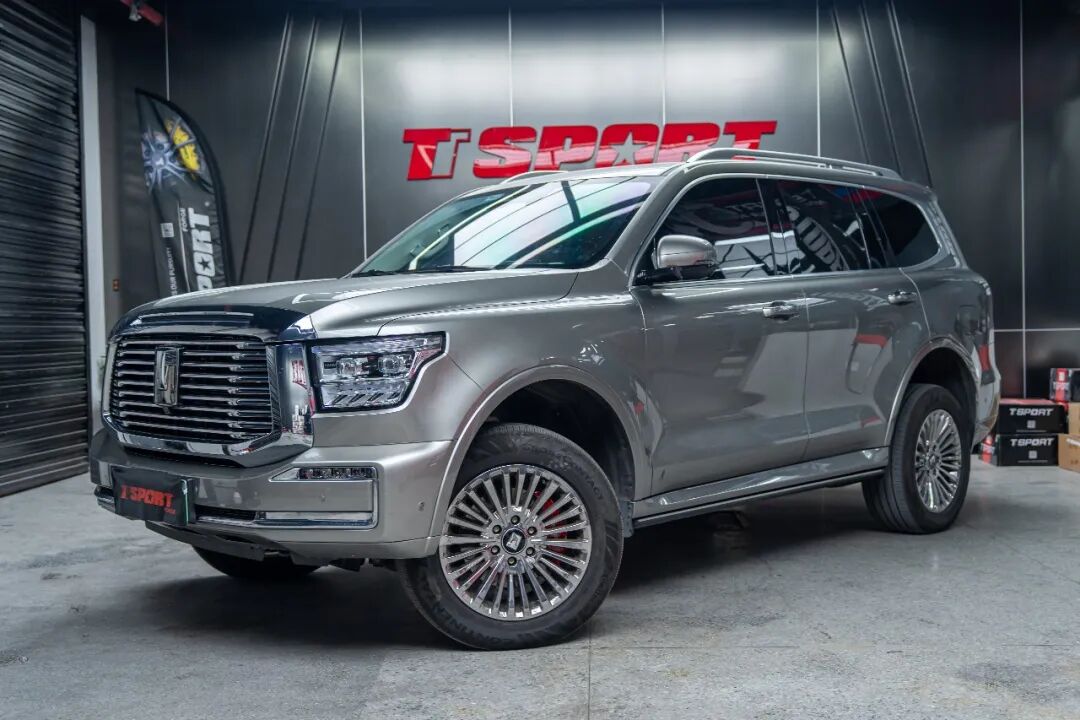

The Tank 500 was never built as a city commuter. It's a heavy, four-wheel-drive SUV that gets loaded up, hitched to trailers, and pointed down long descents and rough, unpaved trails — conditions that put far more demand on a brake system than everyday street driving. If a loaded Tank 500 feels short on confidence on a long grade, if the pedal goes soft after repeated braking, or if the factory brakes feel inconsistent over gravel and washboard, that's a sign the stock hardware is working near its limit. This case looks at a Tank 500 fitted with the TTSPORT OR6, a direct-mount six-piston kit built specifically for heavy-duty, off-road use.
The OR6 caliper bolts to the Tank 500's factory mounting points with no flange adapter and no drilling — the kind of clean, reversible install off-road owners actually want, since it doesn't compromise the vehicle's structure or complicate future service.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | 2022-2026 GWM Tank 500 (Hi4-Z trim not supported), factory 18-19 in wheels |
| Front caliper | TTSPORT OR6 forged, direct-mount six-piston caliper |
| Front rotor | TTSPORT 345mm high-carbon rotor (345mm x 32mm) |
| Bracket | Integrated one-piece high-strength bracket, no flange adapter required |
| Brake lines | Off-road-specific internal brake line routing |
| Hardware | Vehicle-specific mounting hardware, uses factory bolt locations |
The full official specification for the caliper used in this build is below.
| Brake Caliper | |
|---|---|
| Series | Direct-Mount Series |
| Model / Application | OR6 |
| Axle Position | Front |
| Piston Count | 6-piston |
| Piston Type | One-piece heat-insulated pistons with dust boots |
| Piston Diameter | 40 mm × 4, 43 mm × 2 |
| Caliper Dimensions | L 301 mm × W 149 mm × H 130 mm |
| Total Piston Area | 79 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 4 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 17 in or larger |
| Recommended Rotor Size | Ø340–355 mm × 32/34 mm |
| Fitment & Installation | |
| Vehicle Application / Trim Exclusions | 2022-2026 GWM Tank 500 - (345mm × 32mm, Hi4-Z Not Available) 2021-2026 Ford F-150 (P702) - (340mm × 32mm) 2021-2026 Ford F-150 Raptor (3rd Gen. Raptor) - (340mm × 32mm) 2021-2026 Ford Bronco (U725) - (340mm × 32mm) 2022-2026 Ford Bronco Raptor (U725) - (340mm × 32mm) 2022-2026 Ford Ranger (2nd Gen.) - (340mm × 32mm) 2022-2026 Ford Ranger Raptor (2nd Gen.) - (340mm × 32mm) 2009-2023 Toyota LC150 Prado - (345mm × 32mm) 2012-2017 Lexus GX400 - (345mm × 32mm) 2010-2023 Lexus GX460 - (345mm × 32mm) 2008-2021 Toyota LC200 - (355mm × 32mm) 2008-2021 Lexus LX570 - (355mm × 32mm) 2024-2026 Toyota LC250 Prado - (345 mm × 34 mm) 2024-2026 Lexus GX550 - (345 mm × 34 mm) 2007-2021 Toyota Tundra (XK50) - (355mm × 32mm) 2008-2022 Toyota Sequoia (XK60) - (355mm × 32mm) 2022-2026 Toyota LC300 - (345 mm × 34 mm) 2022-2026 Lexus LX600 - (345 mm × 34 mm) 2022-2026 Toyota Tundra (XK70) - (345 mm × 34 mm) 2023-2026 Toyota Sequoia (XK80) - (345 mm × 34 mm) 2007-2018 Jeep Wrangler JK - (345mm × 32mm) 2018-2026 Jeep Wrangler JL - (345mm × 32mm) |
| Minimum Spoke Clearance (mm) | 91 |
| Caliper Mounting Type | Direct mount |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
The OR6 isn't just a six-piston caliper bolted on for the sake of a bigger number. Piston area is sized around the Tank 500's curb weight, center of gravity, and off-road use case — enough clamping force for hard stops, but calibrated so low-speed maneuvering over gravel and loose surfaces stays predictable rather than grabby.
- The 345mm high-carbon rotor carries more thermal mass than the stock disc, so it resists fade through long descents, repeated braking, and towing — where heat buildup is what actually causes pedal fade.
- The integrated one-piece bracket keeps the caliper rigid under repeated washboard impact and hard braking, so pedal feel stays consistent instead of going soft or vague on rough trails.
- Direct-mount fitment uses the Tank 500's existing bolt pattern — no flange, no cutting or drilling, and it clears the factory 18-19 inch wheels without spacers.
- The off-road-specific internal brake line layout is routed to hold up to water fording, mud, and constant vibration without the pedal feel going inconsistent.
Installation Gallery
FAQ
Does the TTSPORT OR6 kit require a flange or any structural modification on the Tank 500?
Will this kit fit under the Tank 500's stock wheels?
Does the OR6 kit fit every Tank 500 trim?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
