Porsche 718 Big Brake Kit Upgrade / TTSPORT Evolution EB8/ES4

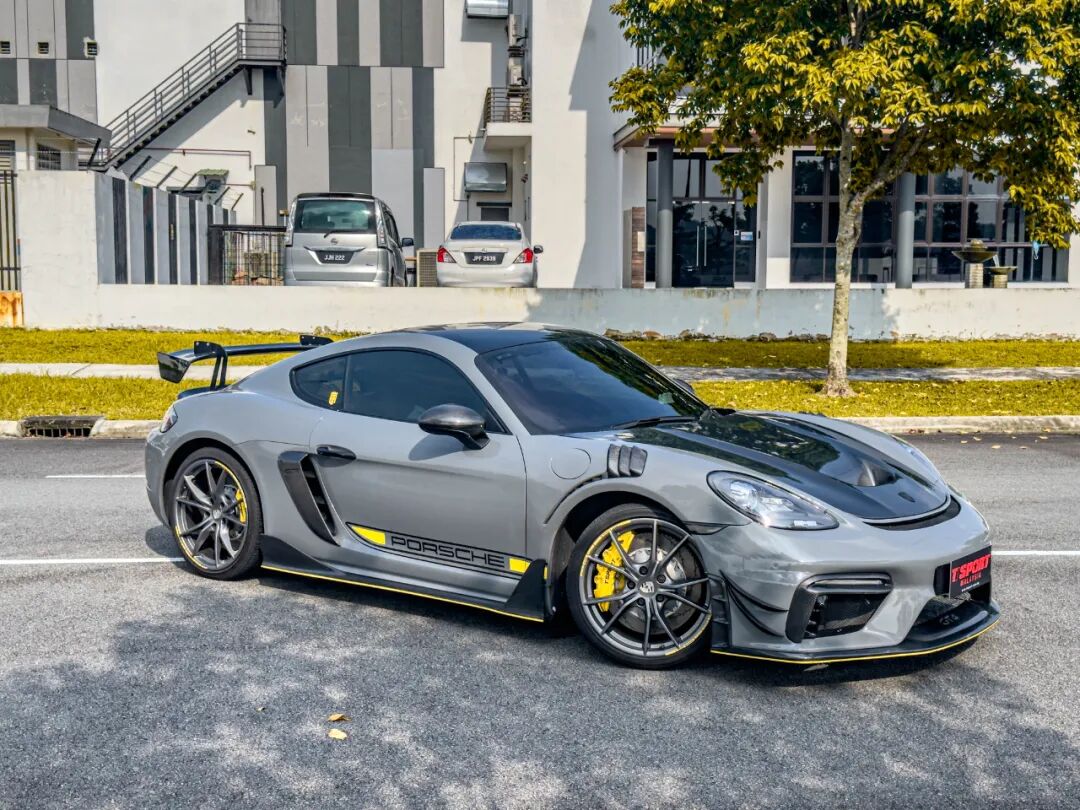

Stock brakes on a performance car like the Porsche 718 can start feeling overwhelmed once you push into track days or spirited mountain driving — pedal travel grows, fade creeps in, and confidence drops. This case comes from our authorized distributor in Malaysia, who fitted a customer's 718 with a TTSPORT Evolution Series big brake kit: an eight-piston EB8 up front and a four-piston ES4 out back.
The car rides on 20-inch wheels, which leaves enough room behind the spokes for a genuine big-caliper upgrade without touching wheel offset or spacers.
Vehicle & Kit Specs
Here's the hardware breakdown for this build, straight from the install sheet.
| Item | Specification |
|---|---|
| Vehicle | Porsche 718, 20-inch wheels |
| Front caliper | TTSPORT EB8 forged eight-piston caliper |
| Front rotor | TTSPORT 405x34mm high-carbon heat-treated slotted rotor |
| Rear caliper | TTSPORT ES4 forged four-piston caliper |
| Rear rotor | TTSPORT 380x28mm high-carbon heat-treated slotted rotor |
| Bracket | Vehicle-specific caliper brackets, front and rear |
| Pads / lines | TTSPORT high-performance street pads, stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts, and fitting hardware |
The front EB8 caliper's full spec sheet is below.
| Brake Caliper | |
|---|---|
| Series | Evolution Series |
| Model / Application | EB8 |
| Axle Position | Front |
| Piston Count | 8-piston |
| Piston Type | Two-piece heat-insulated pistons with dust boots |
| Piston Diameter | 28 mm × 4 / 32 mm × 4 |
| Caliper Dimensions | L 349 mm × W 166 mm × H 98 mm |
| Total Piston Area | 56.8 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 4.95 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 19 in or larger |
| Recommended Rotor Size | Ø380–405 mm × 34 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 107 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
And here's the rear ES4 caliper's full spec sheet.
| Brake Caliper | |
|---|---|
| Series | Evolution Series |
| Model / Application | ES4 |
| Axle Position | Rear |
| Piston Count | 4-piston |
| Piston Type | Two-piece heat-insulated pistons with dust boots |
| Piston Diameter | 28 mm × 2 / 32 mm × 2 |
| Caliper Dimensions | L 255 mm × W 139 mm × H 74 mm |
| Total Piston Area | 28.4 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 2.80 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 18 in or larger |
| Recommended Rotor Size | Ø345–380 mm × 28 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 90 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
Up front, the EB8's eight-piston, two-piece forged design spreads clamping force more evenly across the pad than a smaller stock caliper can. The open, heavily-relieved caliper body and two-piece heat-insulated pistons help pull heat away from the fluid and pads faster, which matters most when the car is being worked hard for more than one hot lap or one hard descent.
- Stronger, more even clamping force from the front eight-piston EB8 caliper for more stable, more repeatable stops.
- Open caliper body and two-piece heat-insulated pistons dissipate heat more effectively, helping resist fade under sustained hard braking.
- Rear ES4 four-piston calipers balance front-to-rear brake bias, reducing the risk of the rear stepping out under hard braking, especially on wet or uneven pavement.
- Adding real rear brake capacity evens out pad wear front-to-rear, which stretches service life on the whole brake system.
Installation Gallery
