NIO ET5T Big Brake Kit Upgrade / TTSPORT Evolution EB6
The stock brakes on a NIO ET5T can feel overwhelmed once you start pushing the car harder — a soft pedal, fade under repeated hard stops, and a general lack of confidence at the limit. A partner shop tackled this with a TTSPORT Evolution Series EB6 front big brake kit, swapping in a six-piston forged caliper and a larger rotor to give the car a firmer pedal and more consistent stopping power.

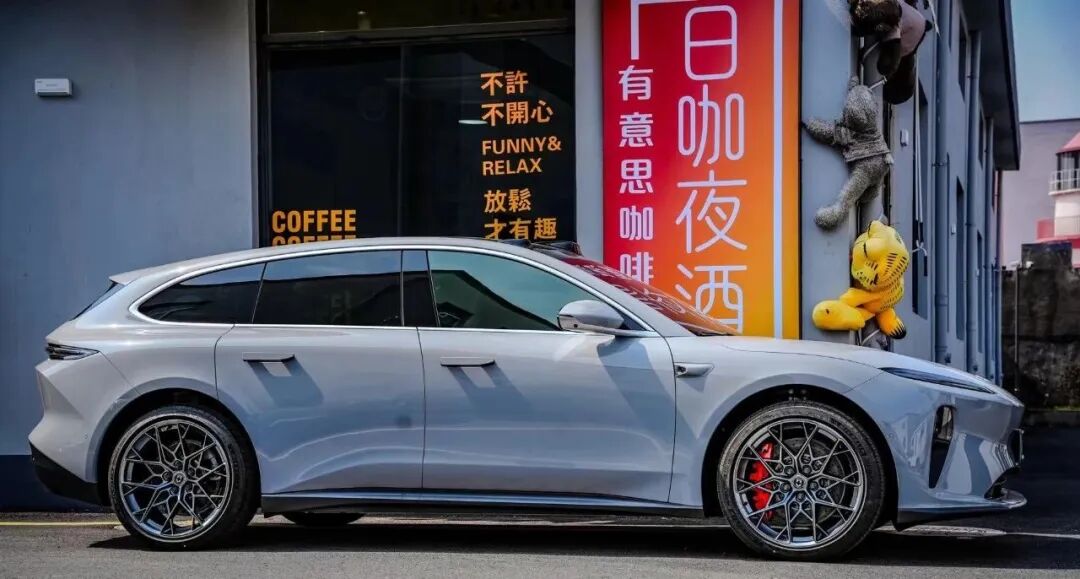

The finished setup sits behind the ET5T's factory 20-inch wheels with no visual compromise — just a noticeably beefier caliper filling the spokes and a larger rotor doing more of the work every time the driver gets on the brakes.
Vehicle & Kit Specs
Here's the hardware breakdown for this front-axle upgrade:
| Item | Specification |
|---|---|
| Vehicle | NIO ET5T, 20-inch wheels |
| Front caliper | TTSPORT EB6 forged six-piston caliper (Evolution Series) |
| Front rotor | TTSPORT 380mm high-carbon heat-treated rotor |
| Bracket | Custom vehicle-specific caliper bracket |
| Pads / lines | TTSPORT high-performance street pads, TTSPORT stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts and fixing hardware |
Below is the official TTSPORT spec sheet for the EB6 caliper used in this build.
| Brake Caliper | |
|---|---|
| Series | Evolution Series |
| Model / Application | EB6 |
| Axle Position | Front |
| Piston Count | 6-piston |
| Piston Type | Two-piece heat-insulated pistons with dust boots |
| Piston Diameter | 30 mm × 2 / 34 mm × 2 / 38 mm × 2 |
| Caliper Dimensions | L 335 mm × W 160 mm × H 102 mm |
| Total Piston Area | 55.0 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 4.6 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 19 in or larger |
| Recommended Rotor Size | Ø380–410 mm × 36 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 103 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
The EB6 caliper body is forged in two pieces and, for the first time in this design, uses a through-caliper reinforcement bar tying the halves together. A stiffer caliper flexes less under hard clamping loads, which means more of the pedal input actually goes into pad-to-rotor clamping force instead of getting absorbed by caliper deformation — the difference between a firm pedal and a mushy one.
- Two-piece heat-insulated pistons with dust boots and optimized seals keep temperatures from soaking into the fluid, so pedal feel stays consistent under repeated hard stops.
- An asymmetric piston layout (large, medium, and small pistons) evens out clamping pressure across the pad surface, producing more linear, predictable braking rather than uneven pad wear or grabby response.
- The 380mm high-carbon heat-treated rotor adds mass and swept area over the factory disc, giving the system more heat capacity to resist fade — and the EB6 platform scales up to 390mm or 410mm on cars with larger wheels.
Installation Gallery
