Mercedes-Benz C300 Big Brake Kit Upgrade / TTSPORT Evolution EB6
A Malaysian dealer brought in a Mercedes-Benz C300 for a front brake upgrade, swapping the factory calipers for TTSPORT's Evolution Series EB6 — a split forged six-piston setup paired with a 380mm high-carbon heat-treated rotor. The goal was straightforward: more braking capacity and a firmer pedal without giving up the car's factory 19-inch wheel fitment.

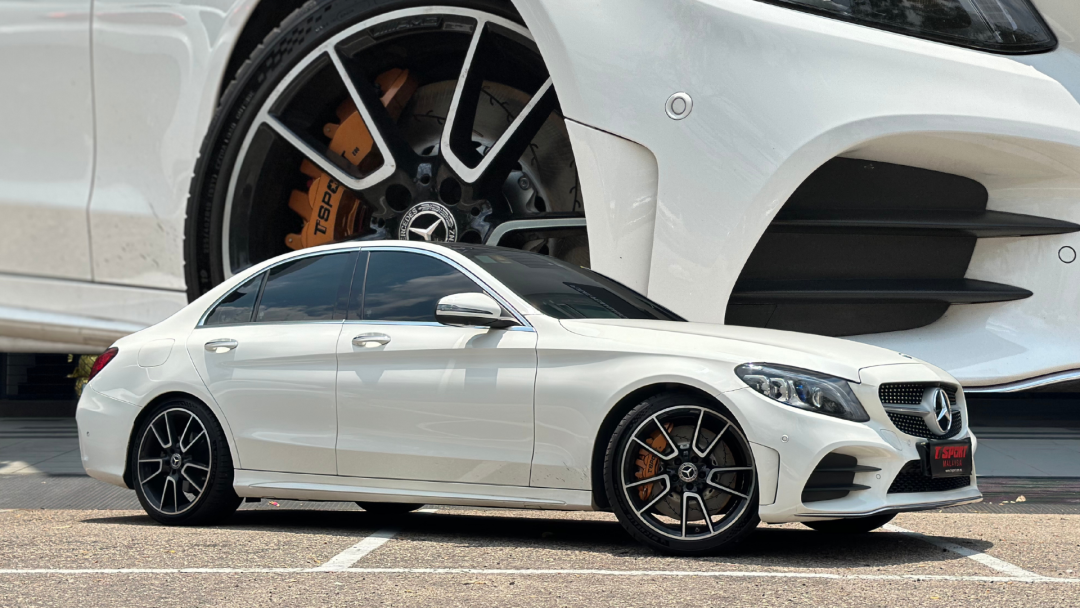

The finished install sits cleanly behind the C300's stock wheel, with the EB6's gold caliper visible through the spokes. TTSPORT designed this kit around a 19-inch-and-up wheel fitment, so no spacers or wheel changes were needed to make it work on this car.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | Mercedes-Benz C300, 19-inch wheels |
| Front caliper | TTSPORT EB6 split forged six-piston caliper |
| Front rotor | TTSPORT 380mm x 36mm high-carbon heat-treated rotor |
| Bracket | Custom vehicle-specific caliper bracket for the C300 |
| Pads / lines | TTSPORT high-performance street pads, stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts, and fasteners |
Here is the official spec sheet for the EB6 caliper used on this build.
| Brake Caliper | |
|---|---|
| Series | Evolution Series |
| Model / Application | EB6 |
| Axle Position | Front |
| Piston Count | 6-piston |
| Piston Type | Two-piece heat-insulated pistons with dust boots |
| Piston Diameter | 30 mm × 2 / 34 mm × 2 / 38 mm × 2 |
| Caliper Dimensions | L 335 mm × W 160 mm × H 102 mm |
| Total Piston Area | 55.0 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 4.6 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 19 in or larger |
| Recommended Rotor Size | Ø380–410 mm × 36 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 103 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
The EB6 uses a two-piece forged aluminum body with a through-bolt design connecting the halves. Forging aligns the metal's grain structure for better tensile strength and durability than a cast caliper, and TTSPORT states this bridge-bolt layout adds roughly 20-30% more structural strength versus a conventional design — which matters most under hard, repeated braking where caliper flex would otherwise soften pedal feel.
- Two-piece heat-insulated pistons, an asymmetric caliper layout, and machined venting help manage the temperature buildup that comes with sustained hard braking.
- Larger, more evenly sized pistons across the six-piston layout spread clamping force more uniformly across the pad, for steadier, more balanced braking.
- The 380mm rotor was matched to the car's 19-inch wheels; TTSPORT also offers 390mm and 410mm high-carbon heat-treated rotors for larger wheel fitments on the same EB6 platform.
Installation Gallery
FAQ
What wheel size does this Mercedes-Benz C300 EB6 kit fit behind?
What rotor size is used in this kit, and are other sizes offered?
What comes in the TTSPORT EB6 big brake kit?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
