Mercedes-Benz C200 Big Brake Kit Upgrade / TTSPORT Evolution ES6

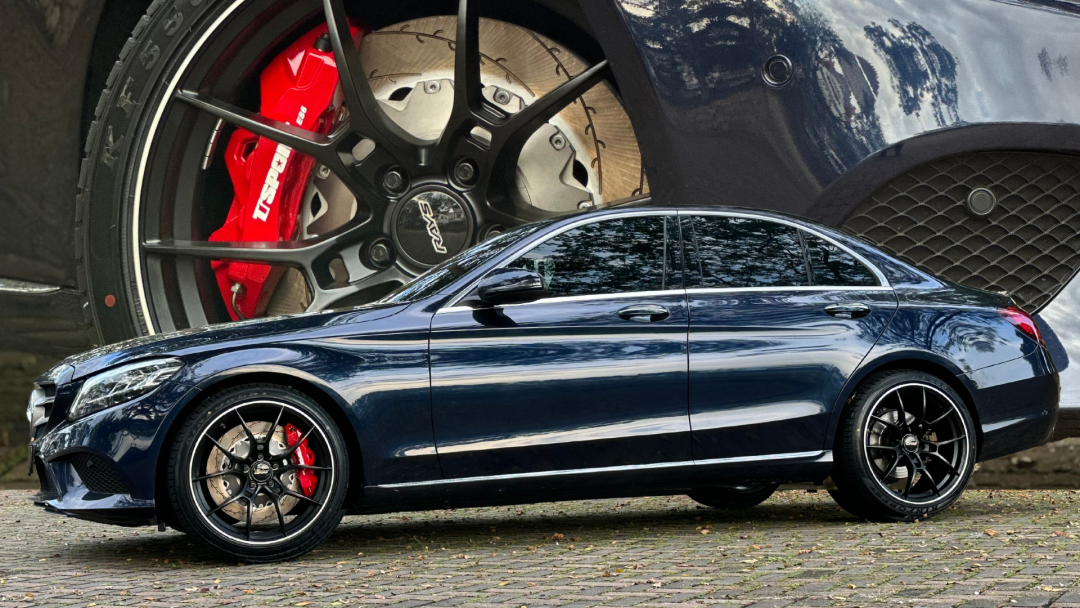

Hard braking exposes the limits of a stock setup fast — pedal travel grows, fade creeps in, and confidence drops right when you need it most. A Malaysian TTSPORT dealer addressed that on a Mercedes-Benz C200 with a front axle upgrade to the TTSPORT Evolution Series ES6 big brake kit, paired with 380mm rotors and running clean behind the car's factory 19-inch wheels.
The goal here wasn't a track-only setup — it's a daily-driven C200 that needed a firmer pedal and more consistent stopping power under repeated hard use, without giving up wheel fitment or ride comfort.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | Mercedes-Benz C200, 19-inch wheels |
| Front caliper | TTSPORT ES6 split forged 6-piston caliper |
| Front rotor | TTSPORT 380mm x 32mm high-carbon, heat-treated slotted rotor |
| Bracket | Custom vehicle-specific caliper bracket |
| Pads / lines | TTSPORT high-performance street pads, stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts, and installation hardware |
Below is the official TTSPORT spec sheet for the ES6 caliper used in this build.
| Brake Caliper | |
|---|---|
| Series | Evolution Series |
| Model / Application | ES6 |
| Axle Position | Front |
| Piston Count | 6-piston |
| Piston Type | Two-piece heat-insulated pistons with dust boots |
| Piston Diameter | 27 mm × 2 / 32 mm × 2 / 38 mm × 2 |
| Caliper Dimensions | L 294 mm × W 155 mm × H 84 mm |
| Total Piston Area | 50.2 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 3.95 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 18 in or larger |
| Recommended Rotor Size | Ø355–380 mm × 32 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 99 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
Forged Rigidity for a Firmer Pedal
The ES6 caliper body is forged in two pieces and uses a through-bolt reinforcement bar to tie the halves together. A stiffer caliper flexes less under clamp load, so pedal effort goes into squeezing the pads instead of stretching the caliper — the reason the pedal feels shorter and more predictable at the top of the stroke.
Inside, the two-piece heat-insulated pistons with dust boots and refined seal design help the caliper apply force more evenly across the pad, which keeps braking consistent through repeated hard stops rather than tapering off as things heat up.
Less Unsprung Weight
The ES6's asymmetric, heavily machined body is lighter than a comparable symmetric forged caliper. Less mass at the corner means less unsprung weight for the suspension to control, which helps the suspension react faster and track the road more closely. A lighter overall car also benefits fuel economy and acceleration.
- 380mm x 32mm high-carbon, heat-treated rotor for more thermal mass and fade resistance than the stock disc
- Runs behind the C200's factory 19-inch wheel with the vehicle-specific bracket in this build
- ES6 is sized for mid-to-large sedans, SUVs, MPVs, and performance-oriented upgrades
Installation Gallery
Common Questions
What wheel size does the TTSPORT ES6 kit fit on this Mercedes-Benz C200?
What rotor size comes with this ES6 kit?
What's included in the ES6 kit besides the caliper and rotor?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
