Mazda CX-3 Big Brake Kit Upgrade / TTSPORT Classic 5440

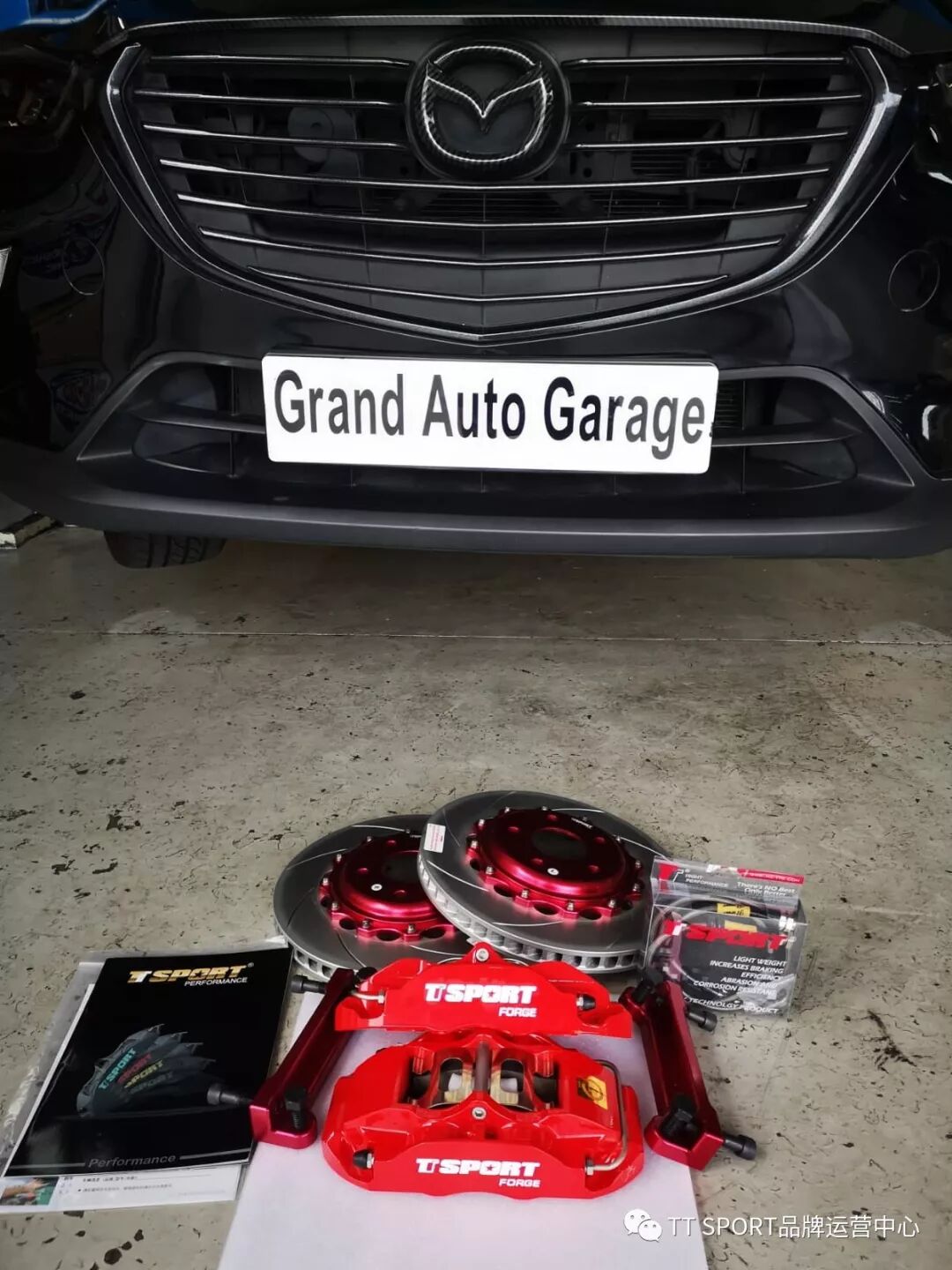

The Mazda CX-3 is the smallest SUV in Mazda's CX lineup, but the Singapore-spec car still packs the 2.0L SkyActiv engine and Mazda's G-Vectoring Control system — enough playful handling to make the factory brakes feel like the weak link. This case, sent in by our Singapore distributor, swaps the stock setup for a TT5440 four-piston caliper kit paired with a 330mm rotor.
The owner opted for the custom red version of the TT5440, a caliper built with a forged construction and racing-grade stainless pistons. It's one of the more popular Classic Series calipers both domestically and overseas.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | Mazda CX-3 (Singapore-spec), 2.0L SkyActiv engine, G-Vectoring Control |
| Front caliper | TTSPORT 5440 forged four-piston caliper, red custom finish |
| Front rotor | TT 330mm x 28mm Dacromet-coated curved-vane rotor |
| Bracket | Vehicle-specific caliper bracket built for the CX-3 |
| Lines | TTSPORT stainless steel braided brake lines |
Here's the official spec sheet for the TT5440 caliper used in this build:
| Brake Caliper | |
|---|---|
| Series | Classic Series |
| Model / Application | 5440 |
| Axle Position | Front |
| Piston Count | 4-piston |
| Piston Type | Star-profile racing pistons without dust boots |
| Piston Diameter | 38 mm × 2 / 41 mm × 2 |
| Caliper Dimensions | L 276 mm × W 138 mm × H 80 mm |
| Total Piston Area | 49.1 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 2.65 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 17 in or larger |
| Recommended Rotor Size | Ø330–345 mm × 28 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 86 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
A forged two-piece caliper body flexes less under pedal load than a stock cast unit, which is what firms up pedal feel once you're on the brakes hard. The 5440's four pistons — star-profile, without dust boots — spread clamping force more evenly across the pad than a single- or two-piston caliper, translating into more consistent bite.
More rotor, more heat capacity
Stepping up to a 330x28mm rotor adds mass and surface area over the factory disc, giving the system more thermal capacity before fade sets in — useful on a car that's meant to be driven with some enthusiasm through corners, per Mazda's own GVC pitch.
Fitment without spacers
The kit was matched to the CX-3 with a caliper bracket built specifically for this platform, so the rotor and caliper package lines up with the factory hub geometry. The source notes the parts "aligned perfectly" with the stock data during install.
- Forged four-piston caliper for a firmer, less flexy pedal
- 330x28mm Dacromet-coated rotor for added heat capacity and corrosion resistance
- Vehicle-specific bracket for a clean, spacer-free fit
- Stainless steel lines swapped in alongside the caliper kit
Installation Gallery
