Lynk & Co 03 Big Brake Kit Upgrade / TTSPORT Racing AP9660

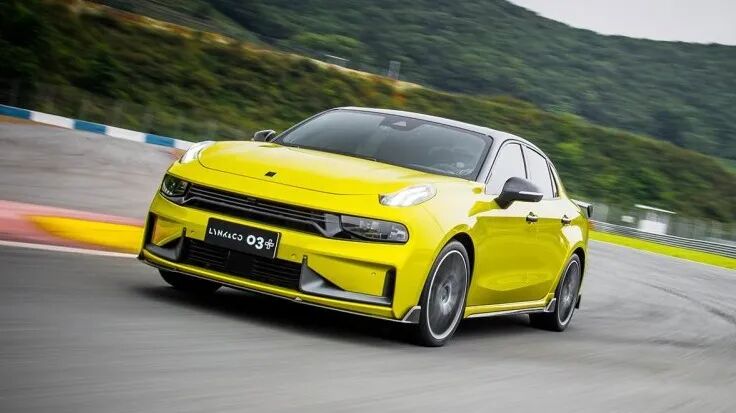

The Lynk & Co 03 was the brand's first sedan and the first car built on the CMA platform, packing a 2.0TD engine and 8-speed automatic good for 254 hp, 350 N·m of torque, and a 0-60 sprint in the mid-5-second range. That kind of straight-line pace deserves brakes to match, so this build swapped the factory calipers for a full front-and-rear TTSPORT big brake kit.
Wheel size on this car is 19 inches, plenty of room to move up to a six-piston front caliper without spacers or wheel changes. The owner went all in: a proper six-piston/four-piston front-and-rear setup instead of just addressing the front axle.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | Lynk & Co 03 sedan, CMA platform, 19-inch wheels |
| Front caliper | TTSPORT AP9660 forged six-piston fixed caliper |
| Front rotor | TTSPORT 380mm x 28mm high-carbon heat-treated rotor |
| Rear caliper | TTSPORT AP9440 forged four-piston fixed caliper |
| Rear rotor | TTSPORT 380mm x 28mm high-carbon heat-treated rotor |
| Rear EPB actuator | TT Tesla-style electric parking brake motor |
Why It Works
A forged fixed caliper doesn't flex under load the way a sliding single-piston OEM caliper can, so pedal effort goes into clamping the rotor instead of deforming the caliper body — that's the difference between a firm pedal and a mushy one. Stepping up to six pistons up front also spreads clamping force across more pad area, which helps even pressure distribution and pad wear.
- Larger 380x28mm rotors on both axles add mass and surface area, which means more heat capacity and less fade under repeated hard stops.
- Front and rear were upgraded together rather than just the front axle, so front-to-rear brake balance stays proportional instead of overloading one end.
- The rear AP9440 caliper pairs with a Tesla-style small motor, so the car's electric parking brake keeps working after the swap.
- Both calipers clear the factory 19-inch wheels with no spacers needed.
Installation Gallery
What wheel size does this Lynk & Co 03 kit fit behind?
What's included in the front and rear kits?
Does the rear caliper work with the car's electric parking brake?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
