Seat Big Brake Kit Upgrade / TTSPORT Classic 5440
Seat built its reputation on the idea that a fun-to-drive car needs brakes that can back up the powertrain, not just look the part. The car in this case had the usual factory setup underneath — fine for daily driving, but soft under repeated hard stops and prone to fade once things got hot. The owner's fix was TTSPORT's TT5440 forged four-piston big brake kit, sized to bolt in behind the car's stock 18-inch wheels with no spacers or wheel changes needed.

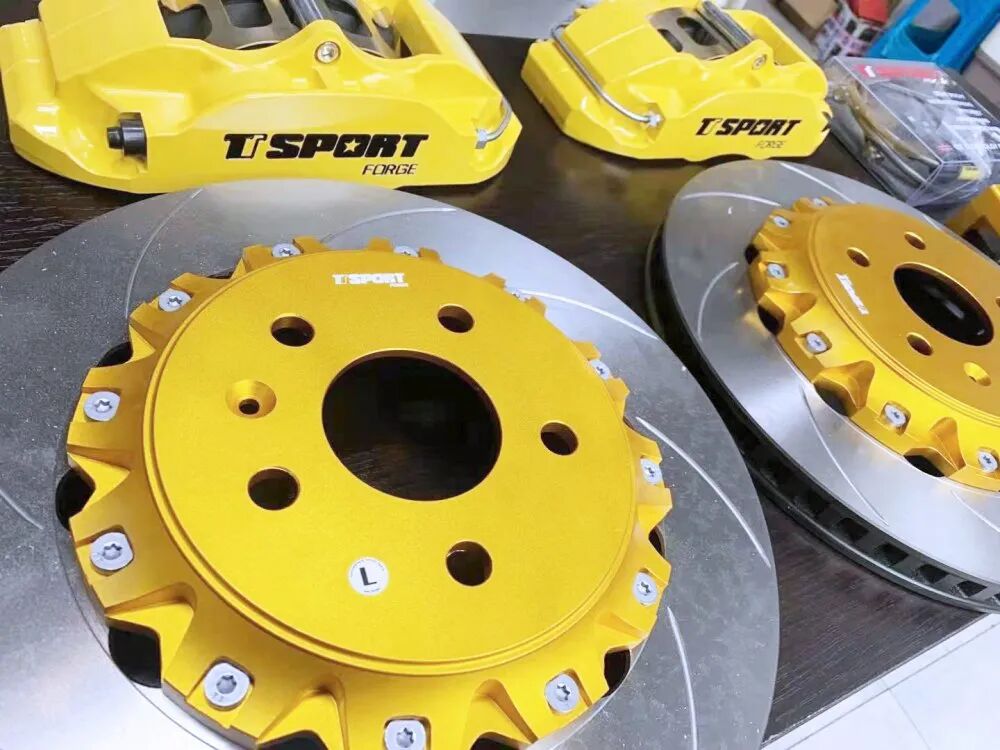

The install swapped the factory single-piston sliding caliper for TTSPORT's TT5440, a two-piece forged-aluminum four-piston caliper from the Classic Series. It's paired with a 330x28mm high-carbon heat-treated rotor and new stainless steel brake lines — a complete front axle upgrade built around this specific car's hub and wheel dimensions.
Vehicle & Kit Specs
Here's the hardware breakdown for this build:
| Item | Specification |
|---|---|
| Vehicle | Seat, factory 18-inch wheels |
| Front caliper | TTSPORT TT5440 forged four-piston caliper (Classic Series) |
| Front rotor | TTSPORT 330x28mm high-carbon heat-treated curved rotor |
| Brake lines | TTSPORT stainless steel braided lines with custom fitting color option |
The TT5440 caliper used in this install carries the following factory specifications:
| Brake Caliper | |
|---|---|
| Series | Classic Series |
| Model / Application | 5440 |
| Axle Position | Front |
| Piston Count | 4-piston |
| Piston Type | Star-profile racing pistons without dust boots |
| Piston Diameter | 38 mm × 2 / 41 mm × 2 |
| Caliper Dimensions | L 276 mm × W 138 mm × H 80 mm |
| Total Piston Area | 49.1 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 2.65 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 17 in or larger |
| Recommended Rotor Size | Ø330–345 mm × 28 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 86 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
A two-piece forged caliper body flexes less under pedal pressure than a cast single-piston slider, which means more of the driver's pedal input goes into clamping force instead of getting absorbed by caliper flex — that's the difference between a mushy pedal and a firm one.
- Four-piston clamping spreads pad pressure more evenly across the rotor face than the factory single-piston design.
- The 330x28mm high-carbon heat-treated rotor holds more thermal mass than the stock disc, which is why the fade the owner had noticed on the factory brakes was reduced.
- The caliper and rotor combination is sized to clear the car's factory 18-inch wheels — no spacers or wheel swap required.
Beyond the visual upgrade of a bigger caliper filling out the wheel, the stainless steel lines cut down on the pedal softness that comes from a rubber line ballooning under pressure, and together with the new pads, the changes shortened stopping distance versus the stock setup.
Installation Gallery
FAQ
What wheel size does the TTSPORT TT5440 kit fit on this Seat?
What's included in the TT5440 upgrade kit installed on this Seat?
Does the new rotor help with brake fade compared to the factory setup?
