Li Auto Mega Big Brake Kit Upgrade / TTSPORT Mono EMB6
A soft, long-travel pedal under hard braking is one of the clearest signs that a stock brake setup has hit its limit. For this Li Auto Mega, the fix came from Fish Head Auto Shop (鱼头车铺), who installed a TTSPORT Mono Series EMB6 big brake kit up front — a forged six-piston caliper paired with a 355mm high-carbon, heat-treated rotor, built to bolt up behind the vehicle's 18-inch wheels.
The Mega is a large, heavy electric MPV, and mass like that puts real demand on the front brakes every time the driver gets on the pedal hard — whether that's a highway off-ramp or a full stop in traffic. Swapping in a bigger, stiffer caliper and rotor gives the system more clamping force and more thermal mass to work with, without touching the wheels or suspension.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | Li Auto Mega, 18-inch wheels |
| Front caliper | TTSPORT EMB6 forged monobloc six-piston caliper |
| Front rotor | TTSPORT 355mm high-carbon, heat-treated rotor |
| Bracket | Custom vehicle-specific caliper bracket |
| Pads / lines | TTSPORT high-performance street pads, stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts, and fasteners |
The EMB6 caliper used on this build comes from TTSPORT's Mono Series lineup. Its full spec sheet is below.
| Brake Caliper | |
|---|---|
| Series | Mono Series |
| Model / Application | EMB6 |
| Axle Position | Front |
| Piston Count | 6-piston |
| Piston Type | Two-piece heat-insulated pistons without dust boots |
| Piston Diameter | 30 mm × 2 / 34 mm × 2 / 38 mm × 2 |
| Caliper Dimensions | L 382 mm × W 160 mm × H 92 mm |
| Total Piston Area | 55.0 cm² per caliper, all pistons combined |
| Manufacturing Process | Monoblock forged aluminum body |
| Net Weight | 3.25 kg per caliper, without pads |
| Surface Finish | Nickel-plated |
| Recommended Wheel Size | 18 in or larger |
| Recommended Rotor Size | Ø355–405 mm × 32 mm-34 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 101 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
The EMB6 is machined from a single forged block rather than assembled from two halves, with a through-bolt reinforcing rod tying the caliper body together. That one-piece construction resists flex under load, so pedal effort goes into clamping the rotor instead of stretching the caliper.
- Six pistons spread clamping force across a larger pad area, giving the front axle more stopping power and a more stable feel under hard braking.
- Two-piece, external heat-dissipating pistons with optimized seals keep bite consistent during hard or repeated stops rather than fading as things heat up.
- Vented piston design and refined seals produce a more linear, progressive pedal feel, which is especially noticeable at highway speed.
- An aggressively hollowed, lightweight caliper structure sheds heat faster, which slows brake fade and helps the system hold its performance over longer stints.
- Rotor size can be matched to the wheel: TTSPORT offers 355mm, 380mm, or 405mm high-carbon, heat-treated discs for this platform depending on wheel diameter.

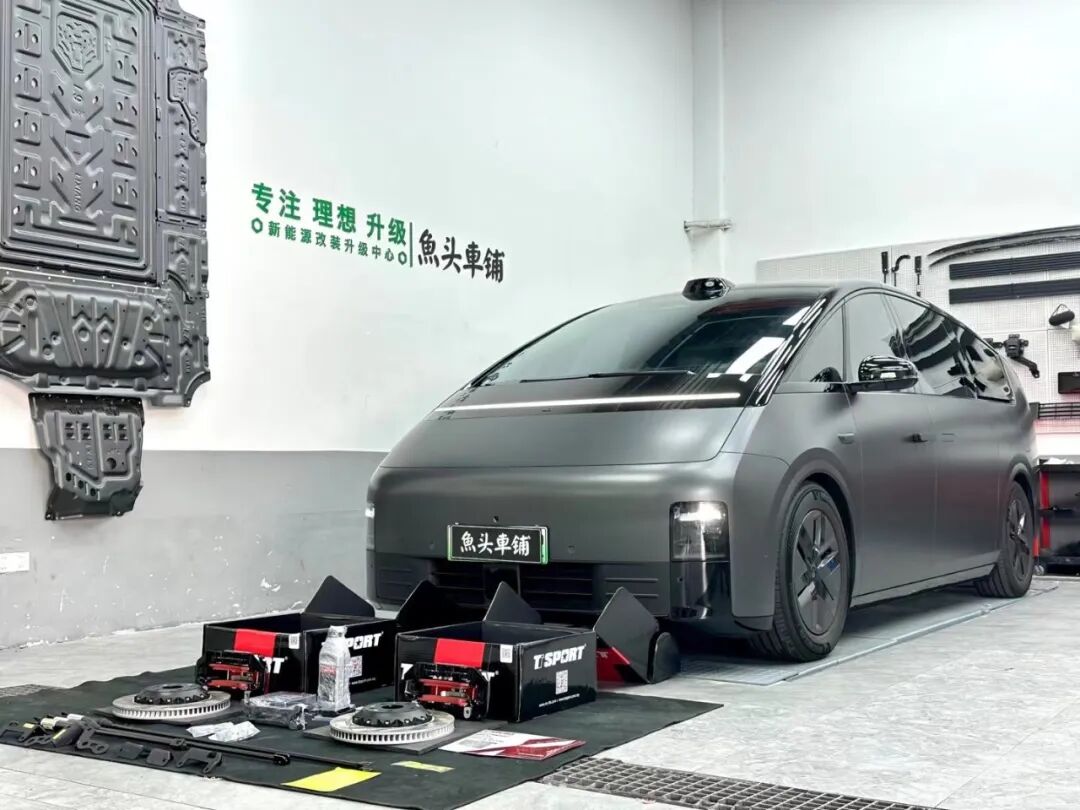

Installation Gallery
FAQ
What vehicle does this TTSPORT EMB6 kit fit?
What size rotor comes with the front kit?
What's included in the EMB6 big brake kit besides the caliper and rotor?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
