Jaguar XJ Big Brake Kit Upgrade / TTSPORT Classic 8657
A classic Jaguar XJ carries itself with a certain reserve — right up until you need the brakes to catch up with the V8. This 2005 XJ got a front-end upgrade built around TTSPORT's TT8657 forged six-piston caliper, a 380mm slotted two-piece rotor, and stainless steel lines, aimed at giving the car braking manners to match its power.
The 2005 Jaguar XJ came with two engine options: the 3.0L V6 XJL6, rated at 179 hp and 300 Nm of torque, and the 4.2L V8 XJL8, rated at 224 hp and 420 Nm. With the extra torque and weight of the V8 in mind, the shop went with the TT8657 front six-piston setup rather than a lighter four-piston option.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | 2005 Jaguar XJ — XJL6 3.0L V6 (179 hp / 300 Nm) or XJL8 4.2L V8 (224 hp / 420 Nm); fits 18-inch and larger wheels |
| Front caliper | TTSPORT TT8657 forged opposed six-piston caliper |
| Front rotor | TT 380mm x 34mm slotted two-piece rotor |
| Lines | TTSPORT stainless steel brake lines |
The TT8657 is a six-piston, opposed-piston caliper. Every part of it — body and mounting bolts included — is forged rather than cast, which TTSPORT states adds roughly 30% more rigidity than a cast caliper of similar layout. That stiffness matters under hard braking: a caliper that flexes less transmits more of the pedal's clamping force directly to the pad, instead of losing it to caliper deflection.
Why It Works
- Forged caliper body and bolts resist fatigue better than cast parts, holding clamping force more consistently over repeated hard stops.
- The 380mm x 34mm slotted two-piece rotor gives more braking area for a more linear pedal feel as the pedal is pressed.
- A piston dust-boot design at each bore helps keep the caliper cleaner internally, which supports easier long-term upkeep.
- The kit is sized to clear factory 18-inch and larger wheels on the XJ, so no wheel swap is required.

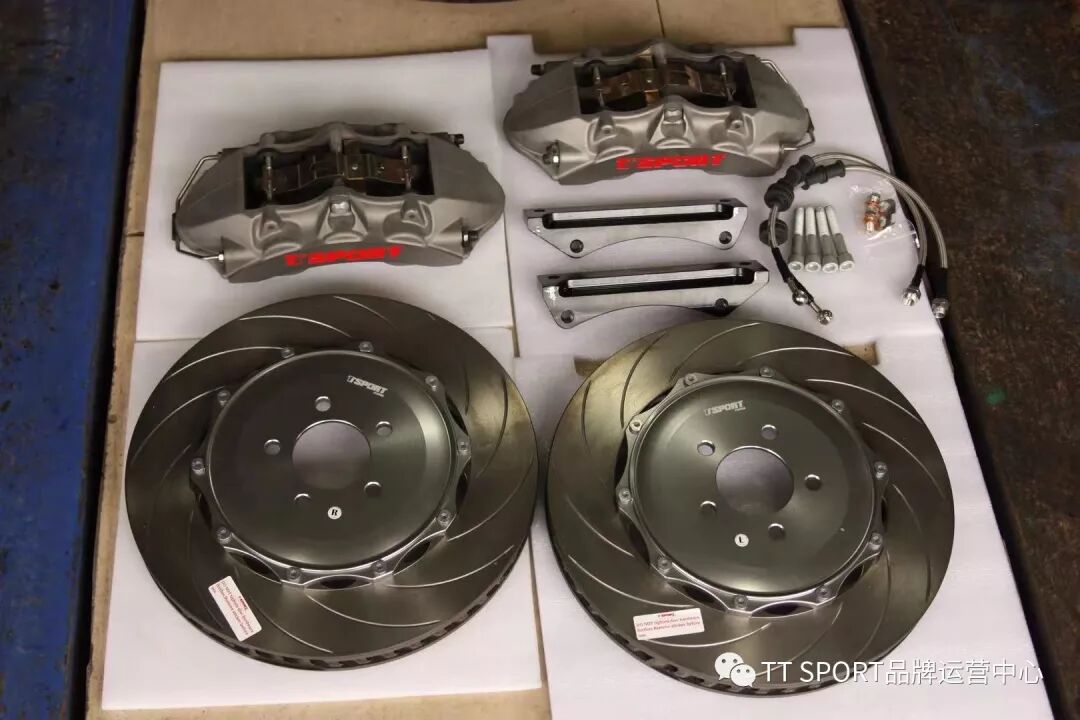

Installation Gallery
What Jaguar XJ models does the TTSPORT TT8657 kit fit?
What's included in the TT8657 front big brake kit?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
