Audi A4 (B9) Big Brake Kit Upgrade / TTSPORT Classic 5440
When the Audi A4 B9 first launched, plenty of owners weren't impressed — from the outside it looked like a facelift with new headlights and a sharper beltline, not much else. Sales numbers proved the skeptics wrong, and for the modifying crowd, the B9 turned out to be a platform with real potential, equally happy low and slammed or pushed into wide-body territory. This particular A4 B9 got its brakes addressed with a TTSPORT Classic 5440 forged four-piston caliper, a Dacromet-coated slotted two-piece rotor, and TTSPORT stainless steel brake lines.
The TTSPORT 5440 caliper covers a wide range of applications across entry-level, mid-range, and premium platforms, and it's a common choice for good reason — the two-piece forged aluminum body keeps the material cost and price reasonable while still delivering the durability forged construction is known for.
Vehicle & Kit Specs
The core hardware on this build: a forged four-piston front caliper, a Dacromet-coated slotted rotor, and stainless steel lines, all sized for the A4 B9's front axle.
| Item | Specification |
|---|---|
| Vehicle | Audi A4 (B9) — 17-inch or larger wheels recommended |
| Front caliper | TTSPORT Classic 5440 forged four-piston caliper, two-piece forged-aluminum body |
| Front rotor | TTSPORT Dacromet-coated slotted two-piece rotor |
| Lines | TTSPORT stainless steel brake lines |
Here's the official spec sheet for the TTSPORT 5440 caliper used on this build:
| Brake Caliper | |
|---|---|
| Series | Classic Series |
| Model / Application | 5440 |
| Axle Position | Front |
| Piston Count | 4-piston |
| Piston Type | Star-profile racing pistons without dust boots |
| Piston Diameter | 38 mm × 2 / 41 mm × 2 |
| Caliper Dimensions | L 276 mm × W 138 mm × H 80 mm |
| Total Piston Area | 49.1 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 2.65 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 17 in or larger |
| Recommended Rotor Size | Ø330–345 mm × 28 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 86 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
The Dacromet coating on the rotor looks like a thin surface treatment, but the process behind it is more involved than it appears. Beyond making the rotor easier to identify at a glance, the coating protects both the rotor and the pad surface — a combined benefit that adds up to more than the sum of its parts.
- Two-piece forged aluminum caliper body resists flex under hard braking, keeping pedal feel firm and consistent compared to a stock caliper.
- Four star-profile pistons spread clamping force across 49.1 cm² of total piston area, improving pad contact and modulation.
- Sized to clear 17-inch or larger wheels with 86 mm of minimum spoke clearance — no spacers needed on the correct wheel offset.

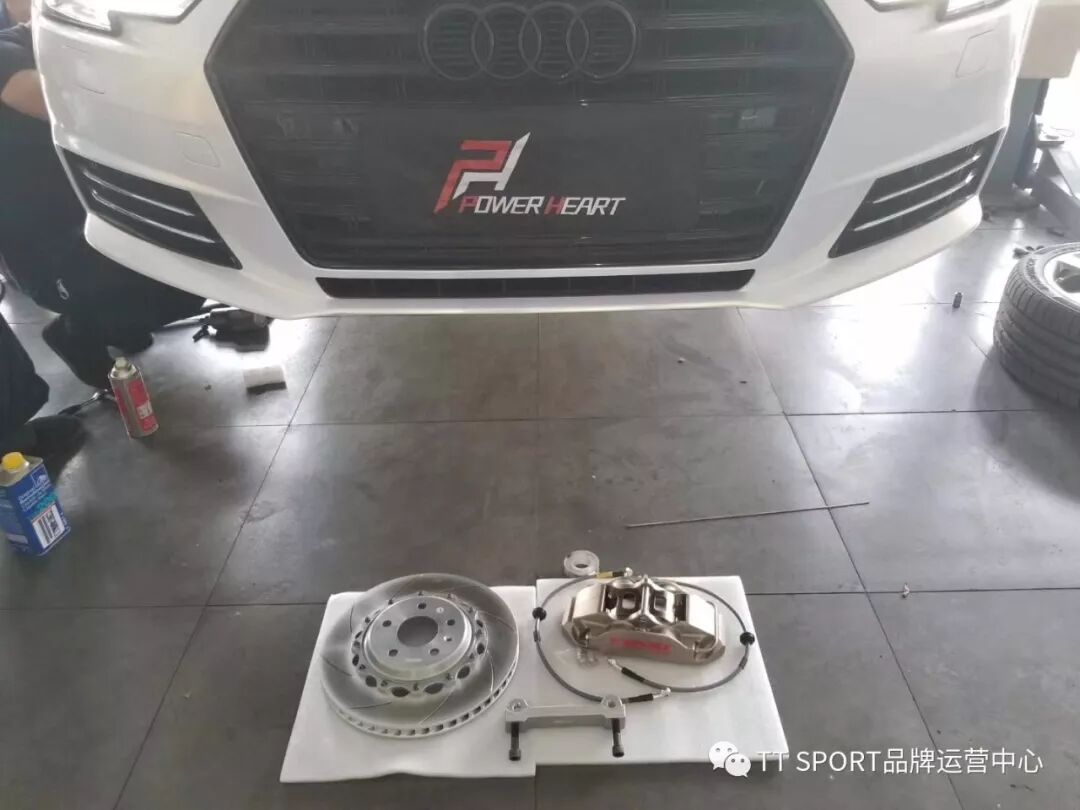

Installation Gallery
What wheel size do I need to run the TTSPORT 5440 kit on an Audi A4 B9?
What's included in this Audi A4 B9 brake upgrade?
