Jaguar XEL Big Brake Kit Upgrade / TTSPORT Classic 8657S
The Jaguar XEL sells on British styling and a sporty character, but its factory brakes don't always back that up. Some owners try to close the gap with caliper covers — plastic shells clamped over the stock single-piston caliper to fake a big-brake look. It's a cosmetic fix for a mechanical problem, and it comes with real downsides.

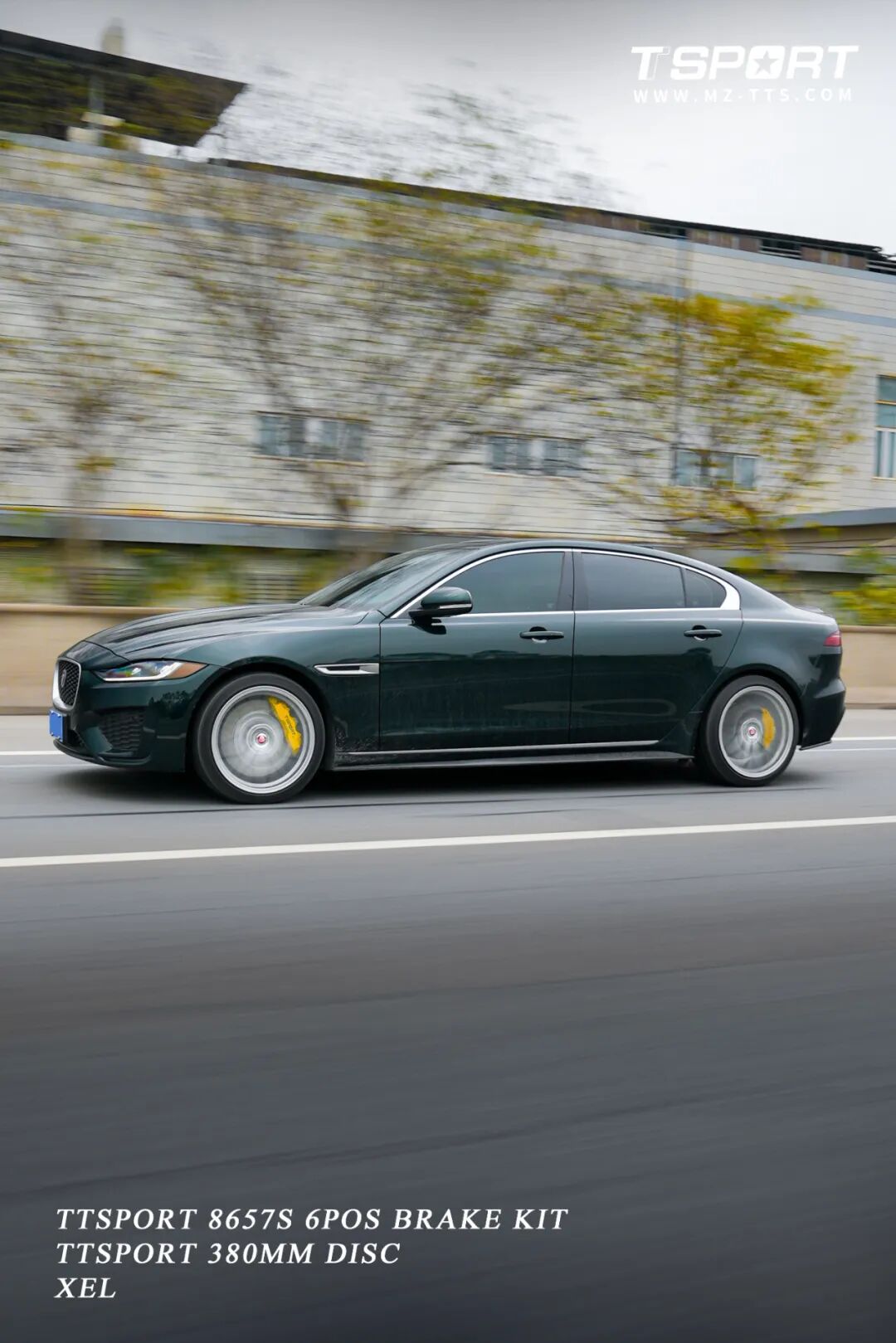

This XEL owner skipped the cover and went straight to a functional upgrade: a TTSPORT Classic Series 8657S six-piston caliper kit paired with a 380mm rotor, running behind the car's stock 19-inch wheels.
The Caliper Cover Trap
Caliper covers clip or bolt onto the outside of the stock caliper. They don't touch the hydraulic system, the piston, or the pad — they're purely visual. That creates three practical problems:
- They're not always securely mounted, and can loosen or come off under hard braking or at highway speed.
- They add no cooling capacity, so the underlying caliper and rotor still overheat the same way, leading to the same fade under sustained braking.
- They don't change piston count, pad area, or rotor mass — stopping distance stays exactly where it was.
Vehicle & Kit Specs
Here's the hardware breakdown for this Jaguar XEL build:
| Item | Specification |
|---|---|
| Vehicle | Jaguar XEL, 19-inch factory wheels |
| Front caliper | TTSPORT 8657S forged six-piston caliper |
| Front rotor | TTSPORT 380mm high-carbon rotor |
| Bracket | Custom vehicle-specific caliper bracket |
| Pads / lines | TTSPORT high-performance brake pads, TTSPORT stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts, and fastening hardware |
Below is the full TTSPORT 8657S spec sheet for the caliper used in this kit:
| Brake Caliper | |
|---|---|
| Series | Classic Series |
| Model / Application | 8657S |
| Axle Position | Front |
| Piston Count | 6-piston |
| Piston Type | Two-piece heat-insulated pistons with dust boots |
| Piston Diameter | 30 mm × 2 / 34 mm × 2 / 38 mm × 2 |
| Caliper Dimensions | L 350 mm × W 165 mm × H 92.64 mm |
| Total Piston Area | 55.0 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 4.05 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 18 in or larger |
| Recommended Rotor Size | Ø355–405 mm × 32–34 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 107 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
- The 8657S is a two-piece forged aluminum caliper, not a floating single-piston unit. A rigid, fixed body flexes less under load, so pedal input translates into clamping force more directly — the "vague" feel of a stock caliper largely comes from body flex, not pad material.
- Six pistons in a progressive layout (30mm/34mm/38mm pairs) spread clamping force more evenly across the pad, which is what gives the linear, controllable pedal feel TTSPORT describes for this caliper.
- Two-piece heat-insulated pistons with dust boots handle sustained heat better than stock pistons, which matters most on repeated hard stops where OEM brakes start to fade.
- A vehicle-specific bracket is engineered around the XEL's factory 19-inch wheel geometry, so the kit clears the stock wheel with no spacers required.
Installation Gallery
Does the TTSPORT 8657S big brake kit fit the Jaguar XEL's factory 19-inch wheels?
What rotor size does the Jaguar XEL use with the 8657S caliper?
What's included in this Jaguar XEL big brake kit?
