Honda Odyssey Big Brake Kit Upgrade / TTSPORT Classic 5440
The Honda Odyssey is built like a family shuttle first and a driver's car second — big cabin, comfortable ride, room for everyone. But hauling more people and cargo than a sedan means the brakes are working harder every time they're asked to slow the vehicle down. This case swaps the factory setup for a TTSPORT 5440 forged big brake kit, giving a family hauler brakes that can actually match its curb weight.
The project: a full front brake upgrade for a Honda Odyssey used as everyday family transport. The owner wanted more braking margin without touching the car's comfort-focused character — just a caliper, rotor, and line swap that bolts in and does its job.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | Honda Odyssey (MPV / minivan) |
| Front caliper | TTSPORT 5440 forged four-piston caliper, Classic Series, custom Tiffany blue finish |
| Front rotor | TTSPORT 330x28mm Dacromet-coated three-curve rotor |
| Lines | TTSPORT stainless steel braided brake lines |
The TT5440 caliper used in this build is documented in TTSPORT's official spec sheet below.
| Brake Caliper | |
|---|---|
| Series | Classic Series |
| Model / Application | 5440 |
| Axle Position | Front |
| Piston Count | 4-piston |
| Piston Type | Star-profile racing pistons without dust boots |
| Piston Diameter | 38 mm × 2 / 41 mm × 2 |
| Caliper Dimensions | L 276 mm × W 138 mm × H 80 mm |
| Total Piston Area | 49.1 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 2.65 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 17 in or larger |
| Recommended Rotor Size | Ø330–345 mm × 28 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 86 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
The TT5440 body is forged in two pieces rather than cast, which gives the caliper more structural rigidity under clamping load — a stiffer body flexes less when the pads squeeze the rotor, so more of the pedal input actually translates into clamping force instead of getting absorbed by the caliper itself.
The rotor side of the kit uses a Dacromet-coated three-curve design at 330x28mm, which the source notes has a higher friction coefficient than a standard rotor, directly improving stopping performance. Stainless steel lines round out the kit — braided stainless resists ballooning under hydraulic pressure the way rubber lines can, which keeps the pedal response consistent.
- Forged two-piece caliper body for a stiffer, more consistent clamp
- Dacromet three-curve rotor for a higher friction coefficient than stock
- Stainless steel lines for firmer, more consistent pedal feel

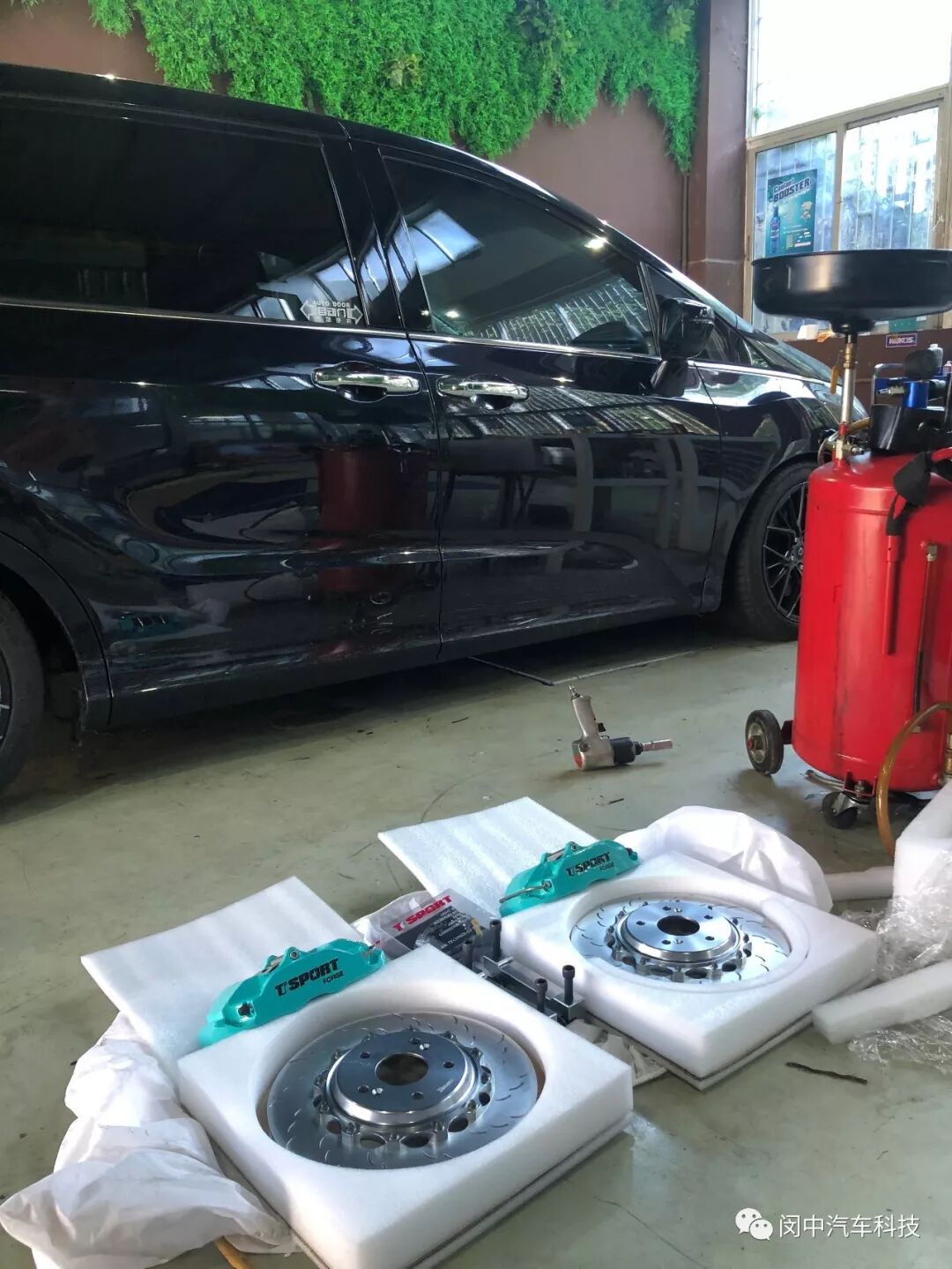

Installation Gallery
What TTSPORT kit was installed on this Honda Odyssey?
Why put a big brake kit on a family minivan like the Odyssey?
Can the TT5440 caliper be finished in a custom color?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
