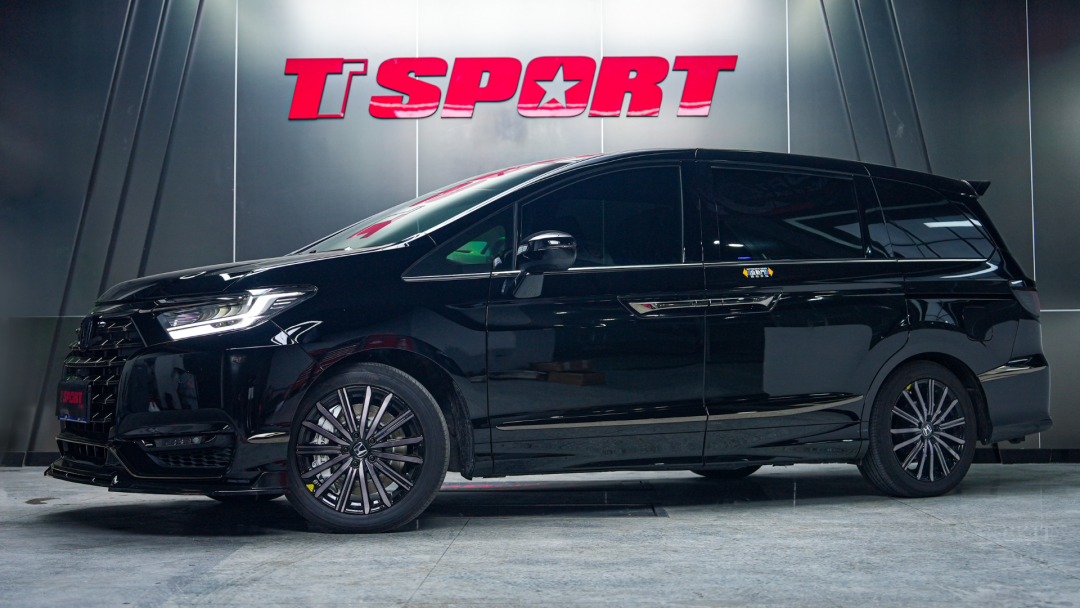

Honda Odyssey Big Brake Kit Upgrade / TTSPORT Slim SL6
Japanese OEM brake systems are usually tuned for durability and everyday economy, not for hard stops. Push a stock Odyssey's brakes in an emergency or on a long downhill grade and that soft, sinking pedal shows up fast — and it chips away at driver confidence right when you need it most. This case swaps the factory setup for a TTSPORT SL6 six-piston big brake kit that bolts on behind the stock 18-inch wheels.
TTSPORT designed the SL6 kit specifically for owners who don't want to change wheels or add a flange adapter to fit a bigger brake. The six-piston caliper drops in behind factory 17-18 inch wheels, cutting both the install complexity and the cost of the upgrade compared to a kit that forces a wheel swap.
With the caliper and rotor mounted, the factory wheel goes back on with no spacers and no rubbing. The six unequal-diameter pistons apply clamping force more evenly across the pad, which is what gives the pedal a firmer, more linear feel instead of the vague travel of the stock single or dual-piston caliper.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | Honda Odyssey, factory 18-inch wheels |
| Front caliper | TTSPORT SL6 two-piece forged six-piston caliper |
| Front rotor | TTSPORT 355mm high-carbon rotor |
| Bracket | Custom vehicle-specific caliper bracket |
| Pads / lines | TTSPORT high-performance brake pads, stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts, and fixing hardware |
Below is the full published spec sheet for the SL6 caliper used in this build.
| Brake Caliper | |
|---|---|
| Series | Slim Series |
| Model / Application | SL6 |
| Axle Position | Front |
| Piston Count | 6-piston |
| Piston Type | One-piece heat-insulated pistons |
| Piston Diameter | 28 mm × 2 / 30 mm × 2 / 36 mm × 2 |
| Caliper Dimensions | L 350 mm × W 135 mm × H 120 mm |
| Total Piston Area | 46.8 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 3.60 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 17 in or larger |
| Recommended Rotor Size | Ø330–355 mm × 28 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 82 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
- Direct fit on 17-18 inch OEM wheels — no spacers, no flange adapter, no need to buy new wheels to run the bigger caliper and rotor.
- Two-piece forged caliper body with a through-bolt tie rod adds rigidity, so the caliper flexes less under hard braking and the pedal feels more solid and consistent.
- Six unequal-diameter pistons spread clamping force more evenly across the pad, giving a more linear brake feel and better modulation than a single or dual-piston OEM caliper.
- An open, lightweight caliper design improves heat dissipation, which helps reduce thermal fade and keeps braking performance more consistent under repeated hard stops.
- The 355mm high-carbon rotor offers better thermal stability and wear resistance than a standard rotor, which should extend service life on the brake system as a whole.
Installation Gallery
Does the TTSPORT SL6 kit fit the Honda Odyssey's factory 18-inch wheels?
What's included in this SL6 big brake kit for the Odyssey?
Why is the SL6 caliper stiffer than the stock Odyssey caliper?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
