Ford Mustang Big Brake Kit Upgrade / TTSPORT Evolution EB6

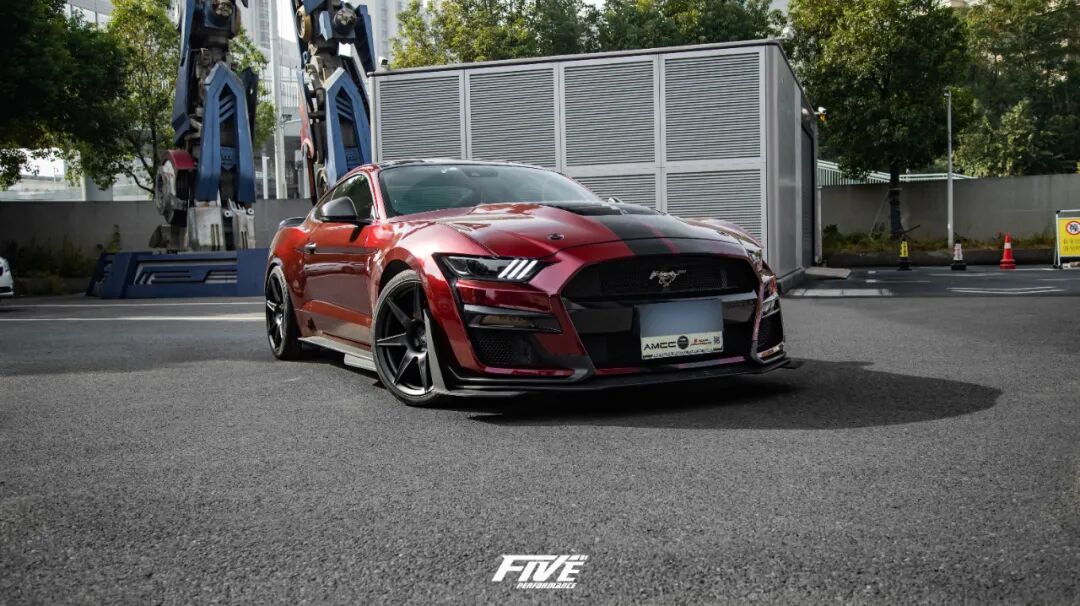

A Mustang's engine only tells half the story — when the pedal goes soft under hard, repeated braking, driver confidence drops fast. This case comes from one of our partner shops: a Ford Mustang fitted with the TTSPORT Evolution Series EB6 big brake kit up front, aimed at giving the car a firmer, more linear pedal and more margin for hard stops.
Behind the Mustang's 20-inch wheel, the shop swapped in the TTSPORT EB6 forged six-piston caliper and a 390mm high-carbon heat-treated rotor. The goal wasn't just bigger hardware for looks — it was a stiffer caliper and more rotor mass to hold up under repeated hard braking without the pedal feeling like it's sinking.
Vehicle & Kit Specs
The front kit shipped as a complete axle set: EB6 caliper, rotor, a custom vehicle-specific bracket, street pads, stainless lines, brake fluid, and the mounting hardware needed to bolt it on without piecing together parts from different suppliers.
| Item | Specification |
|---|---|
| Vehicle | Ford Mustang, 20-inch wheels |
| Front caliper | TTSPORT EB6 forged six-piston caliper (Evolution Series) |
| Front rotor | TTSPORT 390mm high-carbon heat-treated rotor |
| Bracket | Custom vehicle-specific caliper bracket |
| Pads / lines | TTSPORT high-performance street pads, stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts, and fasteners |
The kit installed here is built around the TTSPORT EB6 caliper. Here's the full spec sheet for that caliper:
| Brake Caliper | |
|---|---|
| Series | Evolution Series |
| Model / Application | EB6 |
| Axle Position | Front |
| Piston Count | 6-piston |
| Piston Type | Two-piece heat-insulated pistons with dust boots |
| Piston Diameter | 30 mm × 2 / 34 mm × 2 / 38 mm × 2 |
| Caliper Dimensions | L 335 mm × W 160 mm × H 102 mm |
| Total Piston Area | 55.0 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 4.6 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 19 in or larger |
| Recommended Rotor Size | Ø380–410 mm × 36 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 103 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
The EB6 is a two-piece forged caliper, and it's the first in the line to use a through-bolt reinforcement bar tying the two halves together. That extra structural link is what keeps the caliper from flexing under hard braking — flex is what turns a firm pedal into a mushy one, since some of your pedal effort gets absorbed by the caliper body instead of clamping the pad.
Inside, two-piece heat-insulated pistons with dust boots keep seal temperatures in check, so the caliper keeps working consistently through repeated hard stops instead of fading as things heat up.
- Six-piston, three-diameter (30/34/38mm) asymmetric layout evens out clamping pressure across the pad, which is what gives the pedal a more linear feel instead of an abrupt bite.
- The 390mm high-carbon heat-treated rotor adds mass and surface area over the stock disc, giving the system more heat capacity for repeated hard braking.
- Rotor size is offered in 380/390/410mm depending on wheel size, so the setup can be matched to the vehicle's wheel clearance rather than forcing one rotor size on every fitment.
Installation Gallery
FAQ
What TTSPORT kit was installed on this Ford Mustang?
Does the EB6 kit fit behind the Mustang's factory wheels?
Can rotor size be adjusted for different wheel sizes?
Why does the EB6 caliper use an asymmetric piston layout?
