Denza Titanium 7 Big Brake Kit Upgrade / TTSPORT Slim SL6

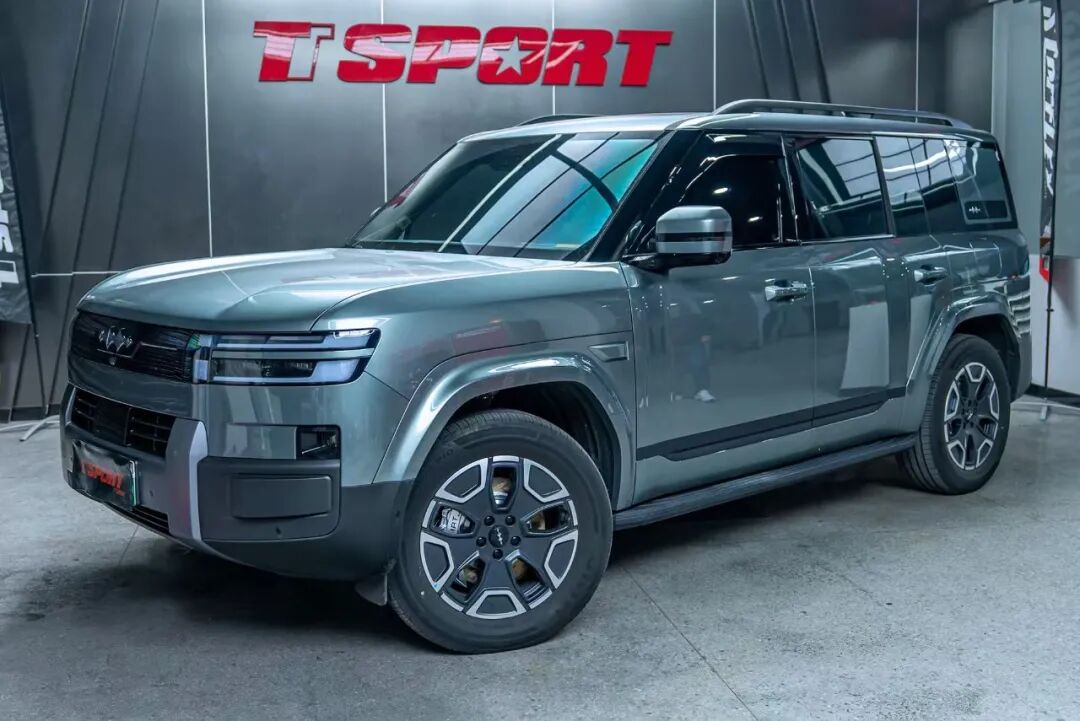

The Fangchengbao Titanium 7 was never built to be a mild-mannered electric SUV. Big body, reinforced frame, real off-road capability — but that curb weight comes with a tradeoff owners keep bringing up: the factory brakes feel conservative once speeds climb.
This build swaps the stock front brakes for a TTSPORT Slim SL6 six-piston kit, chosen specifically because it slots in behind the Titanium 7's factory 18-inch wheels — no flange adapters, no track-width changes, no compromises to fit a bigger rotor.
The Problem: Heavy EV, Conservative Stock Brakes
Owner feedback on the Titanium 7 is consistent: low-speed city driving is fine, but the pedal turns soft and vague under repeated high-speed braking. It's not that the truck fails to stop — it's that the stock system runs out of braking-force reserve and pedal linearity once the mass of the vehicle and its direct EV power delivery get factored in. For a heavy, quick-accelerating SUV, that margin matters, and it's what pushed owners toward a brake upgrade rather than any other mod.
Vehicle & Kit Specs
Here's exactly what went on this Titanium 7, front axle only, retaining the factory 18-inch wheel:
| Item | Specification |
|---|---|
| Vehicle | Fangchengbao Titanium 7, 18-inch factory wheels |
| Front caliper | TTSPORT Slim SL6 six-piston caliper |
| Front rotor | TTSPORT 355mm rotor (curved-vane design) |
| Bracket | Vehicle-specific custom caliper bracket |
| Pads / lines | TTSPORT high-performance pads, stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts, and installation hardware |
The SL6 caliper itself is a Slim Series product built to clear smaller factory wheels — full official specs below.
| Brake Caliper | |
|---|---|
| Series | Slim Series |
| Model / Application | SL6 |
| Axle Position | Front |
| Piston Count | 6-piston |
| Piston Type | One-piece heat-insulated pistons |
| Piston Diameter | 28 mm × 2 / 30 mm × 2 / 36 mm × 2 |
| Caliper Dimensions | L 350 mm × W 135 mm × H 120 mm |
| Total Piston Area | 46.8 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 3.60 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 17 in or larger |
| Recommended Rotor Size | Ø330–355 mm × 28 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 82 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
The kit ships as a complete front axle solution — caliper, rotor, custom bracket, pads, lines, and hardware — sized to bolt onto the Titanium 7's existing hub without touching wheel offset or spoke clearance.
Why It Works
- Six opposed pistons in a symmetrical layout spread clamping force across a larger pad area, which sharpens initial bite and keeps braking force more consistent through repeated stops — the scenario where the stock brakes went soft.
- The SL6's compact caliper dimensions and 355mm rotor were matched to the Titanium 7's factory 18-inch wheel, so the kit fits with no flange spacers, no change to track width, and no risk to wheel-bearing geometry.
- With more usable clamping force in reserve, pedal response becomes more proportional to pedal travel — drivers describe it as brakes that respond "as you press," rather than needing a deeper stab to get the same stop.
Installation Gallery
Will the TTSPORT SL6 kit fit the Fangchengbao Titanium 7's stock 18-inch wheels?
What's included in this TTSPORT SL6 big brake kit?
How many pistons does the TTSPORT SL6 caliper use, and what's the piston layout?
