BMW iX Big Brake Kit Upgrade / TTSPORT Classic 8657S
A BMW iX built for spirited driving and the occasional track day doesn't get much help from its stock brakes once things get hot — pedal feel goes soft and stopping power tapers off just when you need it most. This install case from BAC (彼斯博克) swaps the factory front setup for a TTSPORT Classic Series 8657S big brake kit, aimed squarely at giving the iX a firmer pedal and more consistent stopping power under sustained hard driving.

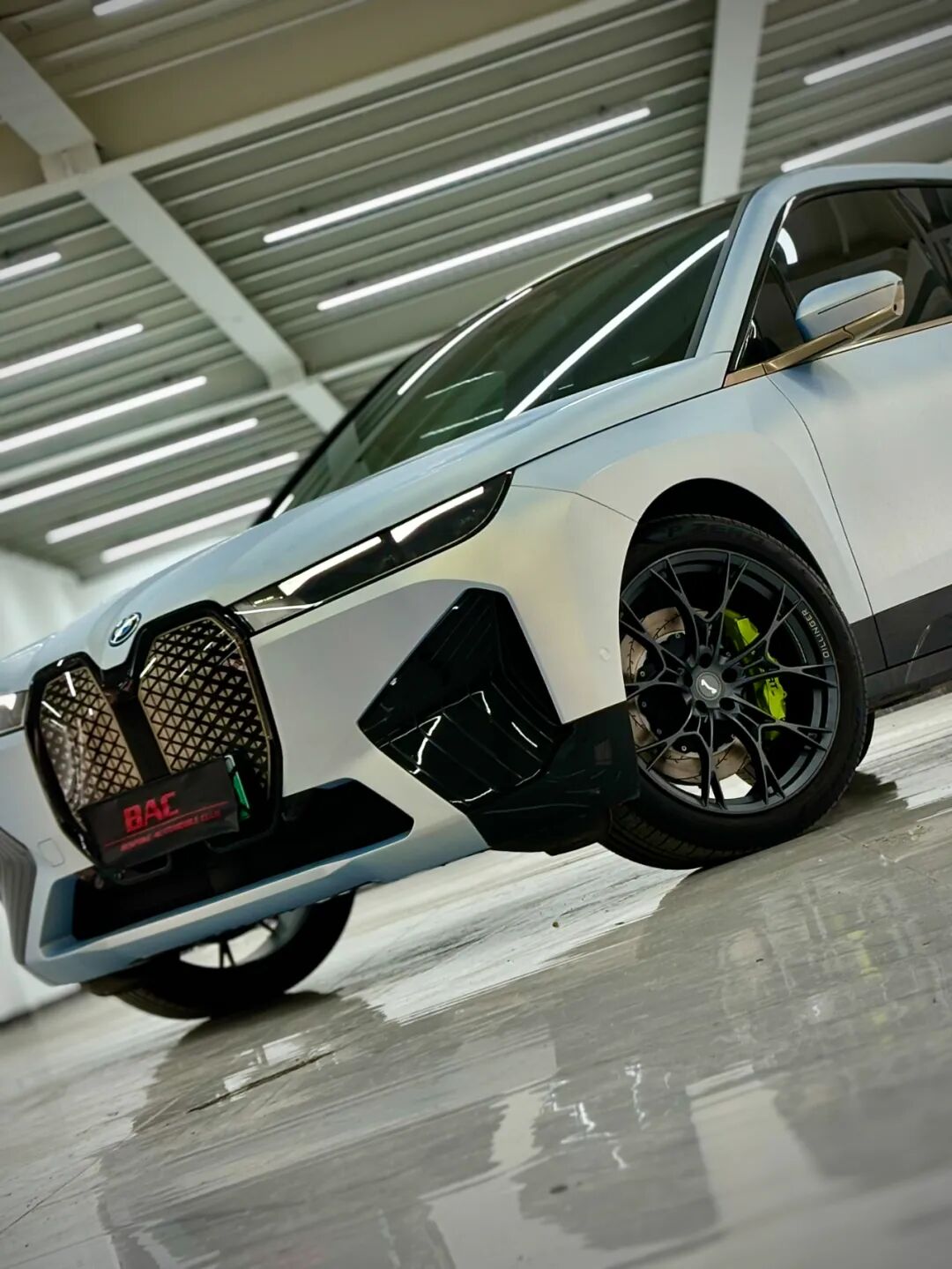

The car runs 22-inch wheels, and the front axle was upgraded to TTSPORT's TT8657S six-piston caliper paired with a 405mm carbon high-temperature-treated rotor — a straightforward front-axle upgrade rather than a full four-corner conversion.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | BMW iX, 22-inch wheels |
| Front caliper | TTSPORT TT8657S six-piston caliper (Classic Series) |
| Front rotor | TTSPORT 405mm carbon high-temperature-treated rotor |
| Bracket | Custom vehicle-specific caliper bracket |
| Pads / lines | TTSPORT high-performance street pads, stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts, and fixing hardware |
Below is TTSPORT's official spec sheet for the 8657S caliper used in this build.
| Brake Caliper | |
|---|---|
| Series | Classic Series |
| Model / Application | 8657S |
| Axle Position | Front |
| Piston Count | 6-piston |
| Piston Type | Two-piece heat-insulated pistons with dust boots |
| Piston Diameter | 30 mm × 2 / 34 mm × 2 / 38 mm × 2 |
| Caliper Dimensions | L 350 mm × W 165 mm × H 92.64 mm |
| Total Piston Area | 55.0 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 4.05 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 18 in or larger |
| Recommended Rotor Size | Ø355–405 mm × 32–34 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 107 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
The 8657S is TTSPORT's revised take on the earlier TT8657, with changes to piston sizing, caliper venting, and overall caliper dimensions. It carries over the two-piece forged aluminum body that keeps the caliper stiff while limiting unsprung mass — weight that, when reduced, helps the suspension do its job more effectively.
Why It Works
- Two-piece forged construction keeps the caliper body rigid under load, so pedal input goes into clamping force instead of caliper flex — the core fix for a soft, mushy stock pedal.
- The two-piece heat-insulated pistons resist heat transfer into the brake fluid, helping guard against the fade that shows up on long descents or repeated hard stops.
- Progressive piston sizing (30/34/38mm) applies pad pressure gradually across the six pistons, which is what gives the pedal a linear, predictable feel rather than an on/off bite.
- The 405mm rotor adds mass and surface area over the stock disc, giving the system more thermal capacity to absorb and shed heat during sustained braking.
- With a 107mm minimum spoke clearance requirement, the 8657S was engineered to fit behind the iX's 22-inch wheels without spacers.
Installation Gallery
