BMW 7 Series Big Brake Kit Upgrade / TTSPORT Slim SL8
The BMW 7 Series is built for comfort first, but a stiffer chassis and available rear-wheel steering mean plenty of owners now push it harder than its badge suggests. The factory brakes on a car this heavy and this fast were never going to keep up with that shift in mindset, so this build swaps in a TTSPORT Slim Series SL8 eight-piston front caliper matched to larger front and rear carbon-ceramic rotors.
What's easy to overlook on a 7 Series is that acceleration was never the limiting factor — braking confidence is. A flagship sedan carrying this much weight needs a caliper that can hold a consistent bite lap after lap, stop after stop, without the pedal going soft when things heat up.
Vehicle & Kit Specs

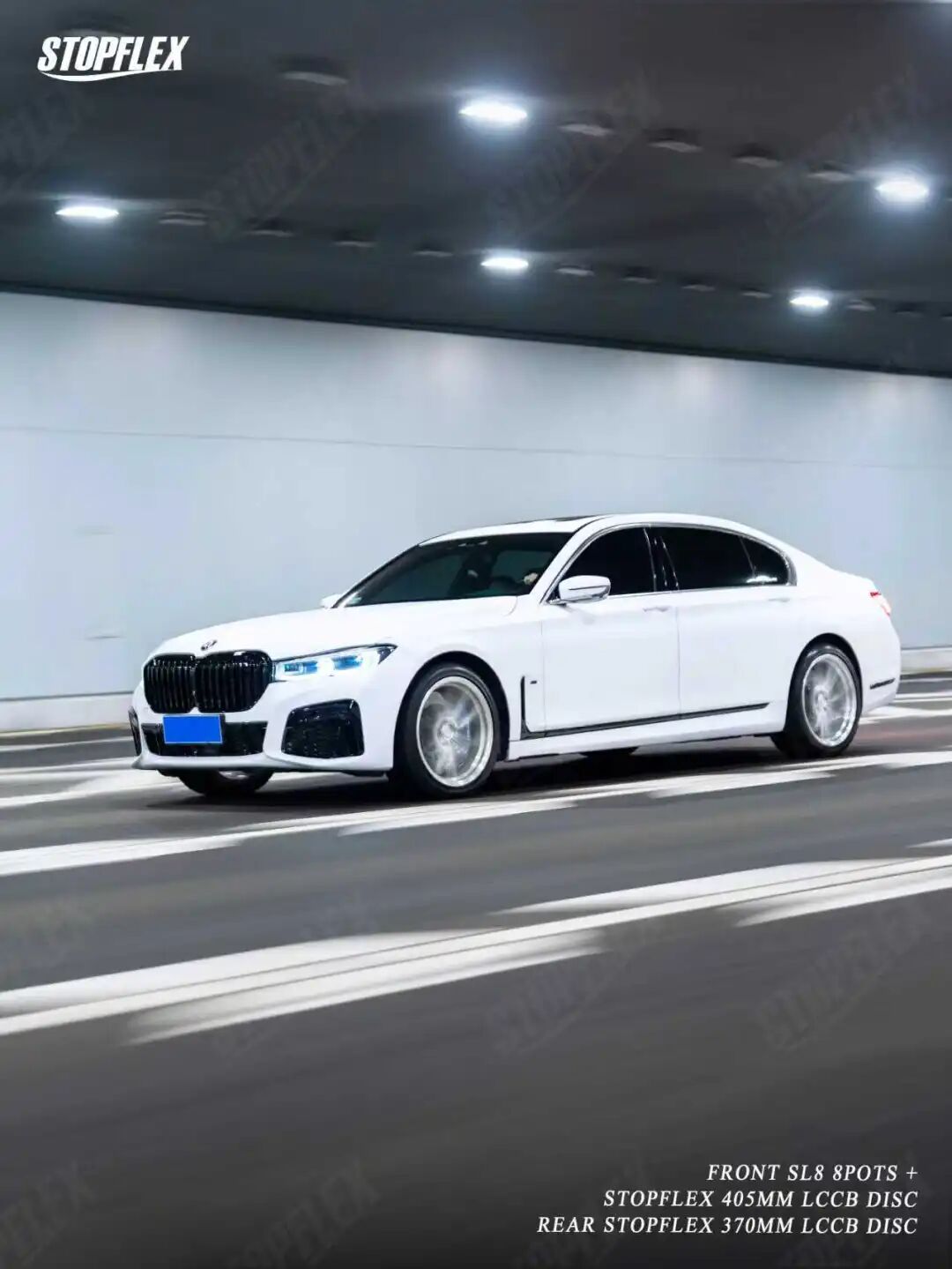

This install went on a BMW 7 Series riding on 20-inch wheels, using a front TTSPORT SL8 eight-piston caliper setup with matching front and rear carbon-ceramic rotors.
| Item | Specification |
|---|---|
| Vehicle | BMW 7 Series, 20-inch wheels |
| Front caliper | TTSPORT Slim SL8 forged eight-piston caliper |
| Front rotor | 405mm carbon-ceramic rotor |
| Rear rotor | 370mm carbon-ceramic rotor |
| Bracket | Vehicle-specific caliper bracket |
| Pads / lines | Carbon-ceramic brake pads, stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts, and fixing hardware |
Below is the official spec sheet for the TTSPORT SL8 caliper used up front on this build.
| Brake Caliper | |
|---|---|
| Series | Slim Series |
| Model / Application | SL8 |
| Axle Position | Front |
| Piston Count | 8-piston |
| Piston Type | One-piece heat-insulated pistons with dust boots |
| Piston Diameter | 28 mm × 4 / 32 mm × 4 |
| Caliper Dimensions | L 391 mm × W 128 mm × H 144 mm |
| Total Piston Area | 56.8 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 5.20 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 19 in or larger |
| Recommended Rotor Size | Ø380–405 mm × 34 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 90 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
The kit ships as a complete front-axle package: the SL8 caliper, a vehicle-specific bracket, carbon-ceramic pads, stainless lines, and the fluid and hardware needed to finish the job — no improvised parts sourcing.
Why It Works
- A forged two-piece SL8 caliper body resists flex under load better than a stock caliper, so pedal input translates directly into clamping force instead of getting soaked up by caliper deformation.
- The 405mm front and 370mm rear carbon-ceramic rotors add mass and surface area at the wheel, giving the system more heat capacity to resist fade during repeated hard stops.
- Eight pistons split across 28mm and 32mm bores spread roughly 56.8 cm² of clamping area across the pad, which helps deliver a linear, predictable bite rather than an on/off feel.
- Slim Series calipers are designed around 19-inch-and-larger wheels with 90mm of minimum spoke clearance, which is why this kit sits cleanly behind the 7 Series' factory 20-inch wheels.
Carbon-ceramic rotors also run lighter than an equivalent iron disc, cutting unsprung mass at each corner. That's less rotating weight for the suspension and steering to manage, which shows up as sharper turn-in and a chassis that reacts a beat quicker to driver input — separate from, but complementary to, the braking gains.
Installation Gallery
Does the TTSPORT SL8 kit fit under the 7 Series' factory 20-inch wheels?
What comes in the front TTSPORT SL8 brake kit for this build?
Why use an eight-piston caliper on a BMW 7 Series instead of a smaller unit?
