Audi A7L Big Brake Kit Upgrade / TTSPORT Evolution EB8
The Audi A7L is Audi's stretched, China-market take on the A7 — longer wheelbase for rear-seat comfort, sport-tuned styling, and big wheels carried over from the standard car. Power isn't lacking. The problem is what's behind those wheels: a factory brake system tuned for quiet, low-dust daily driving, not sustained hard stops.

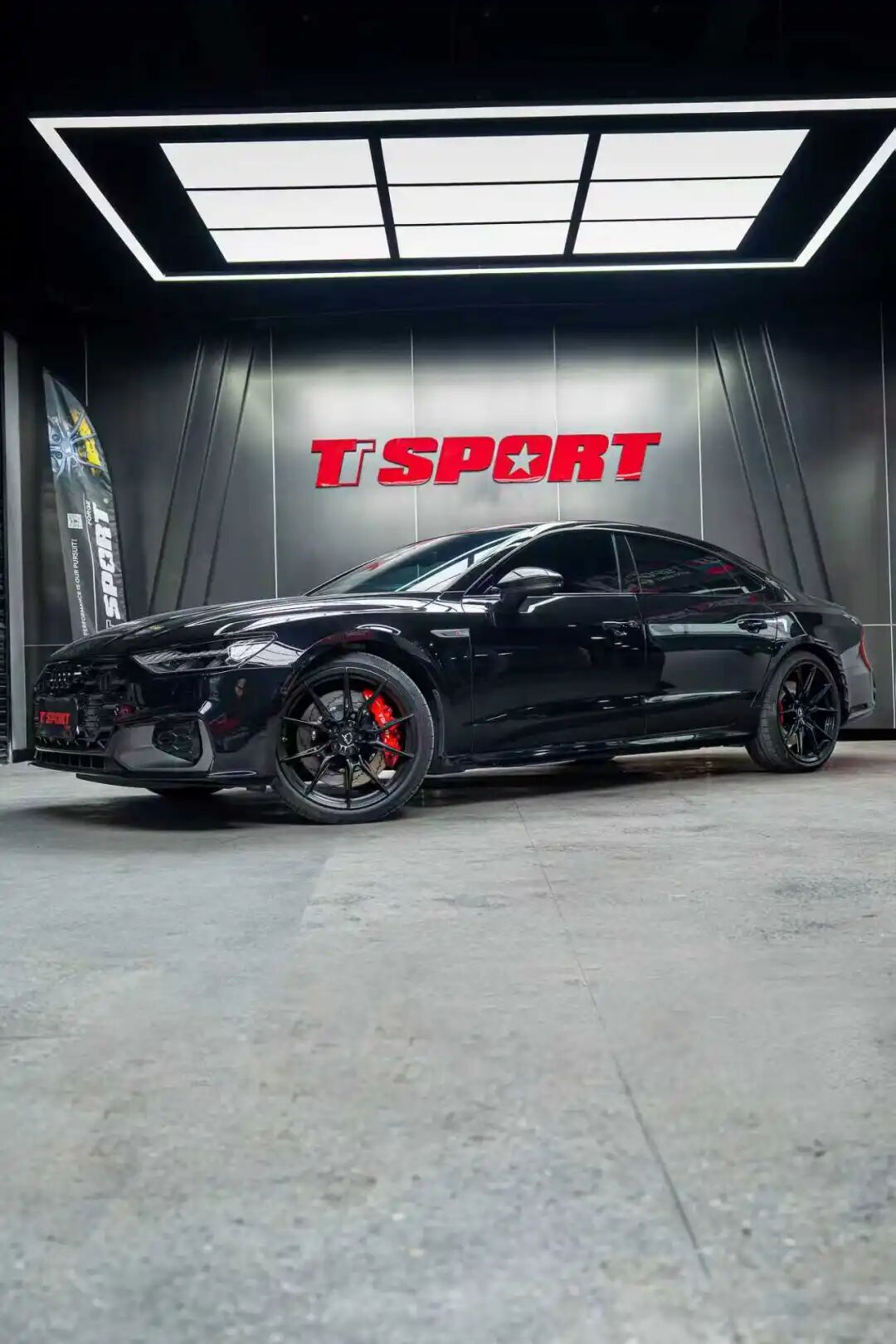

This A7L looks the part — 21-inch wheels, aggressive stance, plenty of power on tap. But the moment the driver pushes past everyday commuting, the stock brakes start to show their limits.
The Problem: Small Calipers, Comfort-Tuned Rotors
Most A7L cars leave the factory with front dual-piston floating calipers and conservatively sized rotors, calibrated for a linear, quiet, low-dust pedal feel. That's plenty for city driving and daily commuting. It falls short in a few specific scenarios: repeated hard braking at highway speed, spirited driving on mountain roads, and the sheer weight and length of a stretched executive sedan asking more of a brake system that wasn't upsized to match. There's also a visual mismatch — 19, 20, or 21-inch wheels wrapped around a small factory caliper look undersized.
The fix wasn't a wholesale, do-everything swap. The shop's approach: go strong up front, keep the rear balanced and cost-controlled.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | Audi A7L, 21-inch factory wheels |
| Front caliper | TTSPORT EB8 forged eight-piston fixed caliper |
| Front rotor | TTSPORT 405mm slotted rotor |
| Rear rotor | TTSPORT 370mm oversized rotor |
| Bracket | Vehicle-specific custom mounting bracket |
| Pads / lines | TTSPORT high-performance pads, TTSPORT stainless steel brake lines |
| Hardware | Brake fluid, mounting bolts, fitting hardware |
Here's the official spec sheet for the TTSPORT EB8 caliper used on the front axle of this build.
| Brake Caliper | |
|---|---|
| Series | Evolution Series |
| Model / Application | EB8 |
| Axle Position | Front |
| Piston Count | 8-piston |
| Piston Type | Two-piece heat-insulated pistons with dust boots |
| Piston Diameter | 28 mm × 4 / 32 mm × 4 |
| Caliper Dimensions | L 349 mm × W 166 mm × H 98 mm |
| Total Piston Area | 56.8 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 4.95 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 19 in or larger |
| Recommended Rotor Size | Ø380–405 mm × 34 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 107 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
The logic here isn't "bigger everywhere" — it's putting the upgrade where the physics actually matter.
- Front axle does the work: on any car, more than 70% of braking force is carried through the front wheels, so a multi-piston front caliper is where upgrading pays off most directly.
- Symmetric eight-piston clamping: the EB8's paired pistons apply force more evenly across the pad, which translates to a more direct, linear pedal and better resistance to heat fade under repeated hard stops.
- Balanced, not overbuilt, rear: pushing too much braking force to the rear can upset stability and interfere with ABS intervention. An oversized 370mm rear rotor instead of a multi-piston rear caliper adds heat capacity and durability without disturbing that balance — and it costs less to boot.
- No spacers, no compromise: with a 19-inch-or-larger recommended wheel fitment and this A7L already running 21s, the EB8 caliper and 405mm rotor package clears the factory wheels as installed.
Installation Gallery
FAQ
What does the TTSPORT setup for this Audi A7L include?
Why upgrade the front to an eight-piston caliper but leave the rear as a rotor-only upgrade?
Does the EB8 caliper fit behind the factory 21-inch wheels?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
