Audi A6 allroad Big Brake Kit Upgrade / TTSPORT Evolution Series

The Audi A6 allroad splits the difference between wagon and off-roader, and its 3.0T V6 with 48V mild-hybrid assist pulls hard from as low as 1,370 rpm. A drivetrain that responsive deserves a brake system that can match it stop for stop, so this build swaps the front rotors for carbon-ceramic discs while keeping the Brembo GT6 six-piston caliper doing the clamping.

Front axle work only in this case: the factory 19-inch wheel stays in place, the Brembo GT6 caliper is retained, and the 380mm rotor is upgraded to a drilled carbon-ceramic disc. Brembo original pads finish out the front corner.

Vehicle & Kit Specs

Why It Works

Carbon-ceramic rotors aren't cast iron with a different label — they're carbon fiber and silicon carbide fused at roughly 1,700°C into a composite disc. That process is why the material behaves differently under hard, repeated braking than a standard rotor.

• Less rotating and unsprung mass at each front corner, which lets the suspension react quicker and sharpens overall handling.
• Far higher resistance to thermal fade than a standard rotor, so pedal feel stays consistent on repeated hard stops.
• Drilled holes and internal cooling vanes between the mounting hat and the friction face pull heat away faster, which is also what keeps the rotor from warping or judder from forming over time.
• The Brembo GT6's six-piston layout spreads clamping force over a wider pad area, giving the pedal a firmer, more progressive response than the factory caliper.

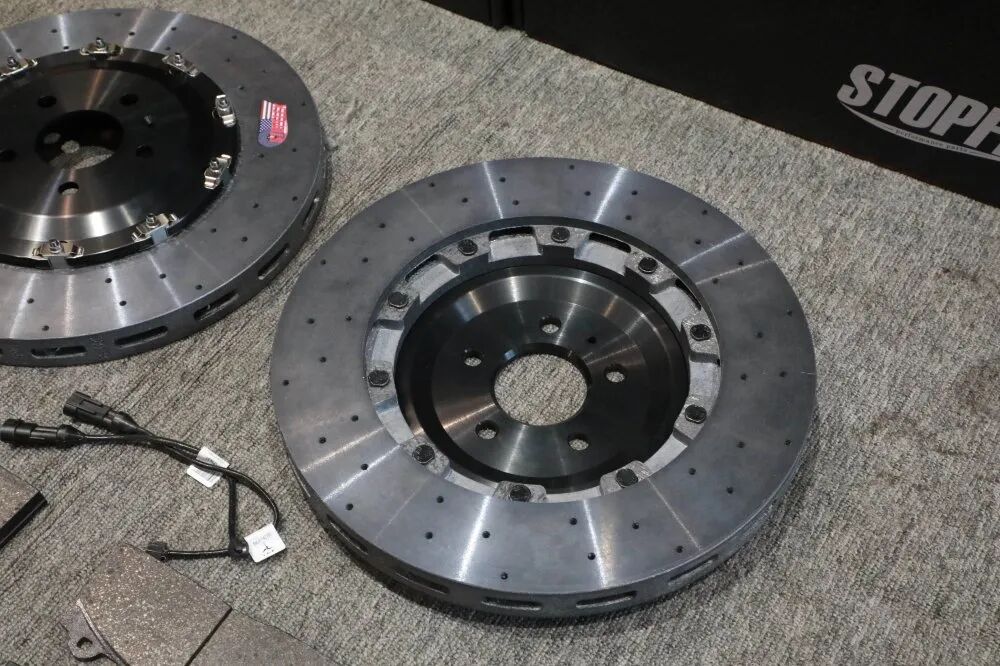

On this build, the shop weighed both 380mm rotors side by side: the factory steel disc came in at 10.10 kg, while the carbon-ceramic replacement weighed 6.25 kg — roughly a 38% reduction, all of it unsprung weight the suspension no longer has to manage.

Installation Gallery

The old brake system came off first, followed by cleaning and surface prep on the hub before the new rotor and caliper went on.
