Mercedes-Benz GLE (GLE63) Big Brake Kit Upgrade / TTSPORT Mono Series
The Mercedes-Benz GLE63 runs a 5.5-liter twin-turbo V8 rated at 557 hp — 585 hp in S mode — with a chassis tuned for agility as much as straight-line pull. A powertrain that strong needs a brake package that can shed heat consistently, lap after lap or grade after grade. This GLE63 owner went straight to AMG's own one-piece six-piston caliper, a 400x38mm rotor, and UK-made stainless steel lines.
The kit was built specifically for the GLE63's 21-inch wheel fitment, so there's no spacer trickery involved — just a caliper, rotor, and bracket combination sized to clear the factory wheel from the factory hub.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | Mercedes-Benz GLE63 (GLE platform), 21-inch factory wheels |

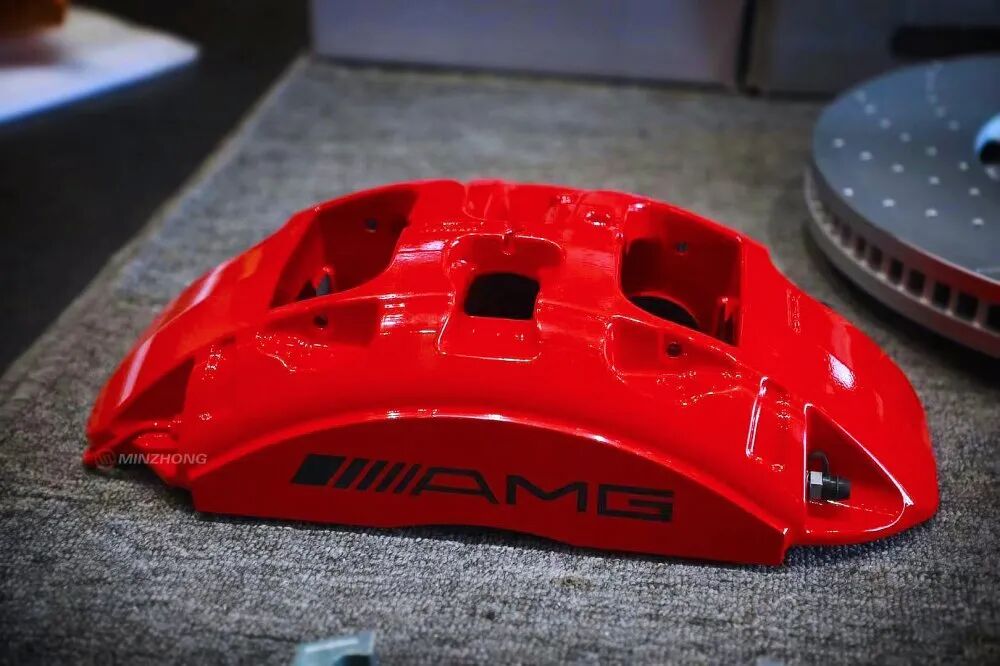

| Front caliper | AMG original one-piece (monobloc) six-piston caliper, manufactured by Brembo |
| Front rotor | 400mm x 38mm drilled brake rotor |
| Pads / lines | AMG-spec brake pads with UK-made stainless steel braided brake lines |
| Hardware | Direct-fit mounting hardware, compatible with Mercedes-Benz GLE and GL-series chassis, no spacers required |
Why It Works
The caliper is a one-piece (monobloc) casting rather than a bolted-together two-piece design, which means less flex under hard pedal pressure and a firmer, more consistent bite. Brembo builds the casting for AMG, so the manufacturing tolerances and piston-bore finish are the same as what ships on AMG's own performance cars.
- Six opposed pistons spread clamping force evenly across the pad, improving pedal modulation over a stock floating caliper.
- The 400x38mm rotor adds mass and surface area over a stock disc, giving the system more thermal capacity before fade sets in.
- The caliper and rotor package was engineered around the GLE63's 21-inch wheel, so it clears the factory wheel without spacers.
- Stainless steel braided lines resist the expansion that rubber hoses show under sustained hard braking, keeping pedal feel firm.
Installation Gallery
FAQ
What wheel size does this AMG brake package fit on the Mercedes-Benz GLE63?
What's included in the GLE63 AMG brake package?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
