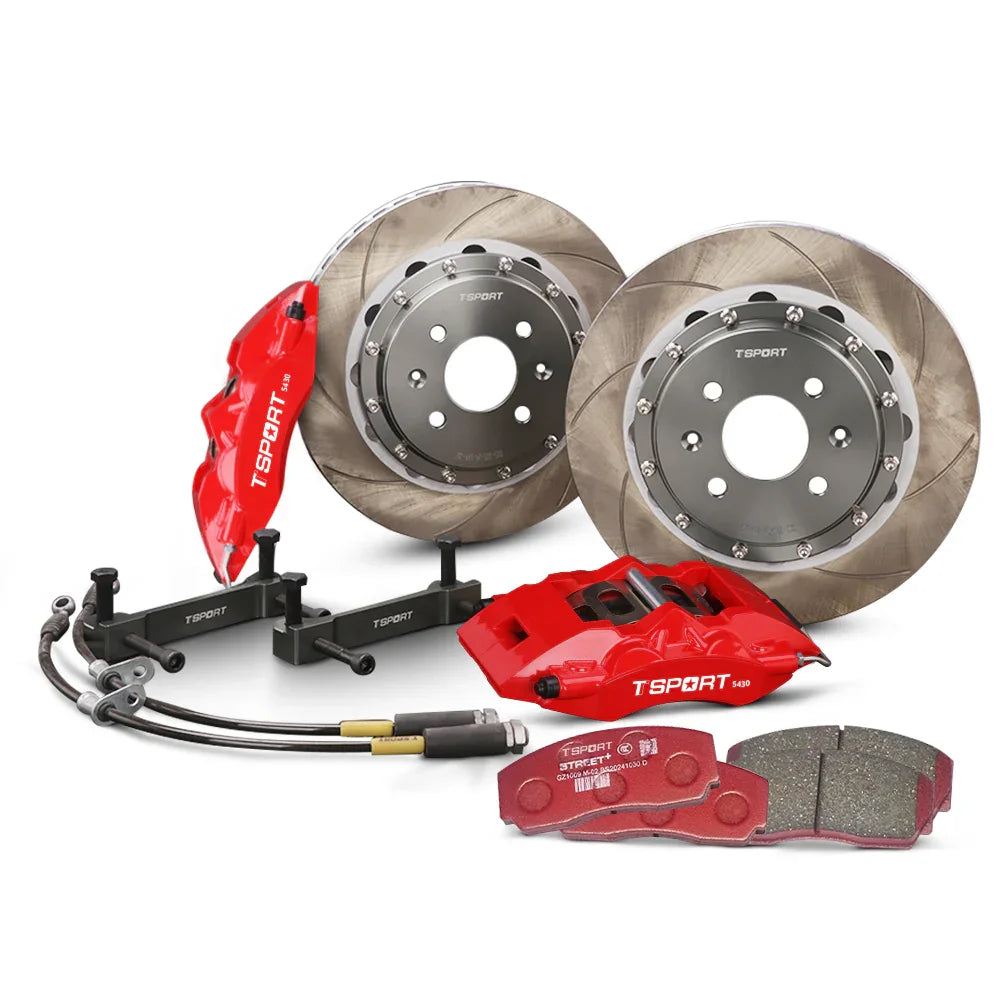

Complete TTSPORT 5430 front wheel big brake kit, showing the 4-piston forged calipers, slotted 2-piece floating rotor, performance pads, and steel-braided brake lines.

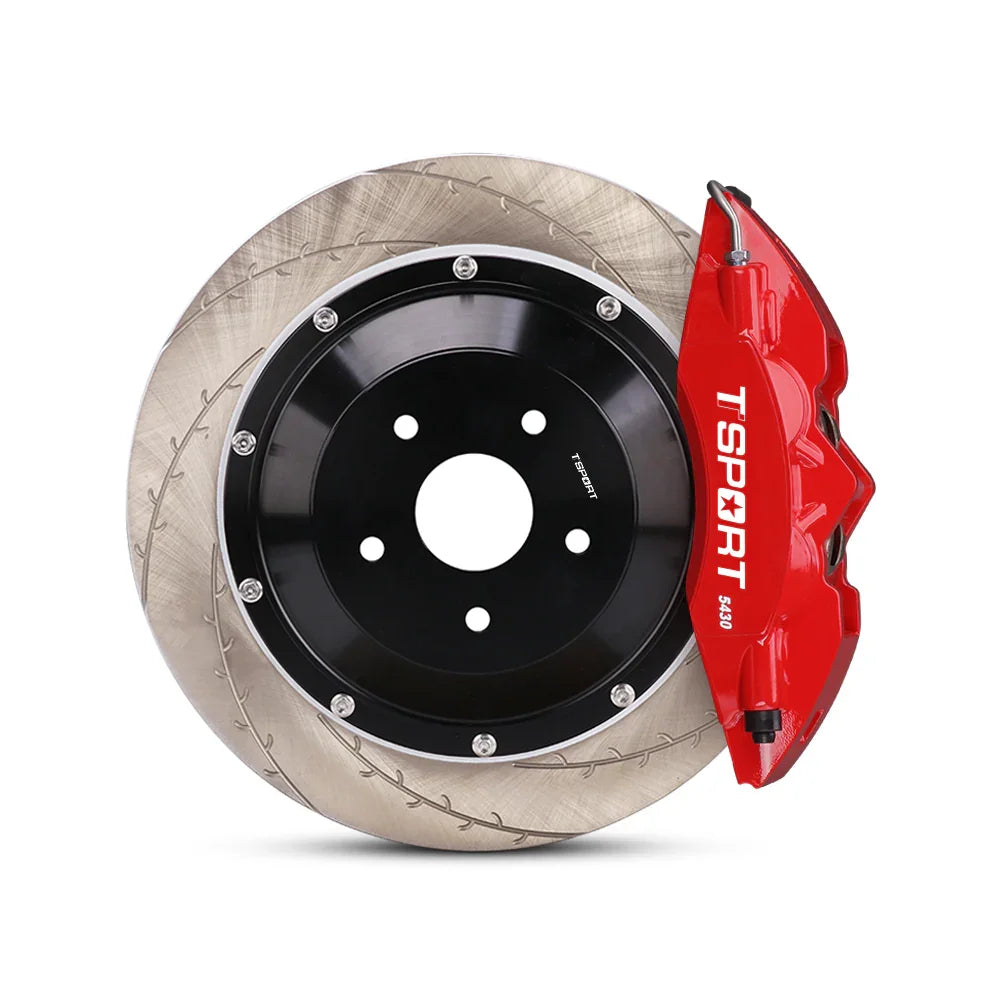

Close-up of a red TTSPORT 5430 4-piston forged brake caliper for the front wheel and a slotted 2-piece floating rotor.

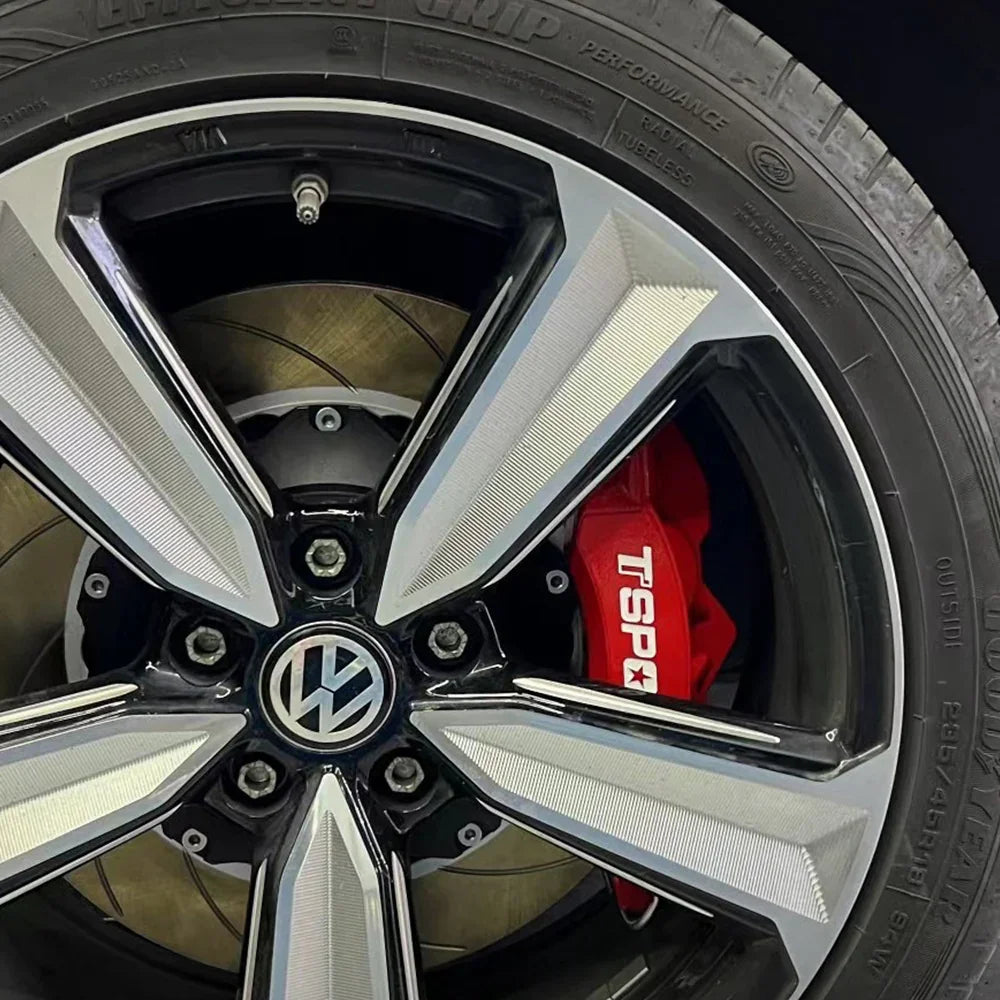

A red TTSPORT 5430 4-piston big brake kit is installed on the 18" front wheel.

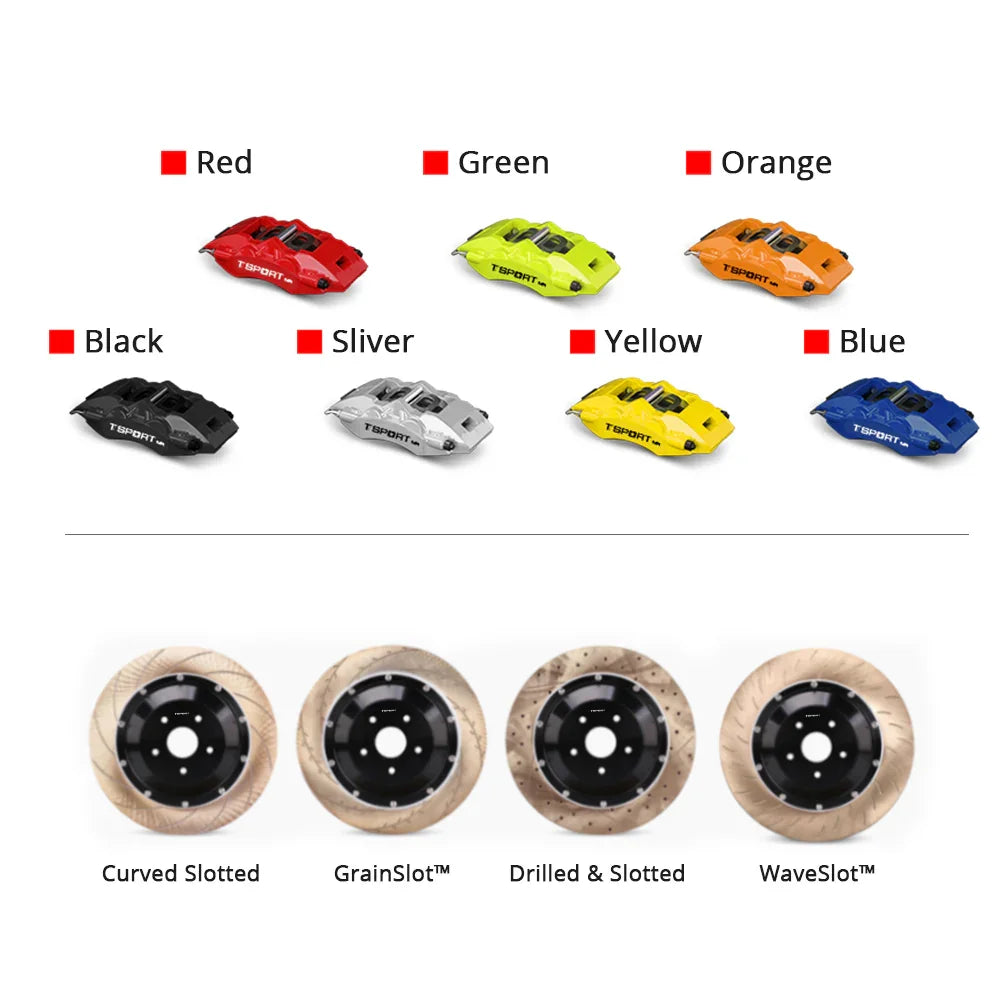

Customization options for the TTSPORT 5430 brake kit, featuring available caliper colors (red, blue, green, orange), rotor designs (drilled and slotted).

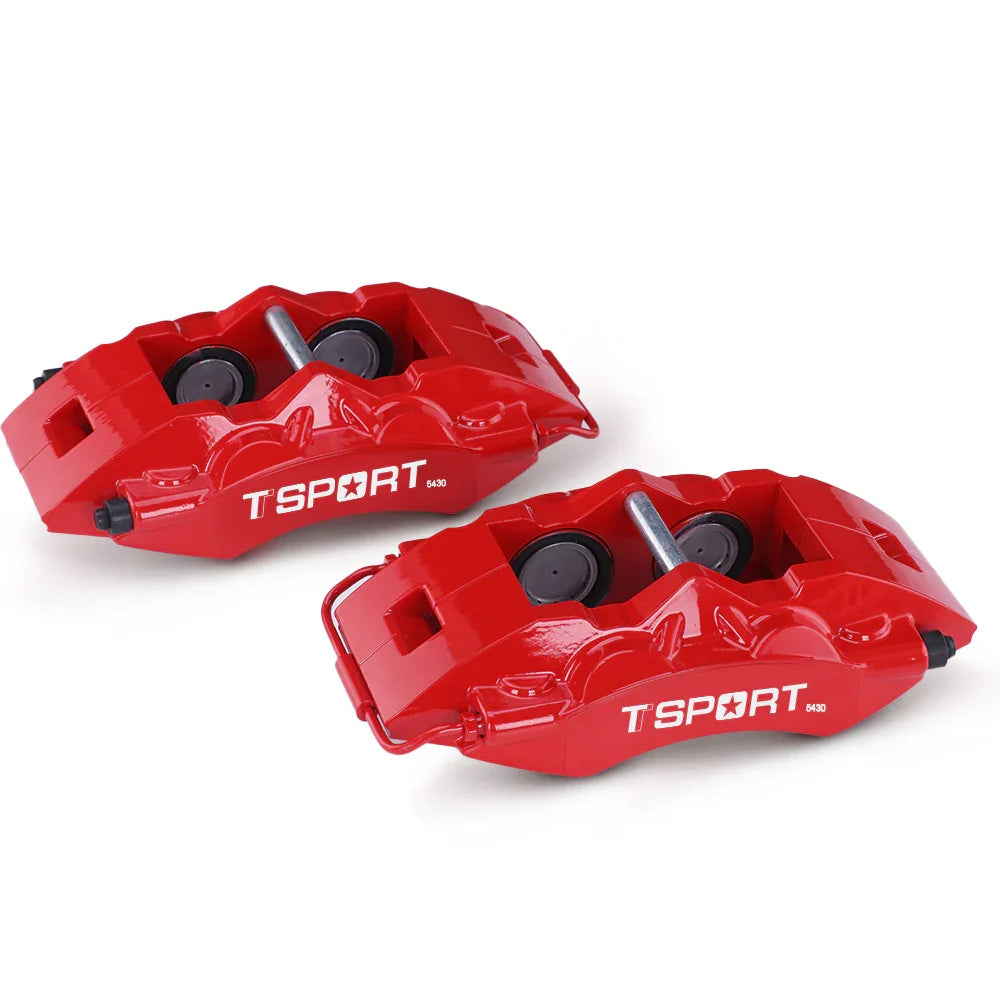

Detailed view of the 4 pistons with dust boot inside a TTSPORT 5430 forged brake caliper.

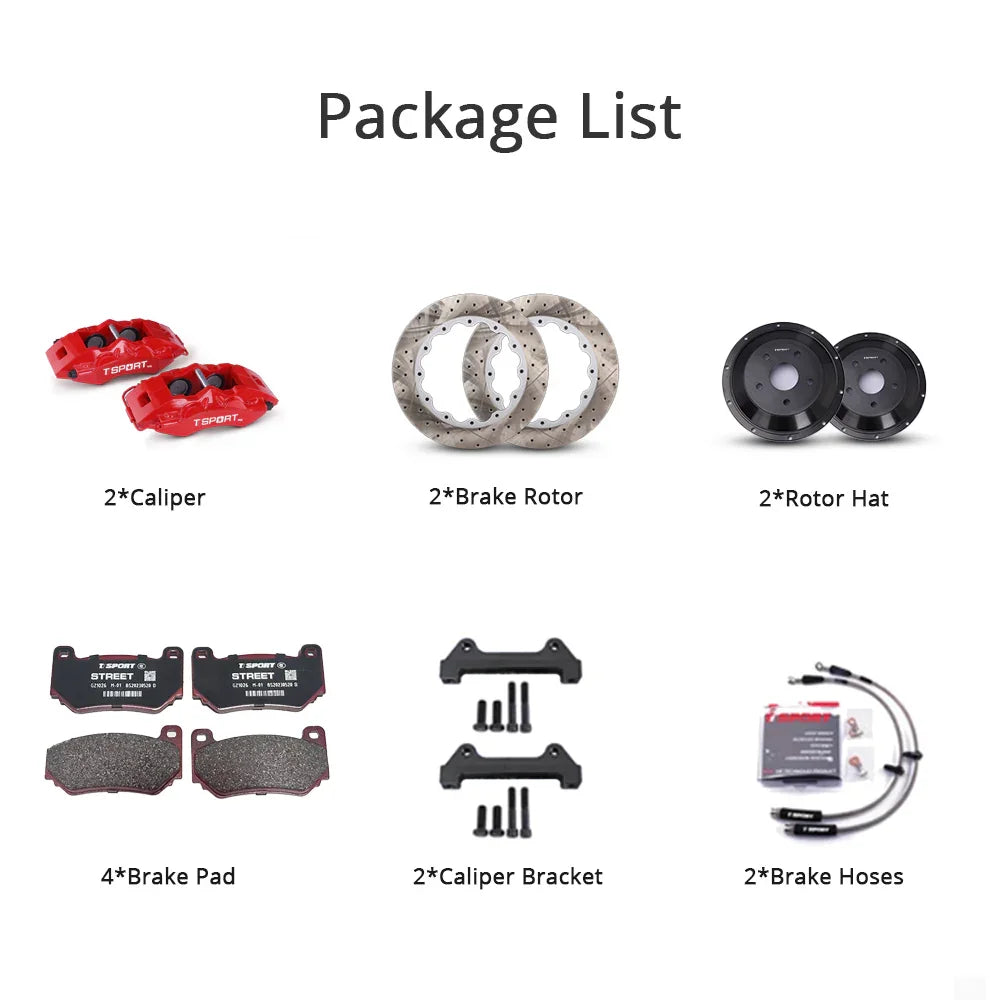

Unboxing the complete TTSPORT 5430 performance big brake kit, including all components: calipers, rotors, pads, brake line, and mounting hardware.
Complete TTSPORT 5430 front wheel big brake kit, showing the 4-piston forged calipers, slotted 2-piece floating rotor, performance pads, and steel-braided brake lines.
Close-up of a red TTSPORT 5430 4-piston forged brake caliper for the front wheel and a slotted 2-piece floating rotor.
A red TTSPORT 5430 4-piston big brake kit is installed on the 18" front wheel.
Customization options for the TTSPORT 5430 brake kit, featuring available caliper colors (red, blue, green, orange), rotor designs (drilled and slotted).
Detailed view of the 4 pistons with dust boot inside a TTSPORT 5430 forged brake caliper.
Unboxing the complete TTSPORT 5430 performance big brake kit, including all components: calipers, rotors, pads, brake line, and mounting hardware.

مجموعة فرامل العجلة الأمامية سلسلة كلاسيك 5430 بـ 4 مكابس

$1,060.00 USD
$1,060.00 USD

كتلة النص

Shipping costs not included

لون الكالبر: اللون القياسي (كما هو موضح في الصورة)
حجم الدوار: 330x28mm (العجلة ≥ 17″)
مادة وتصميم الدوار: الفولاذ - منحني بفتحات على شكل خطوط
Complete TTSPORT 5430 front wheel big brake kit, showing the 4-piston forged calipers, slotted 2-piece floating rotor, performance pads, and steel-braided brake lines.

مجموعة فرامل العجلة الأمامية سلسلة كلاسيك 5430 بـ 4 مكابس

$1,060.00
Complete TTSPORT 5430 front wheel big brake kit, showing the 4-piston forged calipers, slotted 2-piece floating rotor, performance pads, and steel-braided brake lines.
Close-up of a red TTSPORT 5430 4-piston forged brake caliper for the front wheel and a slotted 2-piece floating rotor.
A red TTSPORT 5430 4-piston big brake kit is installed on the 18" front wheel.
Customization options for the TTSPORT 5430 brake kit, featuring available caliper colors (red, blue, green, orange), rotor designs (drilled and slotted).
Detailed view of the 4 pistons with dust boot inside a TTSPORT 5430 forged brake caliper.
Unboxing the complete TTSPORT 5430 performance big brake kit, including all components: calipers, rotors, pads, brake line, and mounting hardware.

مجموعة فرامل العجلة الأمامية سلسلة كلاسيك 5430 بـ 4 مكابس

$1,060.00
لون الكالبر: اللون القياسي (كما هو موضح في الصورة)
حجم الدوار: 330x28mm (العجلة ≥ 17″)
مادة وتصميم الدوار: الفولاذ - منحني بفتحات على شكل خطوط
تحديد

5430 Asymmetrical Forged 4-Piston Caliper

Experience a new level of braking precision with the 5430 large four-piston caliper. Engineered with an advanced asymmetrical design and forged construction, it achieves significant weight reduction while ensuring perfectly even pressure distribution across the brake pads for a firm, highly responsive pedal feel from initial touch.

Integrated reinforcing ribs increase caliper strength by over 20% compared to conventional designs, guaranteeing maximum rigidity under heavy braking. Every caliper comes standard with two-piece ventilated pistons (fully compatible with carbon-ceramic rotors), durable dust boots, and ultra-high-temperature seals for exceptional heat resistance and consistent, powerful bite. It is the ideal performance upgrade for small-to-midsize sedans, SUVs, and MPVs.

Technical Specifications

Caliper
Series Classic Series
Model 5430
Mounting Position Front
Number of Pistons 4
Piston Type Two-Piece Vented Pistons with Dust Boots
Piston Diameter 38 mm × 2, 41 mm × 2
Dimensions L 282 × W 152 × H 77 mm
Total Piston Area 49.08 cm²
Manufacturing Process Two-Piece Forged
Net Weight 3.20 kg (single caliper without pad)
Surface Finish High-Temperature Gloss Coating
Recommended Wheel Size 17″ or larger
Recommended Rotor Size ⌀330–355 mm / Thickness 28 mm
Brake Rotor
Material Heat-Treated High Carbon Steel
Dimensions ⌀330 / 345 / 355 mm × 28 mm
Construction 2-Piece Rotor
Vented / Solid Vented
Floating / Fixed Fixed
Directional Yes
Design Options Curved Slotted / GrainSlot / WaveSlot / Drilled & Slotted
Brake Pad
Compatible Rotor Material Steel Rotors
Operating Temperature 0–550°C
Coefficient of Friction 0.40–0.46 μ
Brake Hose
Construction 3-Layer Reinforced
Material Inner: PTFE (Teflon); Middle: SUS304 Braided Stainless Steel; Outer: PVC Sheath
Mounting Hardware
Rotor Hat CNC-Machined Aerospace-Grade Aluminum Alloy
Caliper Bracket CNC-Machined Carbon Steel

3-Step Fitment Check

Step 1: A diagram showing a minimum 17-inch wheel requirement for the 5430 caliper.
Step 1: Confirm Wheel Size (17" or larger)
Step 2: A diagram illustrating caliper-to-spoke clearance measurement.
Step 2: Check Spoke Clearance (Min. 95 mm)
Step 3: An icon representing vehicle model confirmation from a list.
Step 3: Verify Your Vehicle Model

Vehicle Compatibility

Don't see your car? This list is always growing. If your vehicle isn't shown, contact us with your details (year/make/model, wheel specs) and we'll confirm fitment for you.

Frequently Asked Questions

What makes the 5430 a great upgrade?
The 5430 is a high-value performance upgrade. Its forged, lightweight, and reinforced four-piston design provides a significant improvement in braking power, pedal feel, and heat resistance compared to most factory brake systems.
What's included in a complete 5430 brake kit?
A complete front axle upgrade, including: 2 × 5430 Calipers, 2 × Two-Piece Brake Rotors, 1 × Set of Brake Pads, 2 × Caliper Brackets, and 2 × Stainless Braided Brake Hoses.
إشعار

Brake Kit Purchase Notice


  • Custom‑made products cannot be returned unless there is a genuine quality defect.
  • Spacer requirements vary depending on wheel design; we assist with fitment, but spacer‑related issues do not qualify for returns.

1. Disclaimer

  1. Please provide vehicle make, model year, VIN, and wheel size before ordering TTSPORT products.
  2. Confirm wheel measurements and submit photos as requested — TTSPORT is not liable for issues arising from incorrect specs.
  3. All products are inspected before shipping. Inspect upon delivery and report quality issues within 24 hours.

2. Initial Break‑In Procedure

  1. In a safe area, brake from 60 km/h to 10 km/h with moderate pressure—repeat 10 times.
  2. Drive 500–1,000 km with light to moderate usage before full braking performance. Avoid aggressive stops.
  3. Our high‑carbon steel discs have grooved, color‑treated surfaces to help quick bedding and resist corrosion.

3. Product Warranty

  • Calipers: 1‑year warranty on defects. Lifetime maintenance available (parts charged).
  • Discs & Hoses: 90‑day warranty for defects. Expected lifespan: 40,000–60,000 km.
  • Brake Pads: 90‑day coverage. Typical lifespan: 20,000–40,000 km.
  • Custom Hats/Brackets: Fit guaranteed; no warranty post-installation.

4. Usage & Maintenance

  1. Do not wash immediately after hard braking to prevent rotor warpage.
  2. Allow extra stopping distance when driving in wet conditions.
  3. If you experience unusual noise or vibration, consult your installer immediately.

Recommended service intervals:

  • Replace rotors when wear exceeds 3 mm.
  • Front pads: every 30,000 km.
  • Rear pads: every 50,000–60,000 km.
  • Brake fluid: every 40,000 km or every 2 years.
