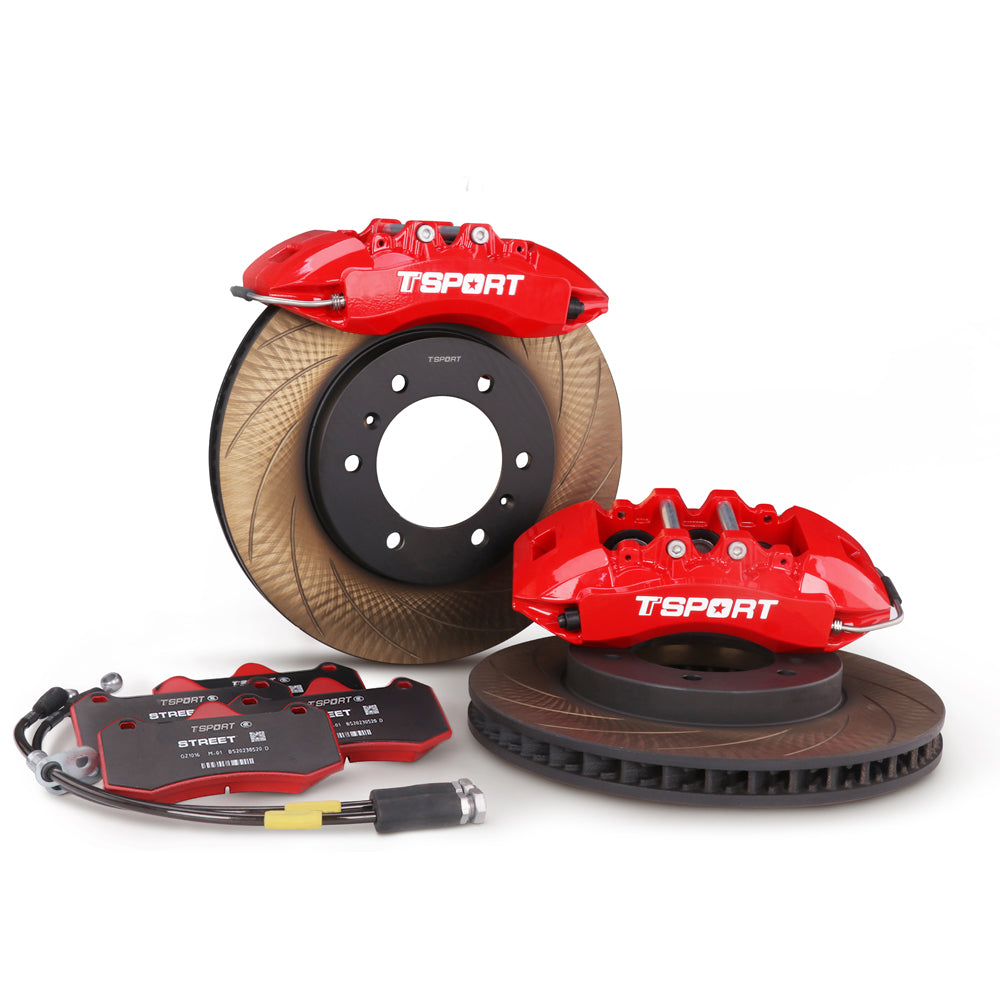

Complete TTSPORT GWM Tank 300 front wheel big brake kit, showing the 6-piston forged calipers, slotted rotor, performance pads, and steel-braided brake lines.

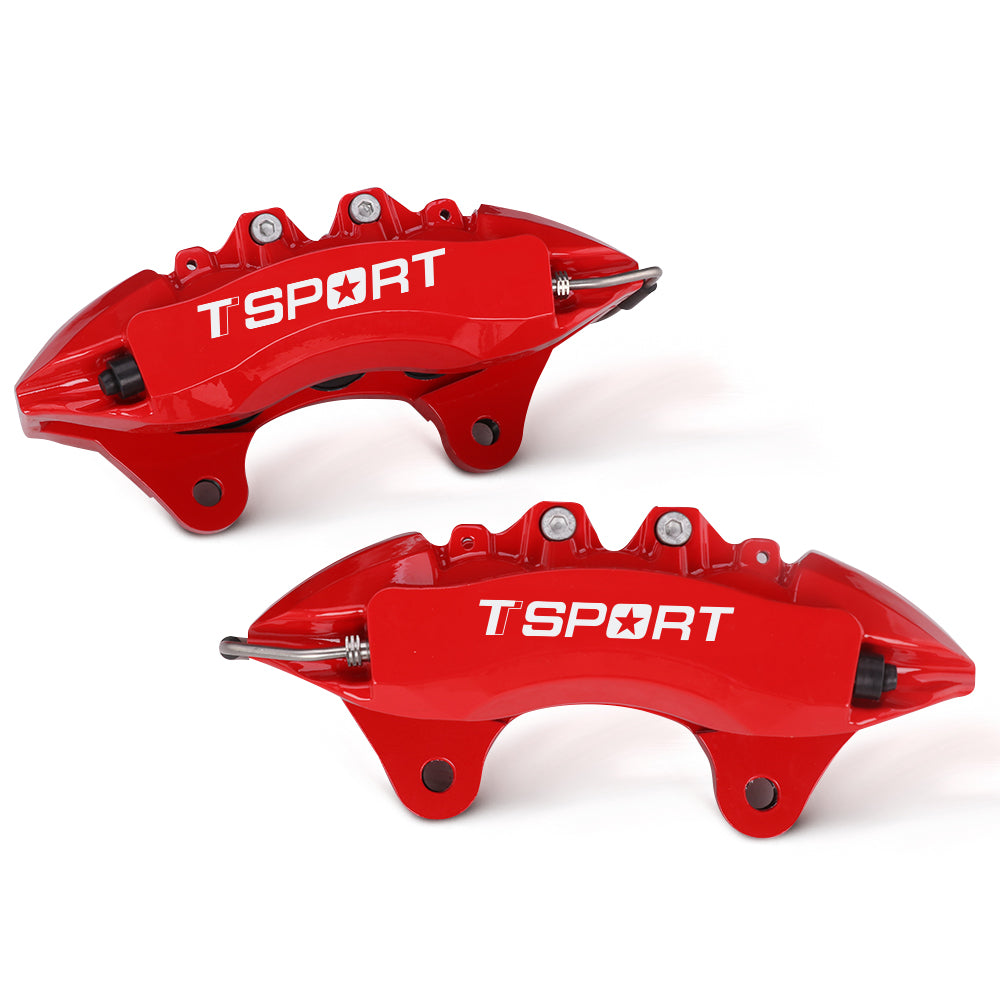

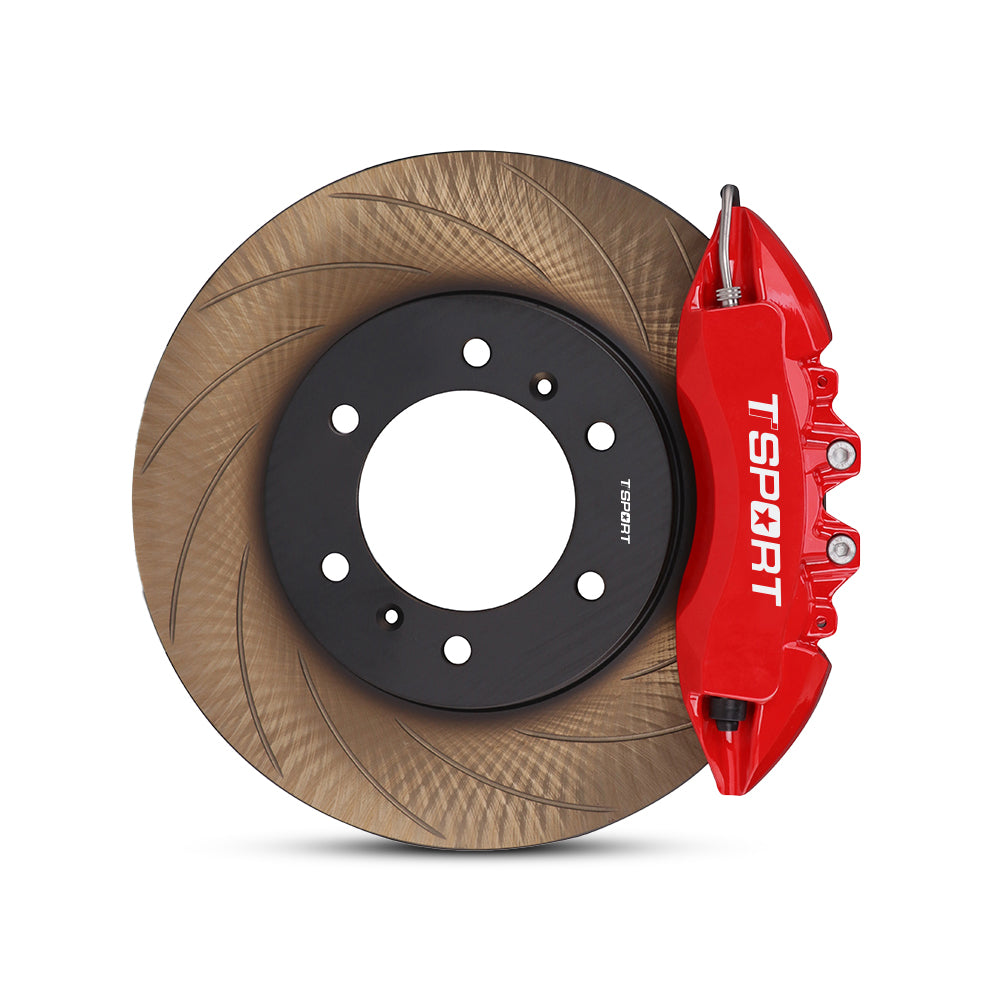

Close-up of a red TTSPORT GWM Tank 300 6-piston forged brake caliper for the front wheel and a slotted rotor.
Detailed view of the 6 pistons with dust boot inside a TTSPORT GWM Tank 300 front wheel forged brake caliper.

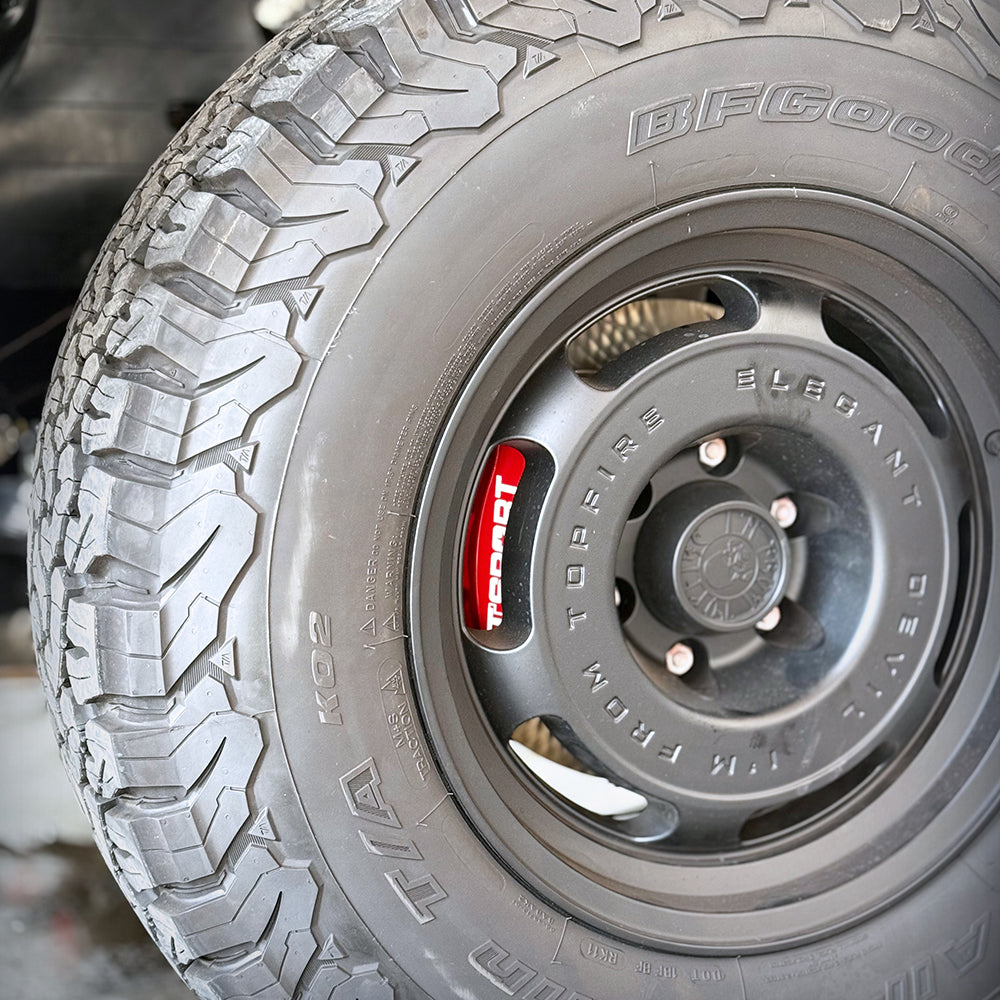

A red TTSPORT 6-piston big brake kit is installed on the GWM Tank 300 front wheel.

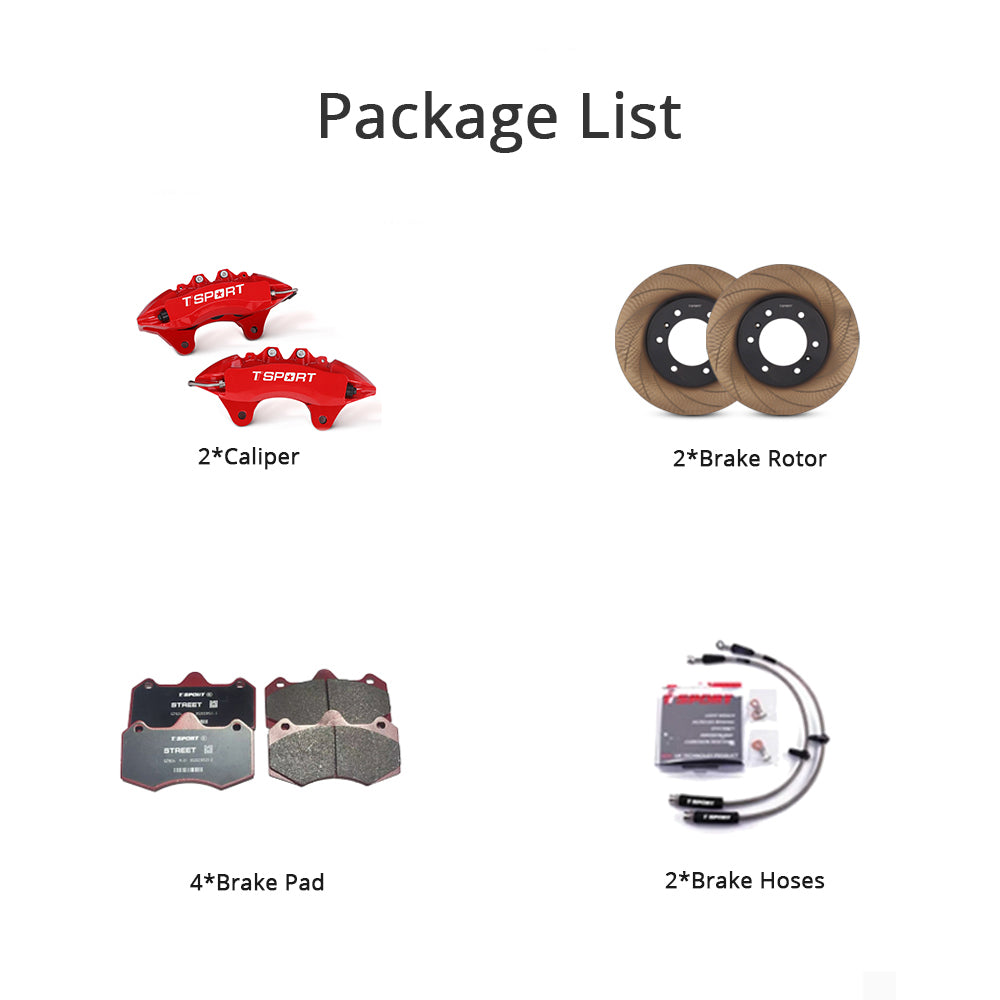

Unboxing the complete TTSPORT GWM Tank 300 front wheel performance big brake kit, including all components: calipers, rotors, pads, and brake line.

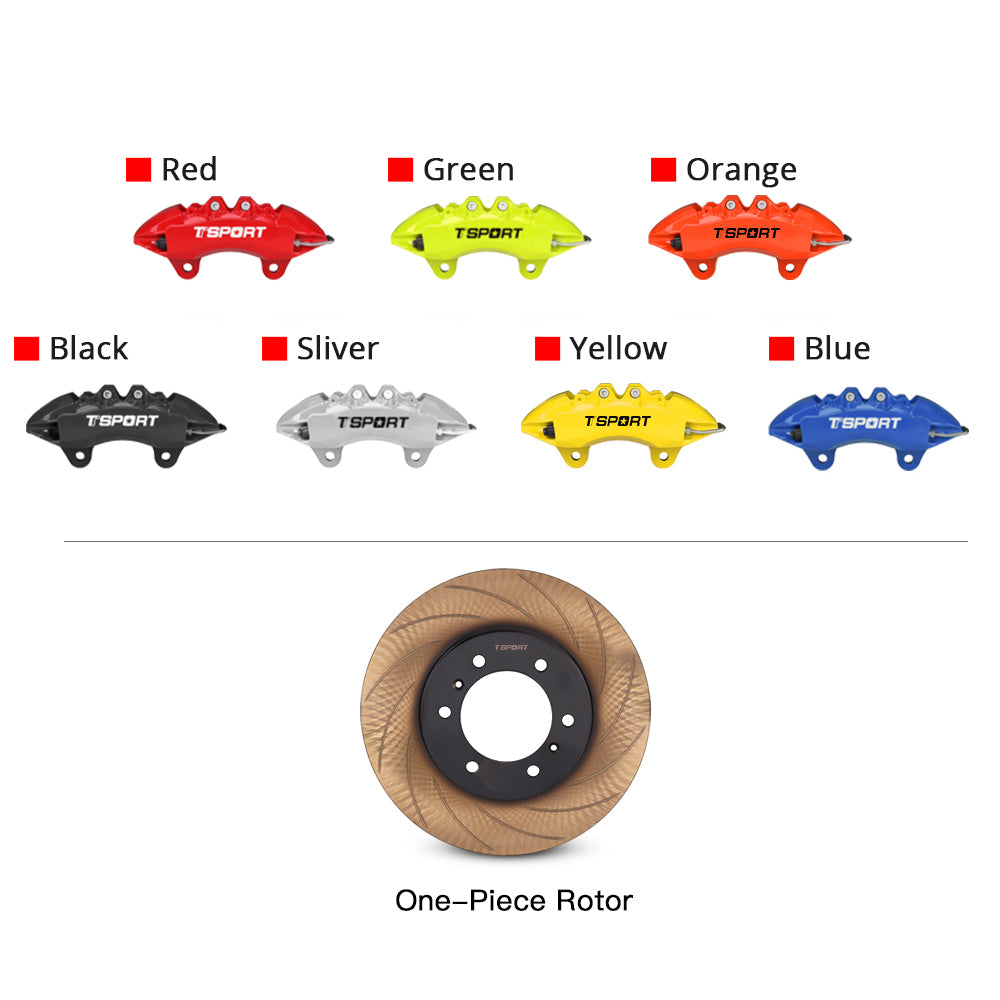

Customization options for the TTSPORT GWM Tank 300 front wheel brake kit, featuring available caliper colors (red, blue, green, orange) and rotor designs (slotted).
Complete TTSPORT GWM Tank 300 front wheel big brake kit, showing the 6-piston forged calipers, slotted rotor, performance pads, and steel-braided brake lines.
Close-up of a red TTSPORT GWM Tank 300 6-piston forged brake caliper for the front wheel and a slotted rotor.
Detailed view of the 6 pistons with dust boot inside a TTSPORT GWM Tank 300 front wheel forged brake caliper.
A red TTSPORT 6-piston big brake kit is installed on the GWM Tank 300 front wheel.
Unboxing the complete TTSPORT GWM Tank 300 front wheel performance big brake kit, including all components: calipers, rotors, pads, and brake line.
Customization options for the TTSPORT GWM Tank 300 front wheel brake kit, featuring available caliper colors (red, blue, green, orange) and rotor designs (slotted).

Vehicle-Specific Series GWM Tank 300 / 500 / Cannon Alpha (Poer Sahar / P500) Front Wheel 6-Pistons Brake Kit

$1,210.00 USD
$1,210.00 USD

Shipping costs not included

Caliper Color: Standard Color (As Shown in the Image)
Rotor Size: 335x32mm (Wheel ≥ 17″)
Rotor Material & Design: Steel - Curved Slotted
Complete TTSPORT GWM Tank 300 front wheel big brake kit, showing the 6-piston forged calipers, slotted rotor, performance pads, and steel-braided brake lines.

Vehicle-Specific Series GWM Tank 300 / 500 / Cannon Alpha (Poer Sahar / P500) Front Wheel 6-Pistons Brake Kit

$1,210.00
Complete TTSPORT GWM Tank 300 front wheel big brake kit, showing the 6-piston forged calipers, slotted rotor, performance pads, and steel-braided brake lines.
Close-up of a red TTSPORT GWM Tank 300 6-piston forged brake caliper for the front wheel and a slotted rotor.
Detailed view of the 6 pistons with dust boot inside a TTSPORT GWM Tank 300 front wheel forged brake caliper.
A red TTSPORT 6-piston big brake kit is installed on the GWM Tank 300 front wheel.
Unboxing the complete TTSPORT GWM Tank 300 front wheel performance big brake kit, including all components: calipers, rotors, pads, and brake line.
Customization options for the TTSPORT GWM Tank 300 front wheel brake kit, featuring available caliper colors (red, blue, green, orange) and rotor designs (slotted).

Vehicle-Specific Series GWM Tank 300 / 500 / Cannon Alpha (Poer Sahar / P500) Front Wheel 6-Pistons Brake Kit

$1,210.00
Caliper Color: Standard Color (As Shown in the Image)
Rotor Size: 335x32mm (Wheel ≥ 17″)
Rotor Material & Design: Steel - Curved Slotted
Specifications

Bolt-On 6-Piston Big Brake Kit for GWM Tank & Cannon

Give your GWM truck the stopping power it deserves. This big brake kit is engineered specifically for the GWM Tank 300, Tank 500, and Cannon Alpha (Poer Sahar / P500). Forget weak factory brakes—this is a true performance upgrade that bolts on without any modification.

We designed the powerful 6-piston caliper with integrated mounting points to attach directly to your truck's factory knuckle, eliminating the need for flimsy adapter brackets. The oversized, heavy-duty rotors were developed using OEM data to guarantee a perfect fit behind your stock 17" or larger wheels. Get a massive increase in braking force and control for safer, more confident off-roading and towing.

Technical Specifications

Caliper
Series Vehicle-Specific Series
Model 7640TK – GWM Tank 300 / Tank 500 / Cannon Alpha (Poer Sahar / P500)
Mounting Position Front
Number of Pistons 6
Piston Type Two-Piece Vented Pistons with Dust Boots
Piston Diameter 27 mm × 2, 32 mm × 2, 38 mm × 2
Dimensions L 272 × W 153 × H 123 mm
Total Piston Area 50.10 cm²
Manufacturing Process Two-Piece Forged
Net Weight 3.72 kg (single caliper without pad)
Surface Finish High-Temperature Gloss Coating
Recommended Wheel Size 17″ or larger
Brake Rotor
Material Heat-Treated High Carbon Steel
Dimensions ⌀335 mm × 32 mm
Construction 1-Piece Rotor
Vented / Solid Vented
Floating / Fixed Fixed
Directional Yes
Design Options Curved Slotted / GrainSlot
Brake Pad
Compatible Rotor Material Steel Rotors
Operating Temperature 0–550°C
Coefficient of Friction 0.40–0.46 μ
Brake Hose
Construction 3-Layer Reinforced
Material Inner: PTFE (Teflon); Middle: SUS304 Braided Stainless Steel; Outer: PVC Sheath

3-Step Pre-Fitment Check

Step 1: Illustration showing GWM Tank big brake kit requires 17-inch or larger wheels.
Step 1: Verify Wheel Size (17" Minimum)
Step 2: Diagram showing how to measure caliper to wheel spoke clearance, minimum 99mm required.
Step 2: Check Spoke Clearance (Min. 99 mm)
Step 3: Icon representing checking your vehicle's compatibility from a verified list.
Step 3: Confirm Your Vehicle Model

Vehicle Compatibility

Brand Model (Model Code) Model Year
Great Wall Tank 300 2020–Present
Great Wall Tank 500 2021–Present
Great Wall Cannon Alpha / Poer Sahar / P500 2022–Present

Frequently Asked Questions

What do you mean by "no adapter brackets"?
This caliper is a **true direct-fit** part. The mounting points are integrated directly into the caliper body and are designed to bolt to your truck's factory knuckle, just like the original. This provides a stronger, safer, and much simpler installation than universal kits that rely on extra adapter brackets.
Will this fit my stock 17" wheels?
Yes. This kit is specifically engineered to provide full clearance for the factory 17-inch and larger wheels on the GWM Tank and Cannon models listed, so you can get a huge performance boost without the expense of new wheels.
Why use a one-piece rotor on a truck kit?
For heavy-duty off-road and work truck applications, a solid one-piece rotor provides the ultimate in strength, durability, and reliability. It’s a simple, robust, and time-tested design for vehicles that demand absolute dependability in the harshest conditions.
Notice

Brake Kit Purchase Notice


  • Custom‑made products cannot be returned unless there is a genuine quality defect.
  • Spacer requirements vary depending on wheel design; we assist with fitment, but spacer‑related issues do not qualify for returns.

1. Disclaimer

  1. Please provide vehicle make, model year, VIN, and wheel size before ordering TTSPORT products.
  2. Confirm wheel measurements and submit photos as requested — TTSPORT is not liable for issues arising from incorrect specs.
  3. All products are inspected before shipping. Inspect upon delivery and report quality issues within 24 hours.

2. Initial Break‑In Procedure

  1. In a safe area, brake from 60 km/h to 10 km/h with moderate pressure—repeat 10 times.
  2. Drive 500–1,000 km with light to moderate usage before full braking performance. Avoid aggressive stops.
  3. Our high‑carbon steel discs have grooved, color‑treated surfaces to help quick bedding and resist corrosion.

3. Product Warranty

  • Calipers: 1‑year warranty on defects. Lifetime maintenance available (parts charged).
  • Discs & Hoses: 90‑day warranty for defects. Expected lifespan: 40,000–60,000 km.
  • Brake Pads: 90‑day coverage. Typical lifespan: 20,000–40,000 km.
  • Custom Hats/Brackets: Fit guaranteed; no warranty post-installation.

4. Usage & Maintenance

  1. Do not wash immediately after hard braking to prevent rotor warpage.
  2. Allow extra stopping distance when driving in wet conditions.
  3. If you experience unusual noise or vibration, consult your installer immediately.

Recommended service intervals:

  • Replace rotors when wear exceeds 3 mm.
  • Front pads: every 30,000 km.
  • Rear pads: every 50,000–60,000 km.
  • Brake fluid: every 40,000 km or every 2 years.
