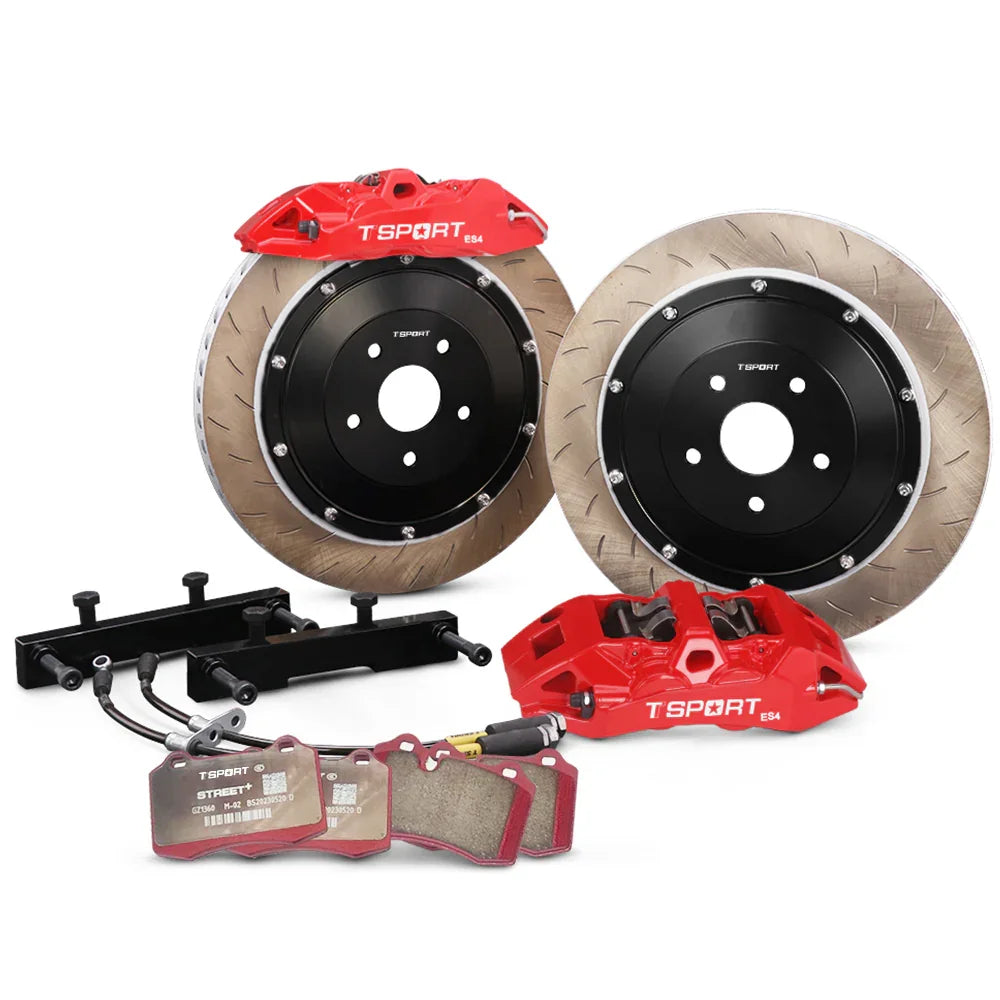

Complete TTSPORT ES4 rear wheel big brake kit, showing the 4-piston forged calipers, slotted 2-piece floating rotor, performance pads, and steel-braided brake lines.

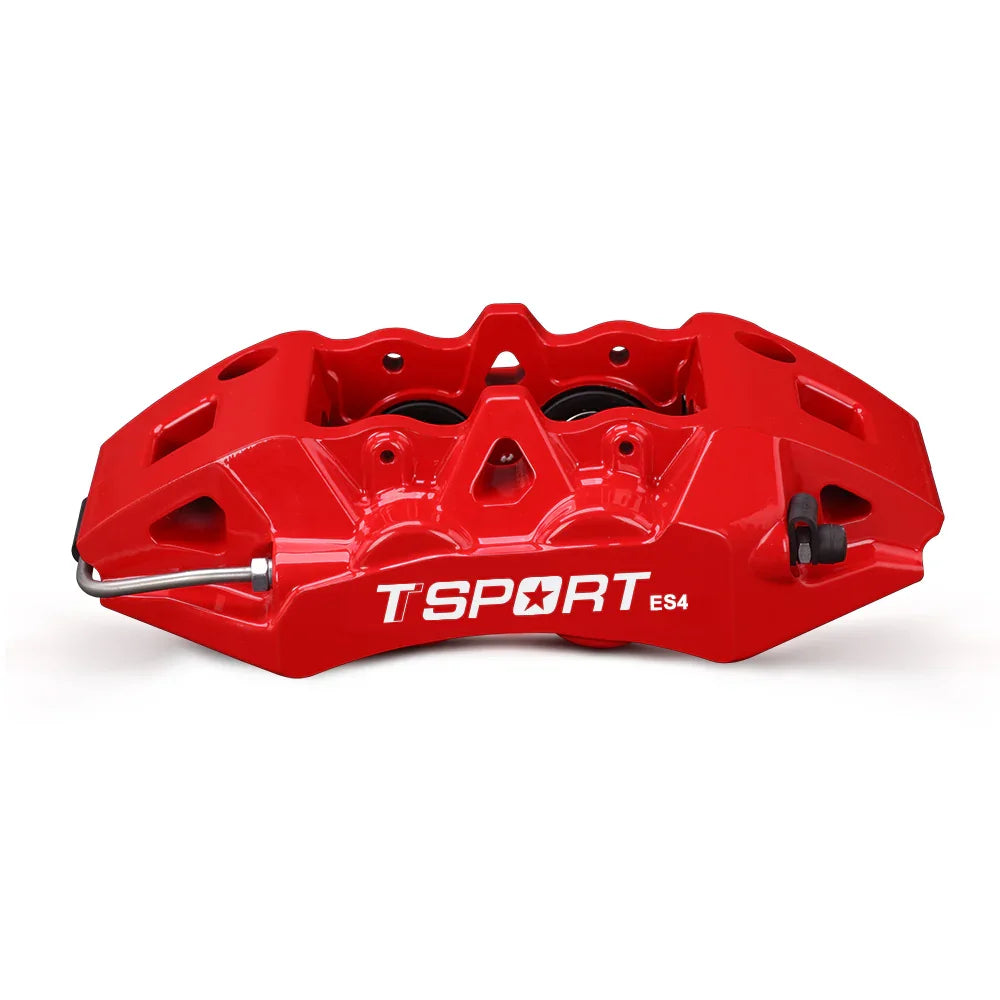

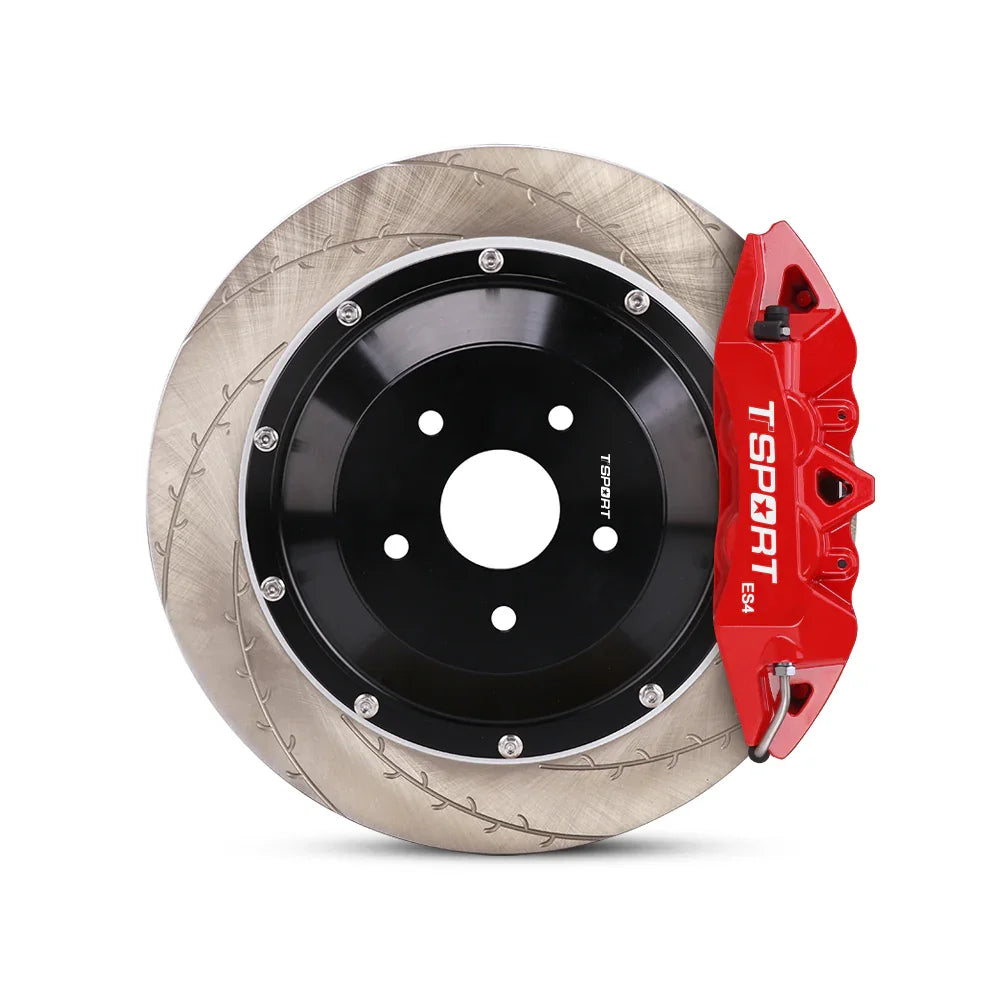

Close-up of a red TTSPORT ES4 4-piston forged brake caliper for the rear wheel and a slotted 2-piece floating rotor.
Detailed view of the 4 pistons with dust boot inside a TTSPORT ES4 forged brake caliper.

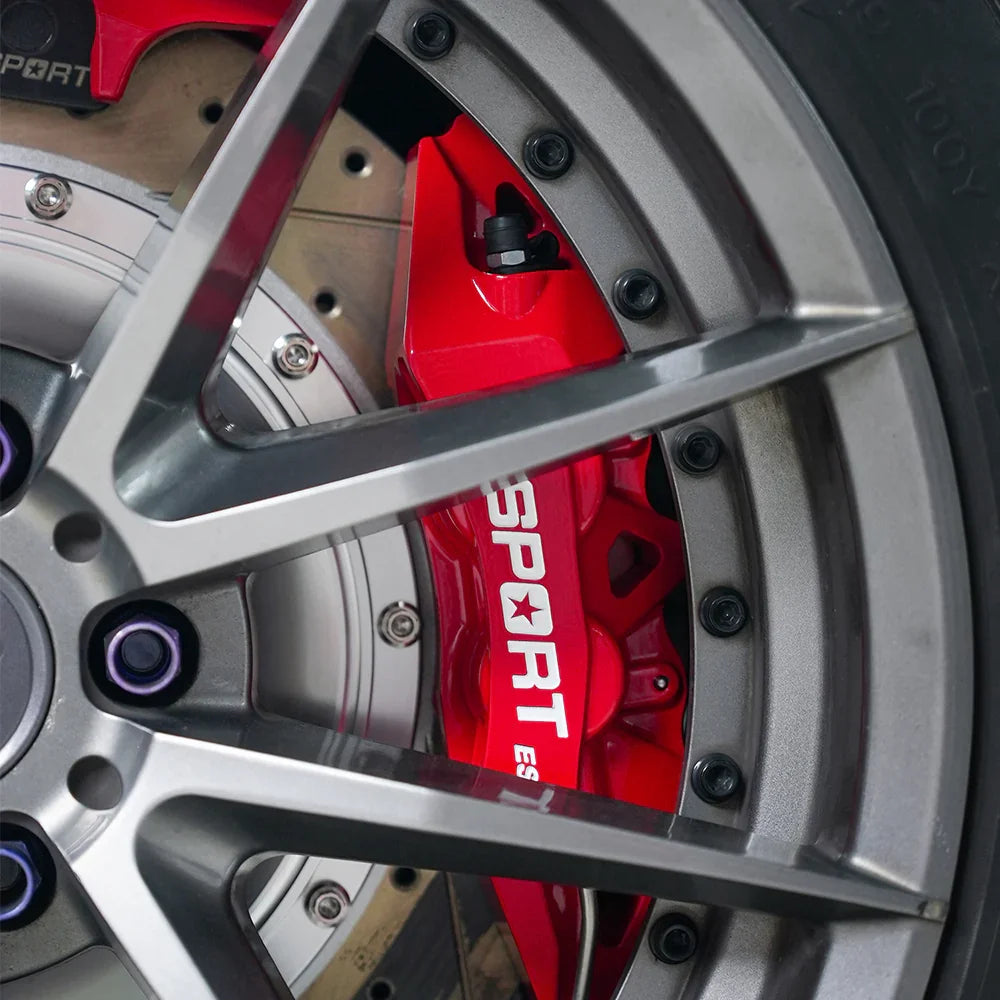

A red TTSPORT ES4 4-piston big brake kit is installed on the 18" rear wheel.
Unboxing the complete TTSPORT ES4 performance big brake kit, including all components: calipers, rotors, pads, brake line, and mounting hardware.

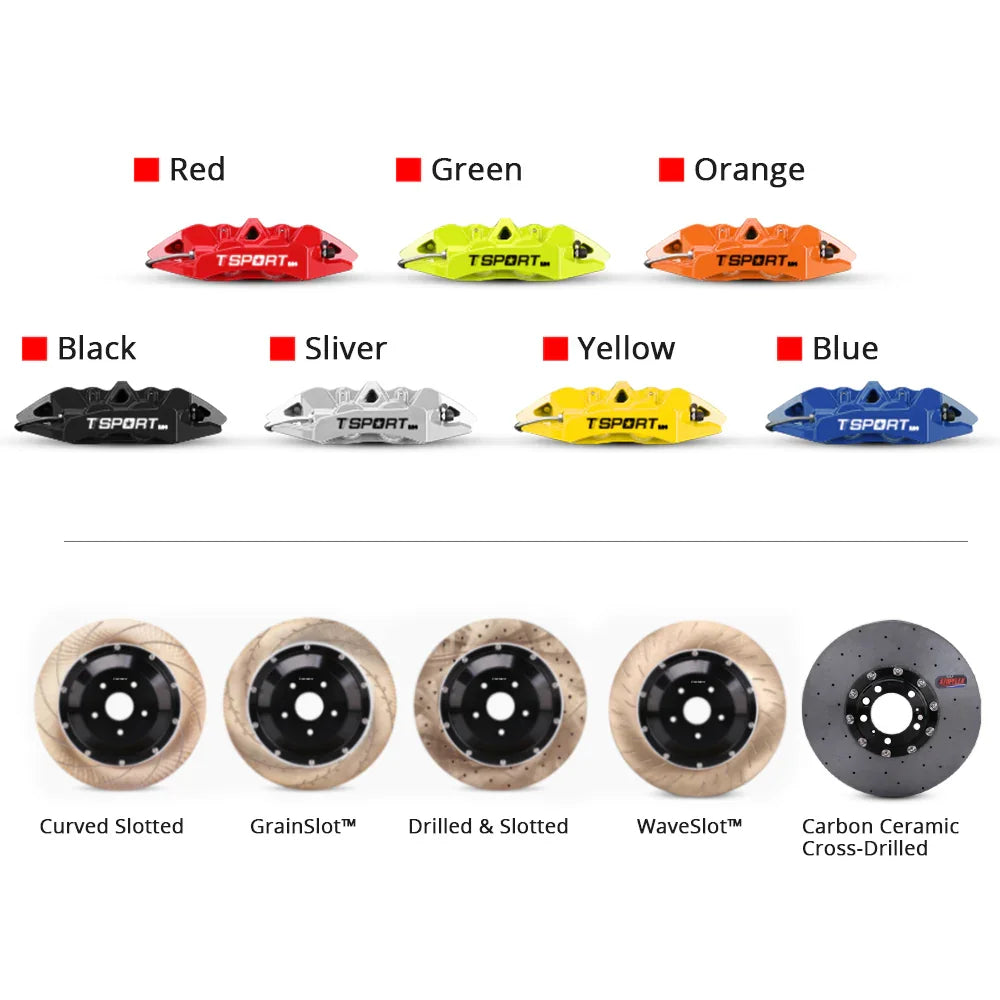

Customization options for the TTSPORT ES4 brake kit, featuring available caliper colors (red, blue, green, orange), rotor designs (drilled and slotted), and rotor materials (steel and carbon ceramic).
Complete TTSPORT ES4 rear wheel big brake kit, showing the 4-piston forged calipers, slotted 2-piece floating rotor, performance pads, and steel-braided brake lines.
Close-up of a red TTSPORT ES4 4-piston forged brake caliper for the rear wheel and a slotted 2-piece floating rotor.
Detailed view of the 4 pistons with dust boot inside a TTSPORT ES4 forged brake caliper.
A red TTSPORT ES4 4-piston big brake kit is installed on the 18" rear wheel.
Unboxing the complete TTSPORT ES4 performance big brake kit, including all components: calipers, rotors, pads, brake line, and mounting hardware.
Customization options for the TTSPORT ES4 brake kit, featuring available caliper colors (red, blue, green, orange), rotor designs (drilled and slotted), and rotor materials (steel and carbon ceramic).

Evolution Series ES4 Rear Wheel 4-Pistons Brake Kit

$970.00 USD
$970.00 USD

Shipping costs not included

Caliper Color: Standard Color (As Shown in the Image)
Rotor Size: 345x28mm (Wheel ≥ 18″)
Rotor Material & Design: Steel - Curved Slotted
Complete TTSPORT ES4 rear wheel big brake kit, showing the 4-piston forged calipers, slotted 2-piece floating rotor, performance pads, and steel-braided brake lines.

Evolution Series ES4 Rear Wheel 4-Pistons Brake Kit

$970.00
Complete TTSPORT ES4 rear wheel big brake kit, showing the 4-piston forged calipers, slotted 2-piece floating rotor, performance pads, and steel-braided brake lines.
Close-up of a red TTSPORT ES4 4-piston forged brake caliper for the rear wheel and a slotted 2-piece floating rotor.
Detailed view of the 4 pistons with dust boot inside a TTSPORT ES4 forged brake caliper.
A red TTSPORT ES4 4-piston big brake kit is installed on the 18" rear wheel.
Unboxing the complete TTSPORT ES4 performance big brake kit, including all components: calipers, rotors, pads, brake line, and mounting hardware.
Customization options for the TTSPORT ES4 brake kit, featuring available caliper colors (red, blue, green, orange), rotor designs (drilled and slotted), and rotor materials (steel and carbon ceramic).

Evolution Series ES4 Rear Wheel 4-Pistons Brake Kit

$970.00
Caliper Color: Standard Color (As Shown in the Image)
Rotor Size: 345x28mm (Wheel ≥ 18″)
Rotor Material & Design: Steel - Curved Slotted
Specifications

Complete the System: ES4 Rear Forged 4-Piston Caliper

Don't neglect your rear brakes—balance your setup with the ES4 rear caliper. This forged 4-piston caliper is the essential companion to your front big brake kit. It’s engineered to restore proper brake bias, ensuring your car remains stable and predictable under hard braking, preventing the rear from becoming unsettled.

We designed the ES4 to be lightweight yet incredibly rigid, reducing unsprung mass without sacrificing strength. It’s built with the same high-performance components as our front calipers—including ventilated pistons and high-temperature seals—to deliver consistent, fade-free performance that you can rely on.

Technical Specifications

Caliper
Series Evolution Series
Model ES4
Mounting Position Rear
Number of Pistons 4
Piston Type Two-Piece Vented Pistons with Dust Boots
Piston Diameter 28 mm × 2, 32 mm × 2
Dimensions L 255 × W 139 × H 74 mm
Total Piston Area 28.38 cm²
Manufacturing Process Two-Piece Forged
Net Weight 2.80 kg (single caliper without pad)
Surface Finish High-Temperature Gloss Coating
Recommended Wheel Size 18″ or larger
Recommended Rotor Size ⌀345–380 mm / Thickness 28 mm
Brake Rotor
Material Heat-Treated High Carbon Steel Carbon-Ceramic Composite
Dimensions ⌀345 / 355 / 380 mm × 28 mm ⌀380 mm × 28 mm
Construction 2-Piece Rotor 2-Piece Rotor
Vented / Solid Vented Vented
Floating / Fixed Fixed Floating
Directional Yes Yes
Design Options Curved Slotted / GrainSlot / WaveSlot / Drilled & Slotted Cross Drilled
Brake Pad
Compatible Rotor Material Steel Rotors Carbon-Ceramic Rotors
Operating Temperature 0–550°C 0–700°C
Coefficient of Friction 0.40–0.46 μ 0.46 μ ± 0.15
Brake Hose
Construction 3-Layer Reinforced
Material Inner: PTFE (Teflon); Middle: SUS304 Braided Stainless Steel; Outer: PVC Sheath
Mounting Hardware
Rotor Hat CNC-Machined Aerospace-Grade Aluminum Alloy
Caliper Bracket CNC-Machined Carbon Steel

3-Step Pre-Fitment Check

Step 1: Illustration showing ES4 rear brake kit requires 18-inch or larger wheels.
Step 1: Verify Wheel Size (18" Minimum)
Step 2: Diagram showing how to measure caliper to wheel spoke clearance, minimum 90mm required for ES4 kit.
Step 2: Check Spoke Clearance (Min. 90 mm)
Step 3: Icon representing checking your vehicle's compatibility from a verified list.
Step 3: Confirm Your Vehicle Model Below

Vehicle Compatibility

Don't See Your Model? Our application list is constantly expanding. If your vehicle isn't on the list, just reach out! Provide your year, make, model, and wheel specs, and our team will confirm fitment options for you.

Frequently Asked Questions

How can I be 100% sure this rear kit fits my car?
The best way is to contact us directly. To guarantee a perfect fit, please provide your vehicle's year, make, model, and wheel specifications (size and offset). Sending photos of your current rear brake setup and your VIN can also speed up the confirmation process.

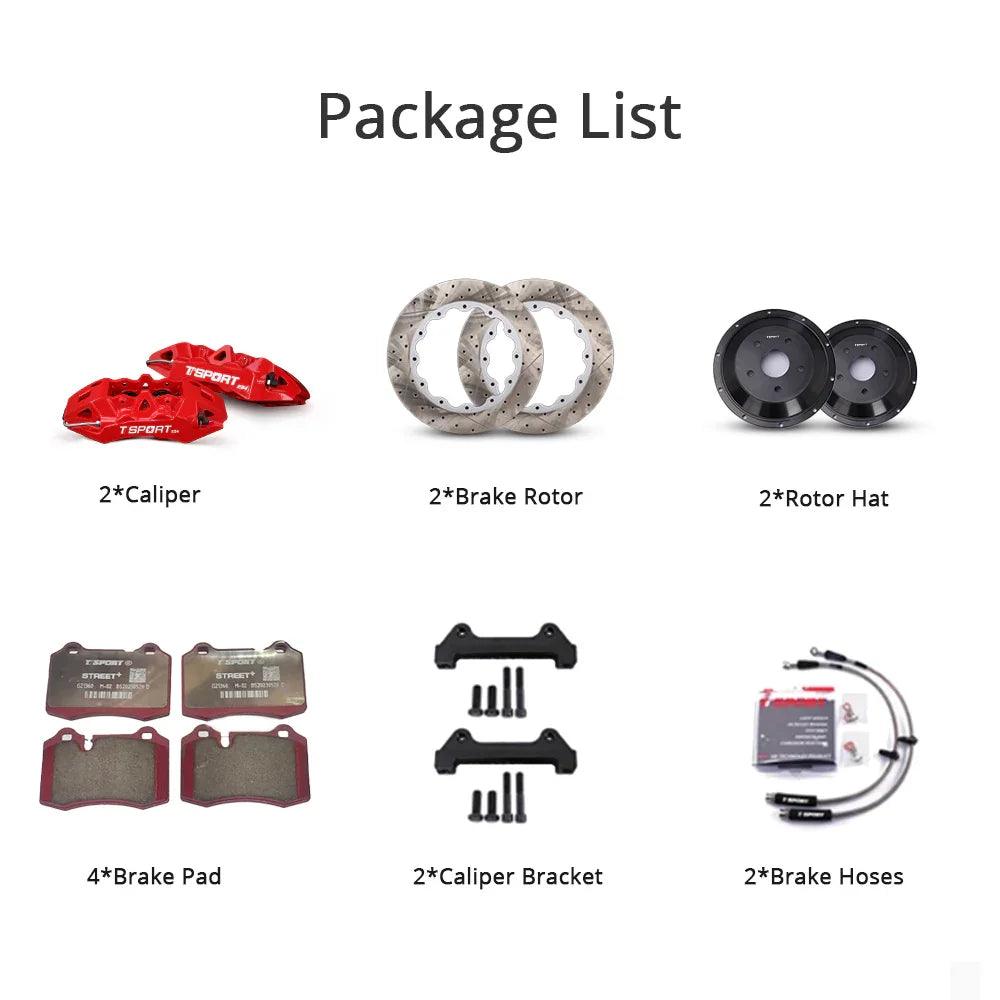

What's included in the complete ES4 rear brake kit?
Our complete rear axle kit is a bolt-on solution that includes everything you need for the upgrade:
  • 2 × ES4 Forged 4-Piston Calipers
  • 2 × Two-Piece Brake Rotors
  • 1 × Set of Performance Brake Pads
  • 2 × CNC-Machined Caliper Mounting Brackets
  • 2 × Stainless Steel Braided Brake Hoses
Why should I upgrade my rear brakes?
When you install a powerful front big brake kit, it shifts the car's brake bias forward. This can make the rear end feel light and unstable during heavy braking. Adding our ES4 rear kit restores the correct balance, ensuring stable, predictable, and ultimately safer performance.
Notice

Brake Kit Purchase Notice


  • Custom‑made products cannot be returned unless there is a genuine quality defect.
  • Spacer requirements vary depending on wheel design; we assist with fitment, but spacer‑related issues do not qualify for returns.

1. Disclaimer

  1. Please provide vehicle make, model year, VIN, and wheel size before ordering TTSPORT products.
  2. Confirm wheel measurements and submit photos as requested — TTSPORT is not liable for issues arising from incorrect specs.
  3. All products are inspected before shipping. Inspect upon delivery and report quality issues within 24 hours.

2. Initial Break‑In Procedure

  1. In a safe area, brake from 60 km/h to 10 km/h with moderate pressure—repeat 10 times.
  2. Drive 500–1,000 km with light to moderate usage before full braking performance. Avoid aggressive stops.
  3. Our high‑carbon steel discs have grooved, color‑treated surfaces to help quick bedding and resist corrosion.

3. Product Warranty

  • Calipers: 1‑year warranty on defects. Lifetime maintenance available (parts charged).
  • Discs & Hoses: 90‑day warranty for defects. Expected lifespan: 40,000–60,000 km.
  • Brake Pads: 90‑day coverage. Typical lifespan: 20,000–40,000 km.
  • Custom Hats/Brackets: Fit guaranteed; no warranty post-installation.

4. Usage & Maintenance

  1. Do not wash immediately after hard braking to prevent rotor warpage.
  2. Allow extra stopping distance when driving in wet conditions.
  3. If you experience unusual noise or vibration, consult your installer immediately.

Recommended service intervals:

  • Replace rotors when wear exceeds 3 mm.
  • Front pads: every 30,000 km.
  • Rear pads: every 50,000–60,000 km.
  • Brake fluid: every 40,000 km or every 2 years.
