Product Detail
xEvolution Series · Front Axle · 6-Piston Forged

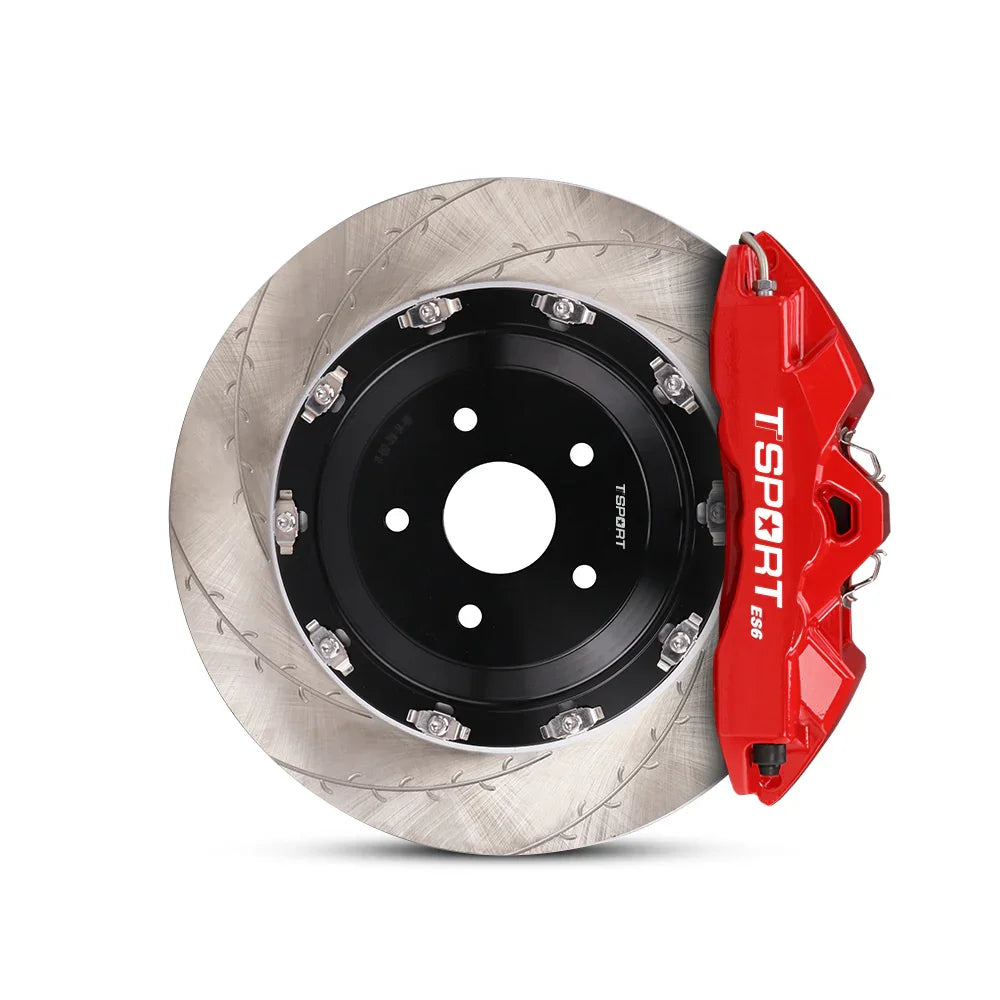

Evolution ES6 Front 6-Piston Big Brake Kit
A platform-adapted front big brake upgrade built around a two-piece forged 6-piston caliper, a 32 mm two-piece rotor package, and matched friction. The ES6 is engineered for firmer pedal feel, stronger initial bite, and repeatable stopping power on the street and at the track.
Why Builders Choose the ES6

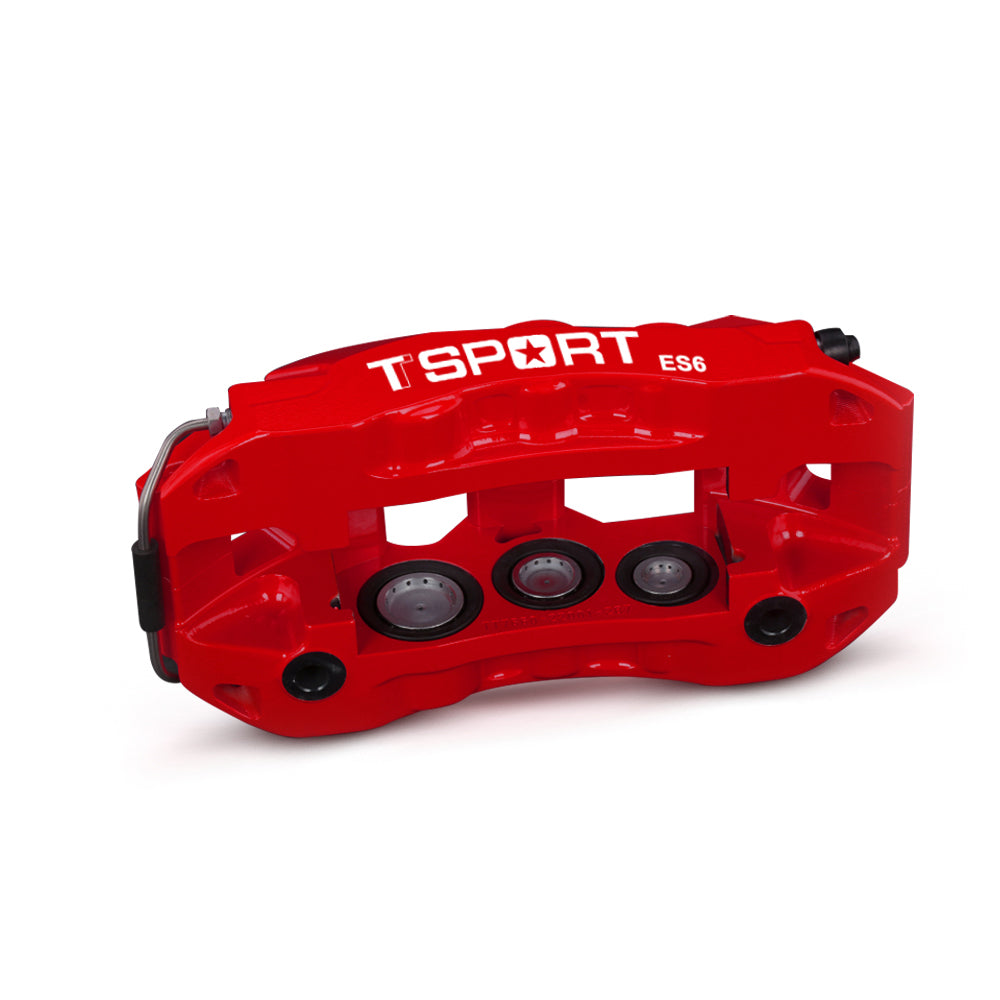

Staggered 27/32/38 mm pistons
Six pistons sized to balance pad loading across the rotor face, smoothing torque buildup and reducing taper wear.
Two-piece 355 or 380 mm rotors
32 mm internally vented faces on CNC aluminum hats for better heat capacity and lower rotating mass.
Stainless-braided PTFE lines
Minimize hose expansion so pedal travel stays consistent under heat and repeated stops.
Matched pad compounds
Iron-rotor and carbon-ceramic-rotor pads tuned to each rotor material for predictable μ across the operating range.
Caliper architecture
The ES6 body is forged from aluminum billet in two halves, then machined and bolted into a single rigid assembly. Forging produces a denser grain structure than casting, which lets the caliper resist deflection when line pressure spikes. Two-piece heat-insulated pistons with dust boots reduce heat transfer from the pad backing into the brake fluid, helping fight pedal fade in long sessions. A high-temperature gloss coating protects the body from brake dust, road salt, and UV.
Technical Specifications & Kit Options
Choose the iron rotor package for street, canyon, and entry-level track use, or step up to the carbon-ceramic (CCB) package for serious track duty, lower unsprung mass, and higher fade resistance. Each option ships with a friction compound matched to that rotor material — iron pads on iron rotors, ceramic-specific pads on CCB rotors. Mixing is not supported.
| Brake Caliper | ||
|---|---|---|
| Series | Evolution Series | |
| Model / Application | ES6 | |
| Axle Position | Front | |
| Piston Count | 6-piston | |
| Piston Type | Two-piece heat-insulated pistons with dust boots | |
| Piston Diameter | 27 mm × 2 / 32 mm × 2 / 38 mm × 2 | |
| Caliper Dimensions | L 294 mm × W 155 mm × H 84 mm | |
| Total Piston Area | 50.2 cm² per caliper, all pistons combined | |
| Manufacturing Process | Two-piece forged aluminum body | |
| Net Weight | 3.95 kg per caliper, without pads | |
| Surface Finish | High-temperature gloss coating | |
| Recommended Wheel Size | 18 in or larger | |
| Recommended Rotor Size | Ø355–380 mm × 32 mm | |
| Brake Rotor Options | ||
| Rotor Option | Iron (Standard) | Carbon-Ceramic (Option B) |
| Rotor Material | Heat-treated high-carbon cast iron | Carbon-ceramic composite |
| Axle Position | Front | Front |
| Rotor Dimensions | Ø355 / 380 mm × 32 mm | Ø355 / 380 mm × 32 mm |
| Construction | Two-piece rotor assembly | Two-piece rotor assembly |
| Ventilation | Internally vented | Internally vented |
| Rotor Mounting | Fixed or floating, depending on rotor size & vehicle application | Floating |
| Directional Design | Yes — left/right specific | Yes — left/right specific |

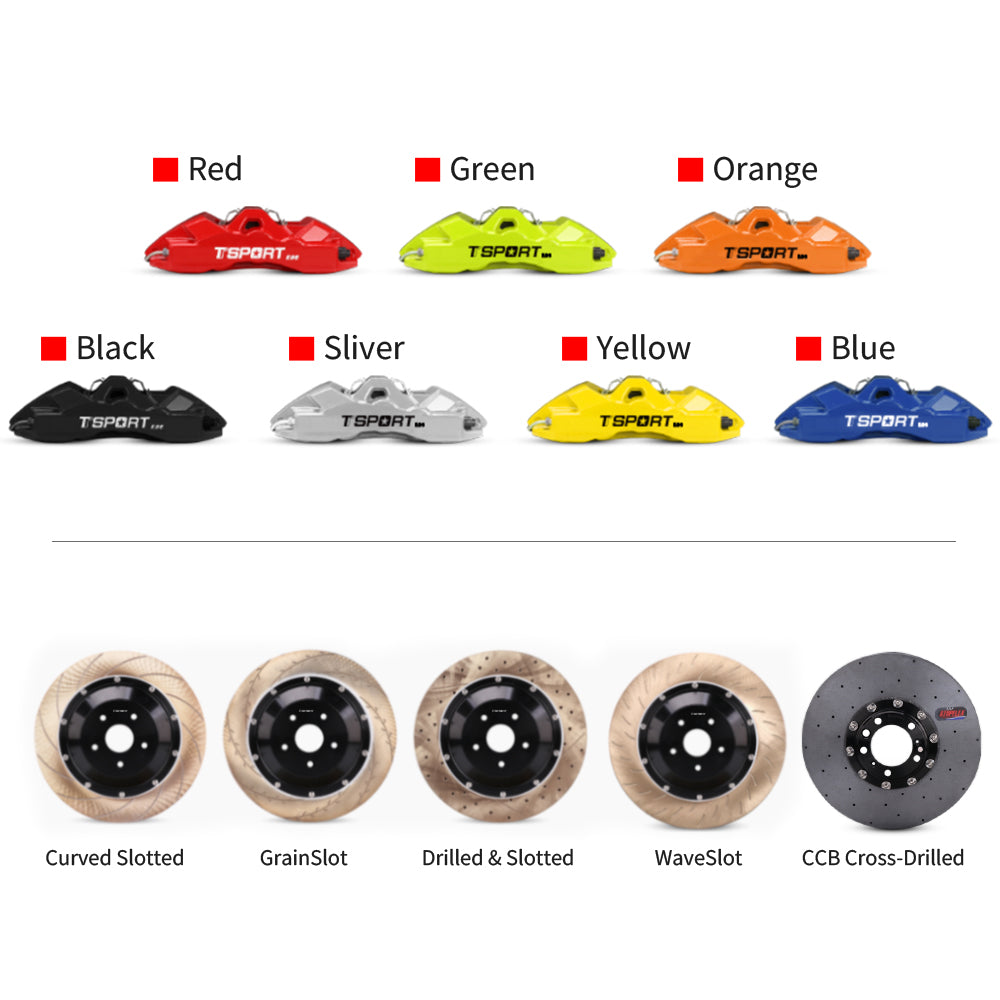

| Rotor Face Pattern | Curved slot / Grain Slot / Wave Slot / Drilled and slotted | Cross-drilled |
| Brake Pad Options | ||
| Pad Option | For Iron Rotors | For CCB Rotors |
| Compatible Rotor Material | Iron / steel rotors only | Carbon-ceramic rotors only |
| Operating Temperature Range | 0–600 °C | 0–700 °C |
| Average Friction Coefficient | μ ≈ 0.38 (varies with temp, pressure, rotor condition) | μ ≈ 0.45 (varies with temp, pressure, rotor condition) |
| Lines | ||
| Brake Line Construction | Three-layer construction | |
| Brake Line Material | PTFE inner liner / SUS304 stainless braid / PVC outer sheath | |
| Brake Line Fittings | Vehicle-specific; caliper-side and chassis-side fittings vary by application | |
| Brackets | ||
| Rotor Hat Manufacturing Process | CNC-machined | |
| Rotor Hat Material | High-strength aluminum alloy | |
| Caliper Bracket Manufacturing Process | CNC-machined | |
| Caliper Bracket Material | Carbon steel | |
| Caliper Mounting Type | Radial mount with vehicle-specific brackets | |
| Fitment & Installation | ||
| Minimum Spoke Clearance | 99 mm | |
| Recommended Wheel Size | 18 in or larger | |
| Bedding-In | Required after installation | |

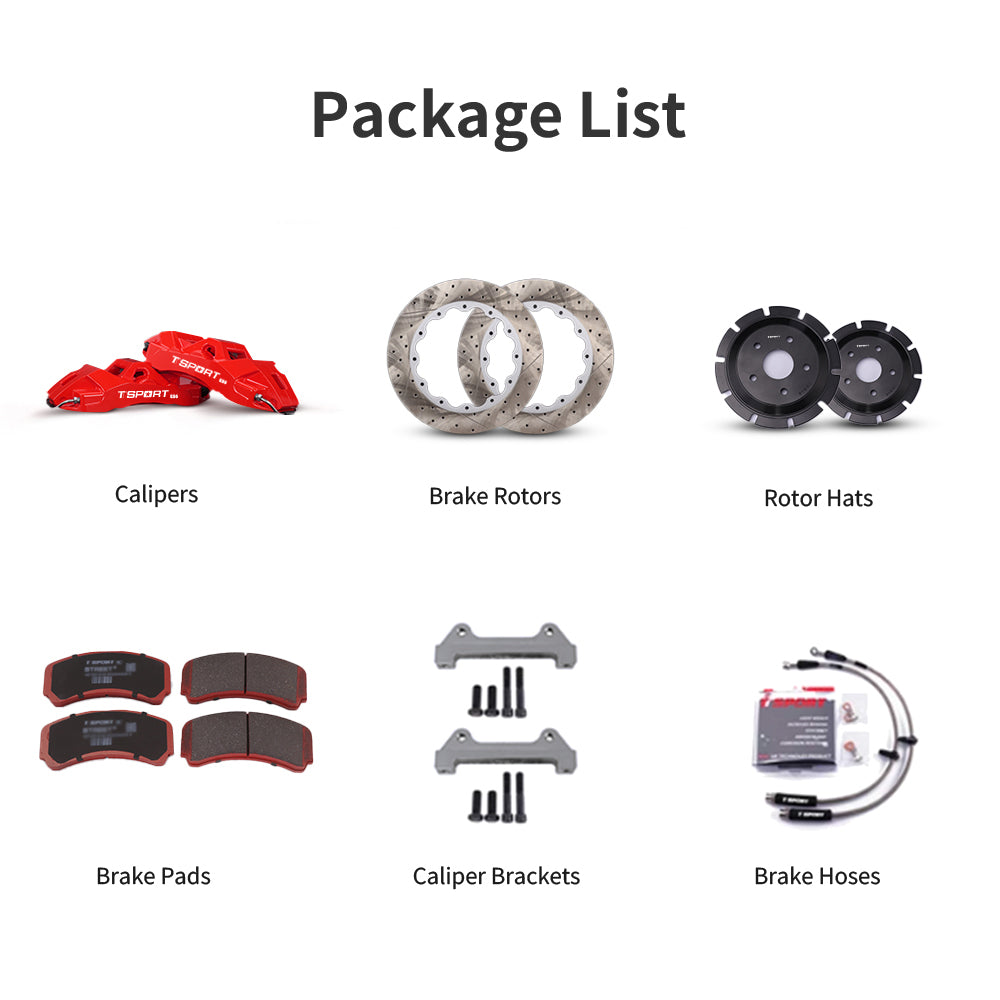

Package List
Calipers ×2
Two forged 6-piston calipers.
Brake Pads
Complete matched front pad set for both calipers.
Brake Rotors ×2
Two two-piece 355 mm or 380 mm × 32 mm rotors with CNC aluminum hats.
Caliper Brackets ×2
Two CNC carbon-steel radial-mount brackets sized to your application.
Rotor Hats ×2
Two CNC aluminum hats.
Brake Hoses ×2
Two stainless-steel braided brake lines.
Will It Fit? Your 3-Step Check
This is a platform-adapted kit. Confirm vehicle year, make, model, trim, wheel diameter, offset, and spoke clearance with TTSPORT before ordering.

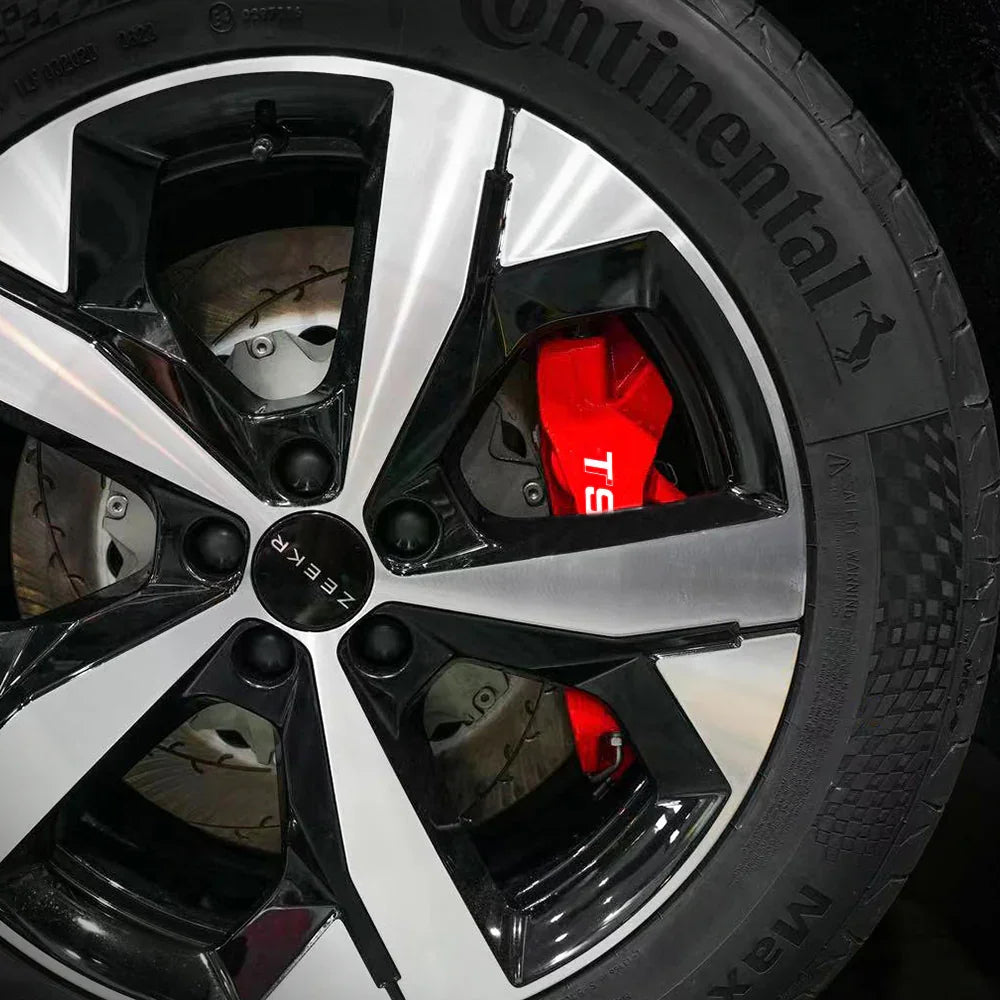

1. Wheel Diameter
The ES6 caliper requires an 18-inch or larger wheel.
2. Spoke Clearance
The ES6 caliper requires a minimum spoke clearance of 99 mm.
3. Vehicle Model
Caliper brackets and brake-line fittings are built to your vehicle, so confirm year, make, model, trim, and wheel specs with our team before purchase.
The ES6 caliper measures L 294 × W 155 × H 84 mm and requires a minimum spoke clearance of 99 mm with an 18-inch or larger wheel. Wheel design, spoke shape, and offset all affect fitment. We recommend verifying clearance against the caliper envelope and rotor diameter before purchase.
Installation & Break-In
- Radial-mount caliper brackets are CNC-cut from carbon steel to your vehicle application.
- Brake-line fittings are matched per vehicle on both the caliper and chassis side.
- Use fresh DOT 4 or higher fluid and bleed thoroughly to firm the pedal.
- Follow the bed-in procedure to deposit an even friction transfer layer before hard use.
Frequently Asked Questions
What does the ES6 big brake kit include?
Each ES6 front kit ships with two forged 6-piston calipers, two two-piece 355 mm or 380 mm × 32 mm rotors with CNC aluminum hats, a matched front pad set, stainless-steel braided lines, and CNC carbon-steel radial-mount brackets sized to your application.
What wheel size do I need to clear the ES6 caliper?
The ES6 caliper requires 18-inch or larger wheels and a minimum spoke clearance of 99 mm. Wheel offset, spoke geometry, and rotor diameter all affect fitment, so confirm clearance against the caliper envelope (L 294 × W 155 × H 84 mm) before ordering.
Should I choose the 355 mm or 380 mm rotor?
Choose 355 mm for daily and spirited street use where wheel clearance is tighter or unsprung weight matters. Choose 380 mm when you need maximum thermal capacity for track sessions, heavy vehicles, or repeated high-speed stops.
What is the difference between the steel and carbon-ceramic (CCB) rotor option?
The high-carbon iron rotor uses pads rated 0–600 °C with an average μ of 0.38 and offers strong street and track value. The CCB option uses carbon-ceramic-specific pads rated 0–700 °C with an average μ of 0.45, lower unsprung mass, and higher fade resistance for serious track duty.
Is a bedding-in procedure required?
Yes. A proper bed-in is required to transfer pad material evenly to the rotor face, stabilize the friction layer, and unlock full bite and modulation. Skipping this step can cause uneven deposits, vibration, and reduced pedal feel.
Does this kit fit my specific car?
The ES6 is a platform-adapted big brake kit. Caliper brackets and brake-line fittings are built to your vehicle, so confirm year, make, model, trim, and wheel specs with our team before purchase.
Ready to spec your ES6 build?
Send us your vehicle details and wheel specs and we'll confirm rotor size, bracket, and line fittings before you order.
Care Guide
xBrake Kits · Fitment · Installation · Care Guide
Brake Kit Care Guide
A brake kit is not just a pair of larger calipers. Calipers, rotors, pads, hoses, brackets, rotor hats, mounting hardware, brake fluid, wheel clearance, and bedding procedure all work together as one system.
This guide explains how to confirm the right TTSPORT brake kit before ordering, what to check before installation, and how to care for the system after installation.
1. Before Ordering: Confirm the Full Vehicle Setup
Do not order a brake kit by vehicle name alone. The correct kit depends on the vehicle, axle position, wheel package, driving use, and brake system layout.
- Vehicle year, make, model, trim, market version, and chassis code if available
- Front or rear axle position
- Current brake rotor diameter, thickness, and caliper type if known
- Wheel diameter, width, offset, spoke shape, and inner barrel clearance
- Tire size and vehicle weight changes from armor, cargo, towing equipment, or track setup
- Driving use: daily street, towing, mountain driving, off-road, HPDE, rally, drift, track, or competition
- Whether the vehicle uses electronic parking brake, brake pad wear sensors, ABS / ESC systems, or special hydraulic routing
Brake kits are application-specific. A visually similar kit can still have the wrong rotor offset, bracket geometry, hose fitting, caliper position, or wheel clearance requirement.
2. Understand What Type of Brake Kit You Are Ordering
Different TTSPORT brake kit series use different hardware layouts. Always confirm what the kit includes before purchase.
Direct-Mount Kits
Use direct-mount calipers and one-piece rotors where specified. These kits do not use rotor hats or caliper brackets unless the final product page clearly states otherwise.
Two-Piece Rotor Kits
Use separate friction rings and rotor hats. Hat offset, ring bolt pattern, hardware style, and rotor direction must be matched correctly.
Racing / Custom Kits
May require bespoke brackets, rotor hats, brake lines, and engineering confirmation based on knuckle, hub, wheel, and competition use.
Off-Road / Heavy Vehicle Kits
Require extra attention to wheel clearance, tire size, vehicle load, descent control, hose routing, and dust / water exposure.
Do not assume every brake kit includes the same parts. Package contents vary by product series, vehicle application, and final order configuration.
3. Confirm the Kit Specification Before Payment
Before finalizing the order, review the kit specification carefully. Confirm the brake kit is matched to your vehicle and wheel setup, not only to the model name.
- Confirm vehicle application and axle position
- Confirm caliper model, piston count, and caliper color if applicable
- Confirm rotor diameter, rotor thickness, rotor construction, and left / right direction if applicable
- Confirm brake pad compound and intended use
- Confirm brake hose fitting type and routing compatibility
- Confirm whether caliper brackets, rotor hats, mounting hardware, wear sensors, or brake fluid are included
- Confirm minimum wheel diameter and spoke clearance requirement
- Confirm lead time, shipping method, and final invoice details
If any part is not listed in the final order or product page, do not assume it is included.
4. Before Installation: Inspect the Complete Kit
Inspect every component before installation. Do not modify, grind, drill, stretch, force, or space brake kit components to make them fit.
- Check all received parts against the order confirmation
- Inspect calipers, rotors, brackets, hats, hoses, pads, and hardware for shipping damage
- Confirm left / right caliper and rotor orientation where applicable
- Confirm rotor size, pad shape, hose fittings, bracket layout, and hardware style before installation
- Clean all mounting faces before assembly
- Confirm torque values, bedding procedure, fluid type, and bleeding procedure before starting work
- Use a qualified brake technician for installation
Safety: Brake kits affect braking force, hydraulic sealing, heat control, wheel clearance, and vehicle stability. Do not install the kit if fitment, torque, direction, clearance, or compatibility is unclear.
5. Installation Checks
Correct installation is as important as the brake kit itself. A properly engineered kit can still perform poorly if installed with dirty mounting faces, incorrect torque, poor hose routing, or trapped air in the hydraulic system.
Caliper Position
Verify caliper centering over the rotor and confirm even pad sweep across the friction surface.
Rotor Orientation
Confirm left / right rotor direction if the rotor uses directional vanes or directional face pattern.
Brake Hose Routing
Check brake hose length and routing at full steering lock and full suspension travel. No twisting, rubbing, stretching, or kinking.
Wheel Clearance
Check caliper-to-spoke and caliper-to-barrel clearance before road use. Wheel diameter alone is not enough.
Brake Fluid & Bleeding
Use the correct brake fluid type and bleed the system until pedal feel is firm and consistent.
Hardware Security
Torque all brake hardware to the specified value. Do not reuse damaged, unknown, stretched, or corroded safety-critical fasteners.
6. Bedding and First Heat Cycle
Brake pads and rotors need a controlled bedding process before full performance is available. Bedding helps create an even transfer layer on the rotor surface, improving bite, pedal consistency, and vibration resistance.
- Follow the bedding procedure supplied with the exact pad and rotor compound
- Use moderate heat first unless the supplied procedure requires otherwise
- Do not start with emergency stops on a fresh pad / rotor setup
- Avoid holding the brake pedal while stopped on very hot pads and rotors
- Allow the brakes to cool after bedding
- After the first heat cycle, inspect pad contact, rotor surface, hose routing, hardware security, and fluid leaks
Street pads, race pads, iron rotors, two-piece rotors, and carbon ceramic rotors may require different bedding procedures. Use the procedure supplied with the specific kit.
7. Initial Break-In Period
After installation and bedding, give the system a short break-in period before aggressive use. Pedal feel, pad contact, dust output, and noise may continue to settle after the first drives.
- Avoid repeated emergency stops unless required for safety
- Avoid hard track use until bedding and inspection are complete
- Monitor pedal feel, vibration, noise, smell, and rotor surface appearance
- Recheck for fluid leaks after the first road test
- Recheck torque where the kit instructions require post-heat-cycle inspection
- Contact TTSPORT if brake feel changes suddenly after installation
8. Routine Care and Inspection
Brake kits need regular inspection, especially after track use, off-road use, towing, mountain driving, winter salt exposure, or any brake service.
- Inspect brake pads for uneven wear, taper, glazing, cracking, or backing-plate damage
- Inspect rotors for cracks, heavy scoring, hot spots, minimum thickness, and runout
- Inspect calipers for fluid seepage, piston movement, dust boot damage, and uneven pad retraction
- Inspect brake hoses for rubbing, cuts, swelling, leaks, and fitting corrosion
- Inspect brackets, rotor hats, and mounting hardware for cracks, fretting, corrosion, or loosening
- Check brake fluid level, color, service age, and boiling-point suitability for your driving use
- Clean brake dust from wheels and calipers regularly, especially after wet, salty, or track conditions
9. Care by Use Case
Daily Street
Inspect pads, rotors, fluid level, and hose condition during normal service intervals. Prioritize quiet operation, smooth pedal feel, and even wear.
Towing & Mountain Roads
Check pad thickness, rotor surface condition, and fluid condition more often. Long descents create sustained heat even without track use.
Off-Road
Inspect for mud, sand, stone impact, hose abrasion, dust boot damage, and caliper contamination after trail use.
Track / HPDE
Inspect pads, rotors, fluid, and hardware before and after every event. Track heat shortens service intervals.
Drift / Competition
Check rear brake temperature, hydraulic handbrake behavior, pad wear, rotor cracking, and hardware condition frequently.
Carbon Ceramic
Use only compatible pads and approved bedding procedures. Inspect rotor surface condition carefully and avoid incompatible friction materials.
10. Stop Driving If You Notice These Symptoms
Do not continue driving if the brake system shows any of the following symptoms. Inspect the system or contact a qualified brake technician before using the vehicle again.
- Soft pedal, sinking pedal, or sudden increase in pedal travel
- Brake fluid leak or wetness near a line, caliper, fitting, or master cylinder
- Grinding, scraping, severe vibration, or heavy brake judder
- Vehicle pulling strongly to one side under braking
- Burning smell after light driving
- Loose wheel, rotor, caliper, bracket, or hardware noise
- Brake warning light, ABS warning light, or traction-control fault after brake work
Need help confirming brake kit setup or care?
Send your vehicle details, brake kit series, wheel specs, driving use, photos, and any symptoms you notice. TTSPORT will help confirm fitment, installation checks, and the correct care path for your brake kit.
- Choosing a selection results in a full page refresh.
