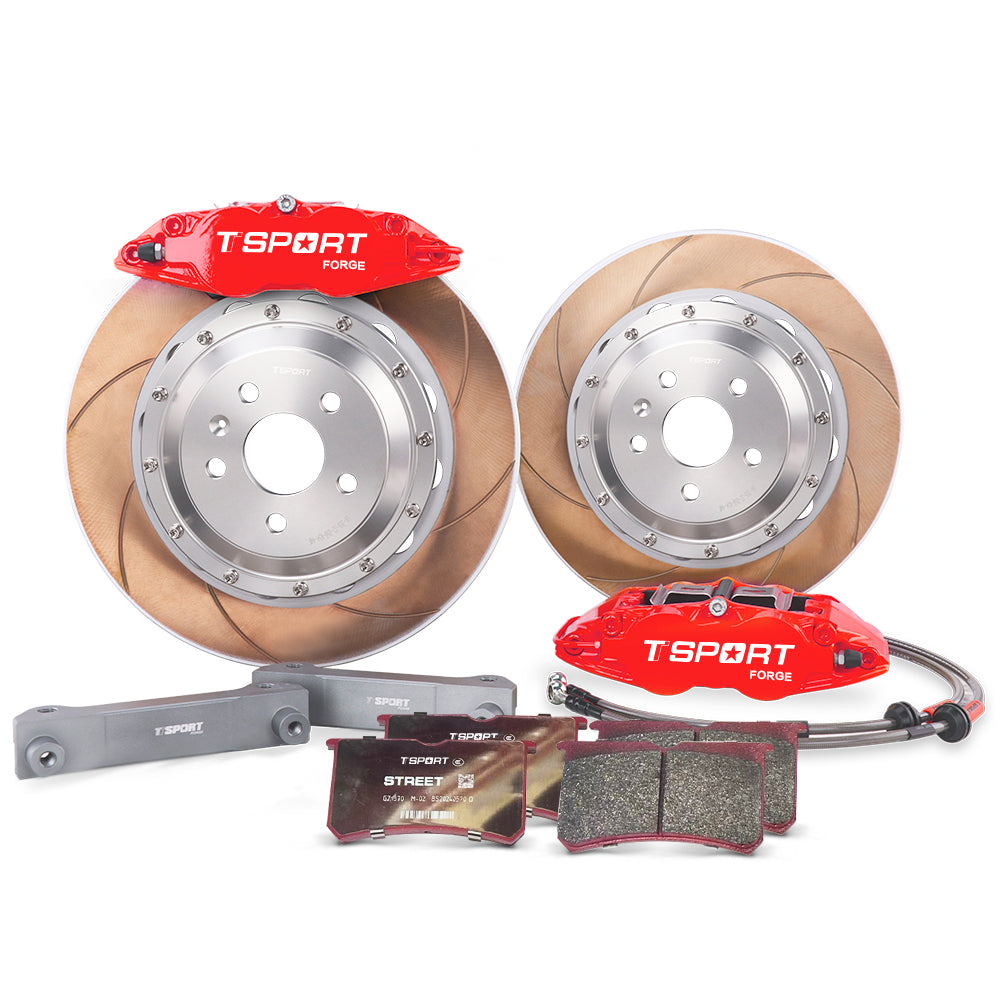

Complete TTSPORT 8611S front wheel big brake kit, showing the 6-piston forged calipers, slotted 2-piece floating rotor, performance pads, and steel-braided brake lines.

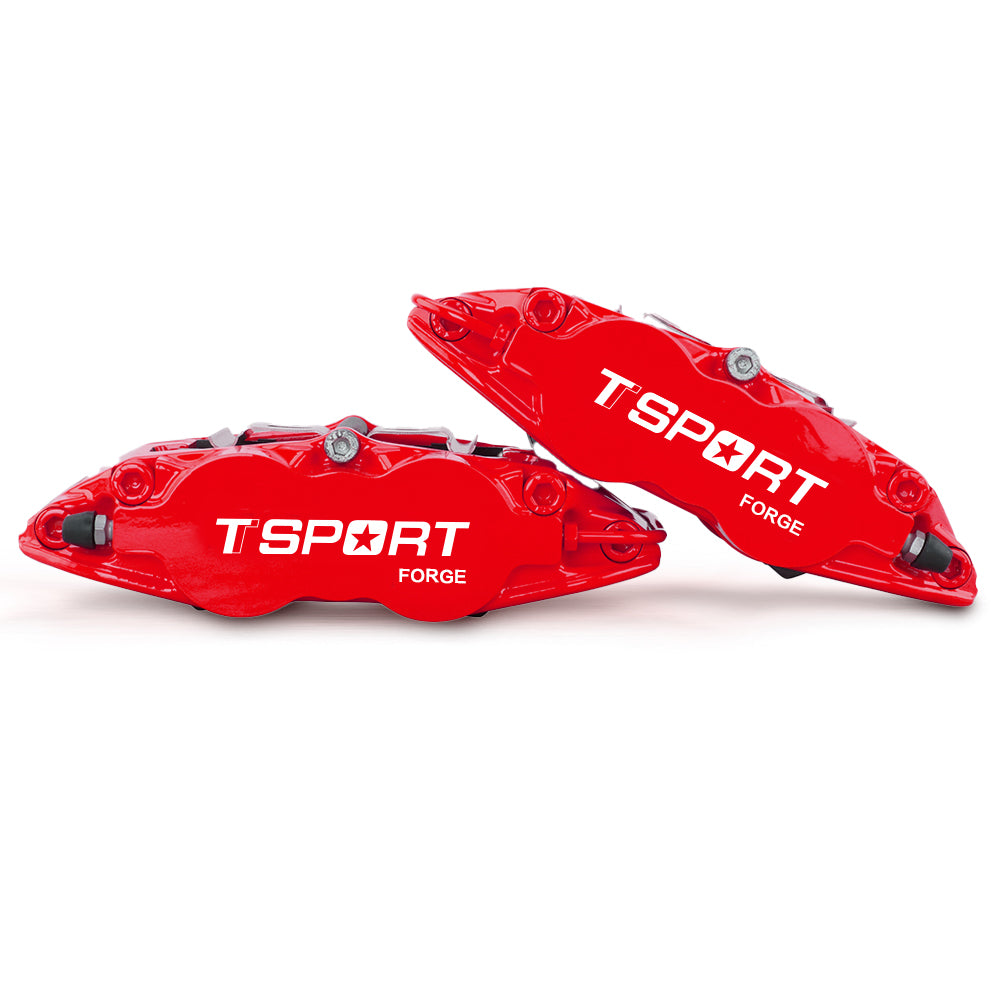

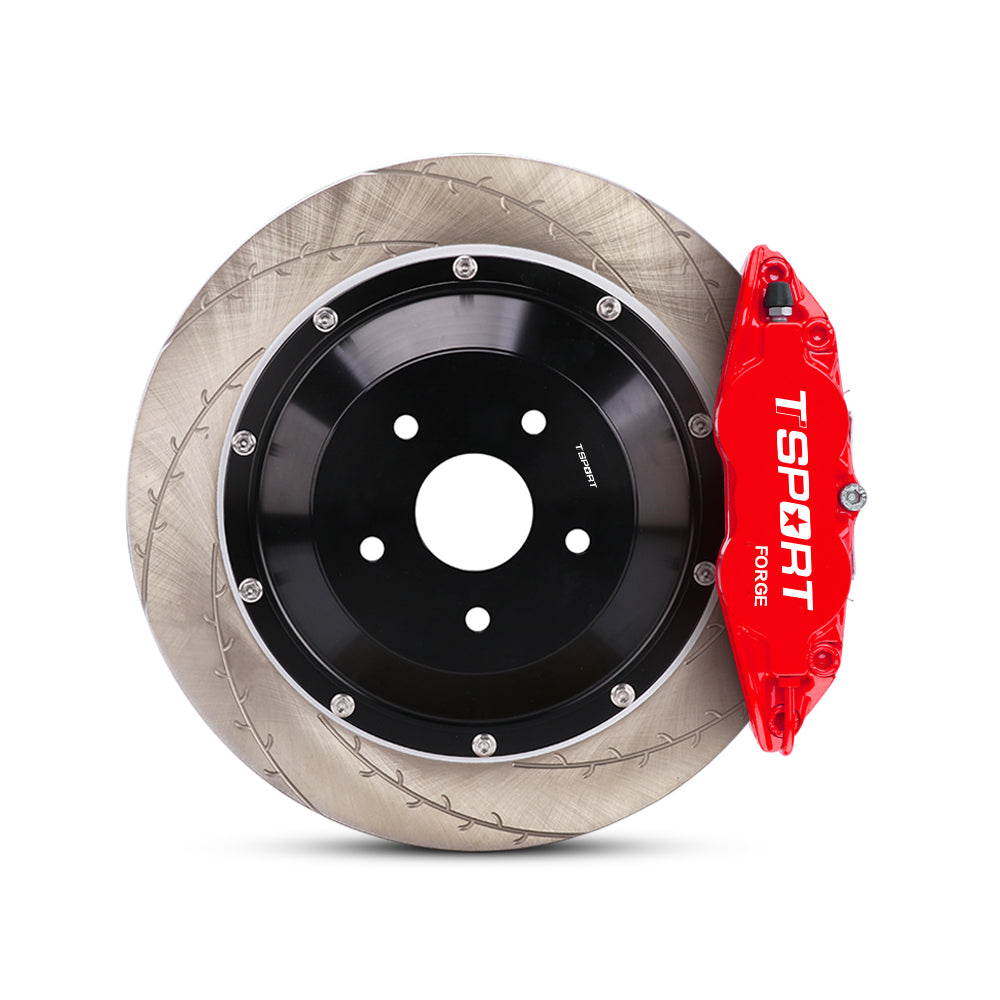

Close-up of a red TTSPORT 8611S 6-piston forged brake caliper for the front wheel and a slotted 2-piece floating rotor.
Detailed view of the 6 pistons with dust boot inside a TTSPORT 8611S forged brake caliper.

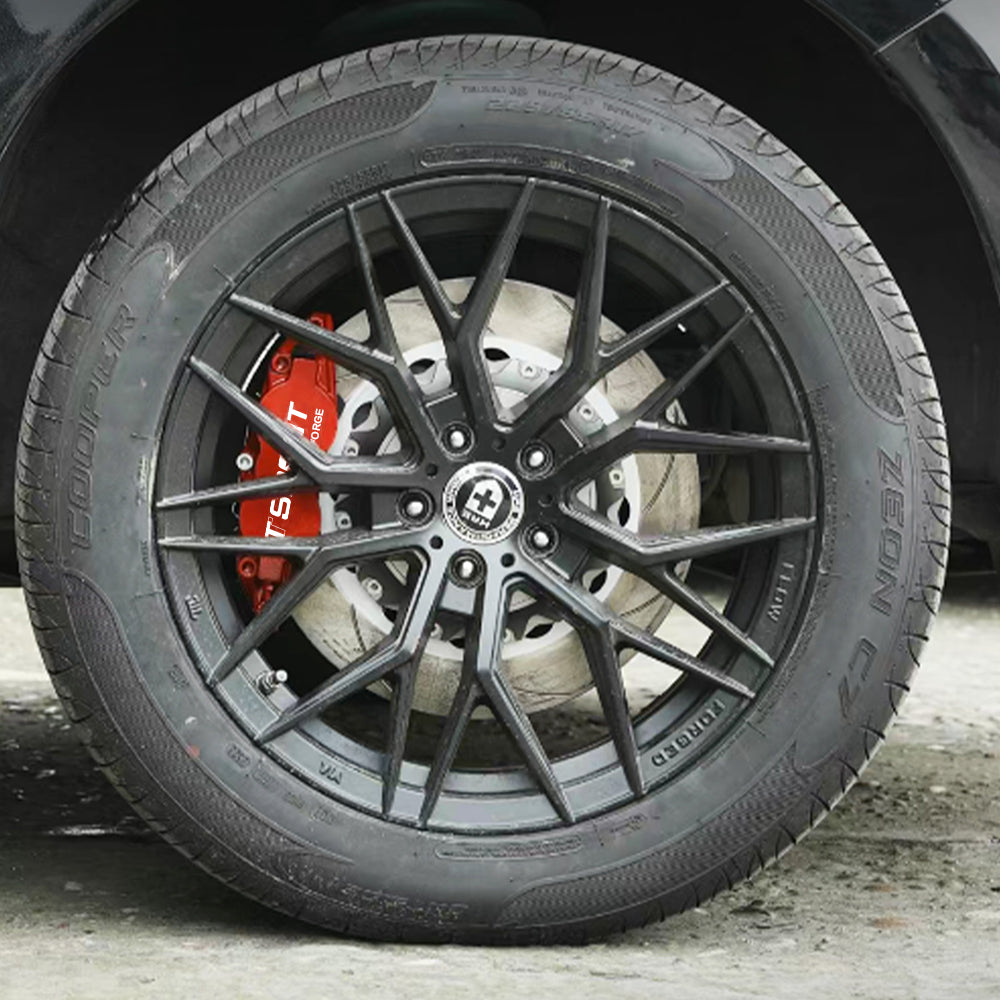

A red TTSPORT 8611S 6-piston big brake kit is installed on the 17" front wheel.
Unboxing the complete TTSPORT 8611S performance big brake kit, including all components: calipers, rotors, pads, brake line, and mounting hardware.

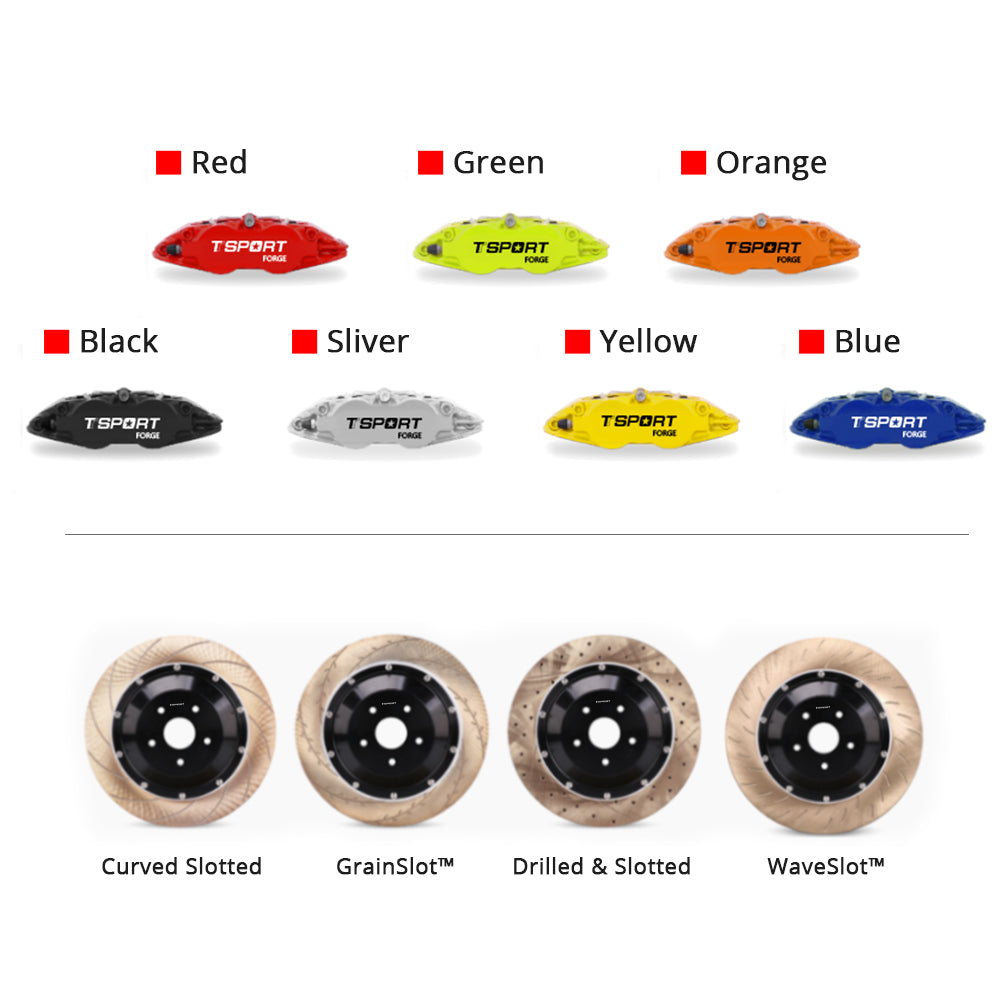

Customization options for the TTSPORT 8611S brake kit, featuring available caliper colors (red, blue, green, orange), rotor designs (drilled and slotted).
Complete TTSPORT 8611S front wheel big brake kit, showing the 6-piston forged calipers, slotted 2-piece floating rotor, performance pads, and steel-braided brake lines.
Close-up of a red TTSPORT 8611S 6-piston forged brake caliper for the front wheel and a slotted 2-piece floating rotor.
Detailed view of the 6 pistons with dust boot inside a TTSPORT 8611S forged brake caliper.
A red TTSPORT 8611S 6-piston big brake kit is installed on the 17" front wheel.
Unboxing the complete TTSPORT 8611S performance big brake kit, including all components: calipers, rotors, pads, brake line, and mounting hardware.
Customization options for the TTSPORT 8611S brake kit, featuring available caliper colors (red, blue, green, orange), rotor designs (drilled and slotted).

Classic Series 8611S Front Wheel 6-Pistons Brake Kit

$1,100.00 USD
$1,100.00 USD

Shipping costs not included

Caliper Color: Standard Color (As Shown in the Image)
Rotor Size: 330x28mm (Wheel ≥ 17″)
Rotor Material & Design: Steel - Curved Slotted
Complete TTSPORT 8611S front wheel big brake kit, showing the 6-piston forged calipers, slotted 2-piece floating rotor, performance pads, and steel-braided brake lines.

Classic Series 8611S Front Wheel 6-Pistons Brake Kit

$1,100.00
Complete TTSPORT 8611S front wheel big brake kit, showing the 6-piston forged calipers, slotted 2-piece floating rotor, performance pads, and steel-braided brake lines.
Close-up of a red TTSPORT 8611S 6-piston forged brake caliper for the front wheel and a slotted 2-piece floating rotor.
Detailed view of the 6 pistons with dust boot inside a TTSPORT 8611S forged brake caliper.
A red TTSPORT 8611S 6-piston big brake kit is installed on the 17" front wheel.
Unboxing the complete TTSPORT 8611S performance big brake kit, including all components: calipers, rotors, pads, brake line, and mounting hardware.
Customization options for the TTSPORT 8611S brake kit, featuring available caliper colors (red, blue, green, orange), rotor designs (drilled and slotted).

Classic Series 8611S Front Wheel 6-Pistons Brake Kit

$1,100.00
Caliper Color: Standard Color (As Shown in the Image)
Rotor Size: 330x28mm (Wheel ≥ 17″)
Rotor Material & Design: Steel - Curved Slotted
Specifications

Track-Ready Performance: 8611S Forged 6-Piston Caliper

For the driver who pushes their car to the absolute limit, the 8611S delivers. This is our track-focused, lightweight 6-piston caliper, engineered with one goal: to provide the ultimate resistance to brake fade during the most demanding conditions. If you're tired of a soft pedal after a few hard laps, this is your solution.

The secret is our race-spec castellated pistons. This cutting-edge design minimizes contact with the brake pad, drastically cutting heat transfer to your brake fluid and ensuring a firm, confident pedal, stop after stop. Combined with a progressive piston layout for precise control and high-temperature seals, the 8611S provides uncompromising stopping power for the track day enthusiast and serious street performer.

Technical Specifications

Caliper
Series Classic Series
Model 8611S
Mounting Position Front
Number of Pistons 6
Piston Type Race-Spec Castellated Pistons without Dust Boots
Piston Diameter 28 mm × 4, 41 mm × 2
Dimensions L 243 × W 129 × H 71 mm
Total Piston Area 51.00 cm²
Manufacturing Process Two-Piece Forged
Net Weight 2.10 kg (single caliper without pad)
Surface Finish High-Temperature Gloss Coating
Recommended Wheel Size 17″ or larger
Recommended Rotor Size ⌀330–355 mm / Thickness 28 mm
Brake Rotor
Material Heat-Treated High Carbon Steel
Dimensions ⌀330 / 355 mm × 28 mm
Construction 2-Piece Rotor
Vented / Solid Vented
Floating / Fixed Fixed
Directional Yes
Design Options Curved Slotted / GrainSlot / WaveSlot / Drilled & Slotted
Brake Pad
Compatible Rotor Material Steel Rotors
Operating Temperature 0–550°C
Coefficient of Friction 0.40–0.46 μ
Brake Hose
Construction 3-Layer Reinforced
Material Inner: PTFE (Teflon); Middle: SUS304 Braided Stainless Steel; Outer: PVC Sheath
Mounting Hardware
Rotor Hat CNC-Machined Aerospace-Grade Aluminum Alloy
Caliper Bracket CNC-Machined Carbon Steel

3-Step Pre-Fitment Check

Step 1: Illustration showing 8611S big brake kit requires 17-inch or larger wheels.
Step 1: Verify Wheel Size (17" Minimum)
Step 2: Diagram showing how to measure caliper to wheel spoke clearance, minimum 82mm required for 8611S kit.
Step 2: Check Spoke Clearance (Min. 82 mm)
Step 3: Icon representing checking your vehicle's compatibility from a verified list.
Step 3: Confirm Your Vehicle Model Below

Vehicle Compatibility

Don't See Your Model? Our application list is constantly expanding. If your vehicle isn't on the list, just reach out! Provide your year, make, model, and wheel specs, and our team will confirm fitment options for you.

Frequently Asked Questions

What are "castellated pistons" and why do I want them?
Castellated (or "ventilated") pistons have special grooves that dramatically reduce the contact area with the back of the brake pad. This creates a thermal barrier, significantly cutting down on heat transfer to your brake fluid. It's a race-proven technology that provides the ultimate defense against brake fade during high-performance driving.
This caliper has no dust boots. Can I still use it on the street?
The 8611S is a track-focused caliper. Removing the rubber dust boots allows us to use ultra-high-temperature seals that won't fail under extreme track conditions. While this maximizes performance, it means the pistons are more exposed to road grime. For street-driven cars, this requires more frequent inspection and cleaning to ensure long-term reliability.

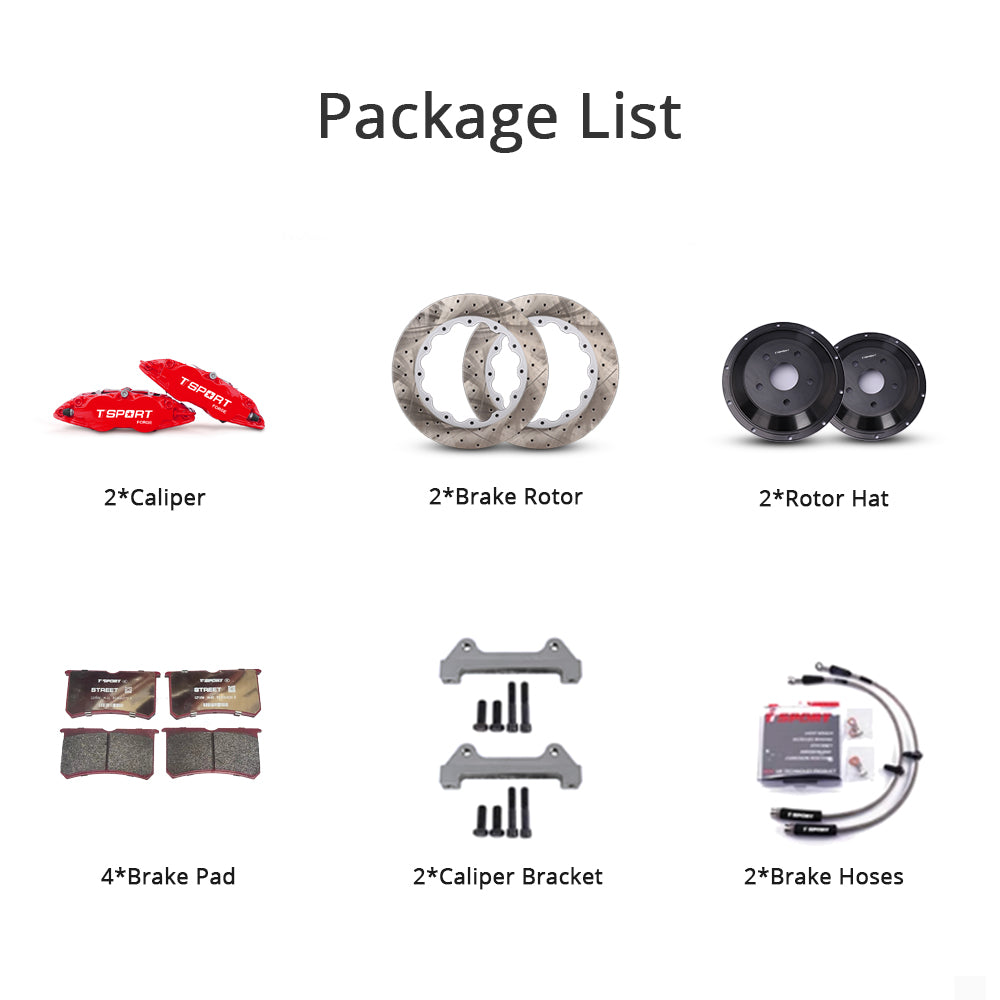

What's included in the complete 8611S brake kit?
This is a complete, bolt-on front axle upgrade. The kit includes:
  • 2 × 8611S Forged 6-Piston Calipers
  • 2 × Two-Piece Brake Rotors
  • 1 × Set of Performance Brake Pads
  • 2 × CNC-Machined Caliper Mounting Brackets
  • 2 × Stainless Steel Braided Brake Hoses
Notice

Brake Kit Purchase Notice


  • Custom‑made products cannot be returned unless there is a genuine quality defect.
  • Spacer requirements vary depending on wheel design; we assist with fitment, but spacer‑related issues do not qualify for returns.

1. Disclaimer

  1. Please provide vehicle make, model year, VIN, and wheel size before ordering TTSPORT products.
  2. Confirm wheel measurements and submit photos as requested — TTSPORT is not liable for issues arising from incorrect specs.
  3. All products are inspected before shipping. Inspect upon delivery and report quality issues within 24 hours.

2. Initial Break‑In Procedure

  1. In a safe area, brake from 60 km/h to 10 km/h with moderate pressure—repeat 10 times.
  2. Drive 500–1,000 km with light to moderate usage before full braking performance. Avoid aggressive stops.
  3. Our high‑carbon steel discs have grooved, color‑treated surfaces to help quick bedding and resist corrosion.

3. Product Warranty

  • Calipers: 1‑year warranty on defects. Lifetime maintenance available (parts charged).
  • Discs & Hoses: 90‑day warranty for defects. Expected lifespan: 40,000–60,000 km.
  • Brake Pads: 90‑day coverage. Typical lifespan: 20,000–40,000 km.
  • Custom Hats/Brackets: Fit guaranteed; no warranty post-installation.

4. Usage & Maintenance

  1. Do not wash immediately after hard braking to prevent rotor warpage.
  2. Allow extra stopping distance when driving in wet conditions.
  3. If you experience unusual noise or vibration, consult your installer immediately.

Recommended service intervals:

  • Replace rotors when wear exceeds 3 mm.
  • Front pads: every 30,000 km.
  • Rear pads: every 50,000–60,000 km.
  • Brake fluid: every 40,000 km or every 2 years.
