Volkswagen CC Big Brake Kit Upgrade / TTSPORT Classic 9040

The Volkswagen CC gets called "the best-looking VW" for a reason, but its factory brakes are still tuned for daily driving, not repeated hard stops. This CC's owner wanted more confidence at the pedal, so the shop installed a TTSPORT 9040 front kit with a 355x32mm rotor and matched it with a 330x12mm rear rotor upgrade and stainless lines.

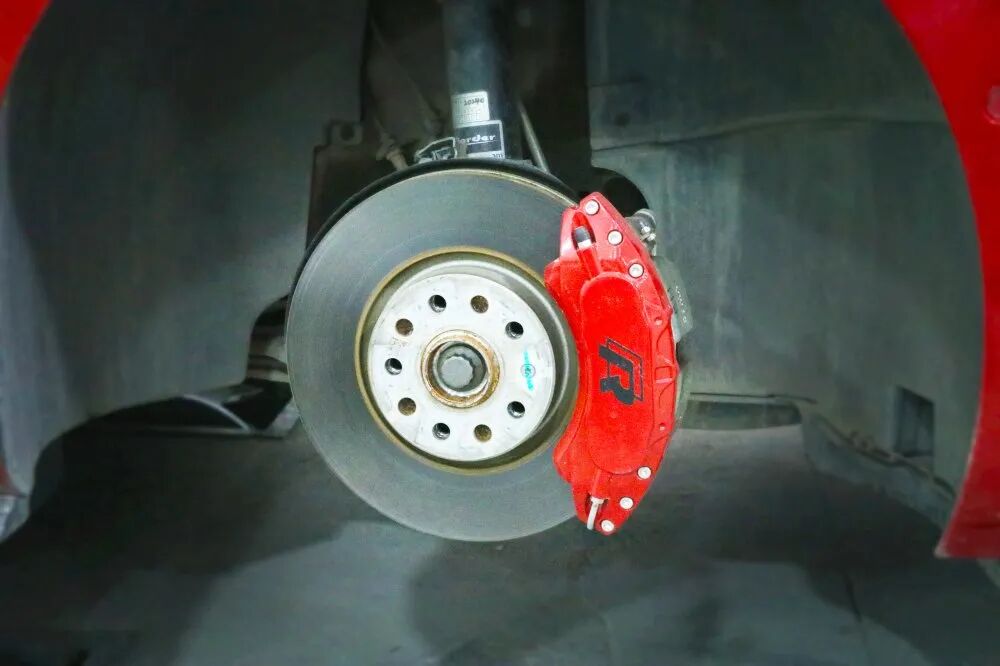

The factory setup looks fine at a glance, but repeated braking builds heat quickly at the caliper and rotor. Some owners try to dress up the look with a bolt-on caliper cover, but that cover sits right against a part that needs to shed heat, not trap it — and under sustained braking it can crack loose. A proper big brake kit replaces the hardware doing the actual work instead.

Vehicle & Kit Specs

Why It Works

Forging the caliper body makes it stiffer and lighter than a comparable cast piece, so less pedal effort gets lost to caliper flex and more of it goes straight into clamping the pads. The 355x32mm front rotor adds mass and surface area over the stock disc, which means more heat capacity before the system starts to fade on repeated stops. On the rear, the 330x12mm rotor and stainless lines keep braking balanced front-to-rear instead of leaving the rear axle to do less work than it should.

• Forged six-piston caliper for a stiffer, lighter clamp than the factory unit
• 355x32mm heat-treated front rotor sized to resist fade under repeated braking
• Confirmed to fit behind the CC's factory 18-inch wheels
