Volkswagen Magotan Big Brake Kit Upgrade / TTSPORT Classic 5440
The Volkswagen Magotan has a reputation for being a solid, durable German sedan, but its factory brakes don't quite live up to that image — 60-to-0 stops in the 40-meter range are on the long side by current standards. This owner swapped the stock front brakes for a TTSPORT Classic 5440 kit, chasing a firmer pedal and a shorter stopping distance without touching the 19-inch wheels already on the car.
The Magotan is one of the best-selling sedans in the domestic B-segment, prized for its composed handling and business-friendly styling. But like a lot of stock family sedans, the factory front brakes were sized for everyday commuting, not repeated hard stops. Under sustained braking the pedal goes soft and stopping distances stretch out — the classic signs of a caliper and rotor package that's simply undersized for the car's mass and speed potential.
Vehicle & Kit Specs
Here's the hardware breakdown for this build:
| Item | Specification |
|---|---|
| Vehicle | Volkswagen Magotan, 19-inch factory wheels |
| Front caliper | TTSPORT Classic 5440 forged four-piston caliper |
| Front rotor | High-carbon heat-treated rotor |
| Bracket | Vehicle-specific radial-mount caliper bracket |
| Pads / lines | TTSPORT pads and stainless steel brake lines |
| Hardware | Brake fluid and mounting hardware |
The full manufacturer spec sheet for the Classic 5440 caliper used in this build:
| Brake Caliper | |
|---|---|
| Series | Classic Series |
| Model / Application | 5440 |
| Axle Position | Front |
| Piston Count | 4-piston |
| Piston Type | Star-profile racing pistons without dust boots |
| Piston Diameter | 38 mm × 2 / 41 mm × 2 |
| Caliper Dimensions | L 276 mm × W 138 mm × H 80 mm |
| Total Piston Area | 49.1 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 2.65 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 17 in or larger |
| Recommended Rotor Size | Ø330–345 mm × 28 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 86 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
The 5440 uses a two-piece forged aluminum body rather than a cast one, which is stiffer for its weight — that rigidity keeps the caliper from flexing open under hard braking, so pedal effort translates more directly into clamping force instead of getting absorbed by a caliper that's bowing outward. The four-piston layout also spreads clamping force more evenly across the pad than the stock single- or dual-piston sliding caliper, which helps the pedal feel more linear and predictable under repeated stops.
- High-carbon heat-treated rotor adds thermal mass over the factory disc, helping resist fade during repeated hard braking.
- Fits behind the car's existing 19-inch wheels — no spacers or wheel changes needed for this build.
- Stainless steel brake lines replace the factory rubber hoses, cutting down on line expansion under pressure for a firmer pedal.

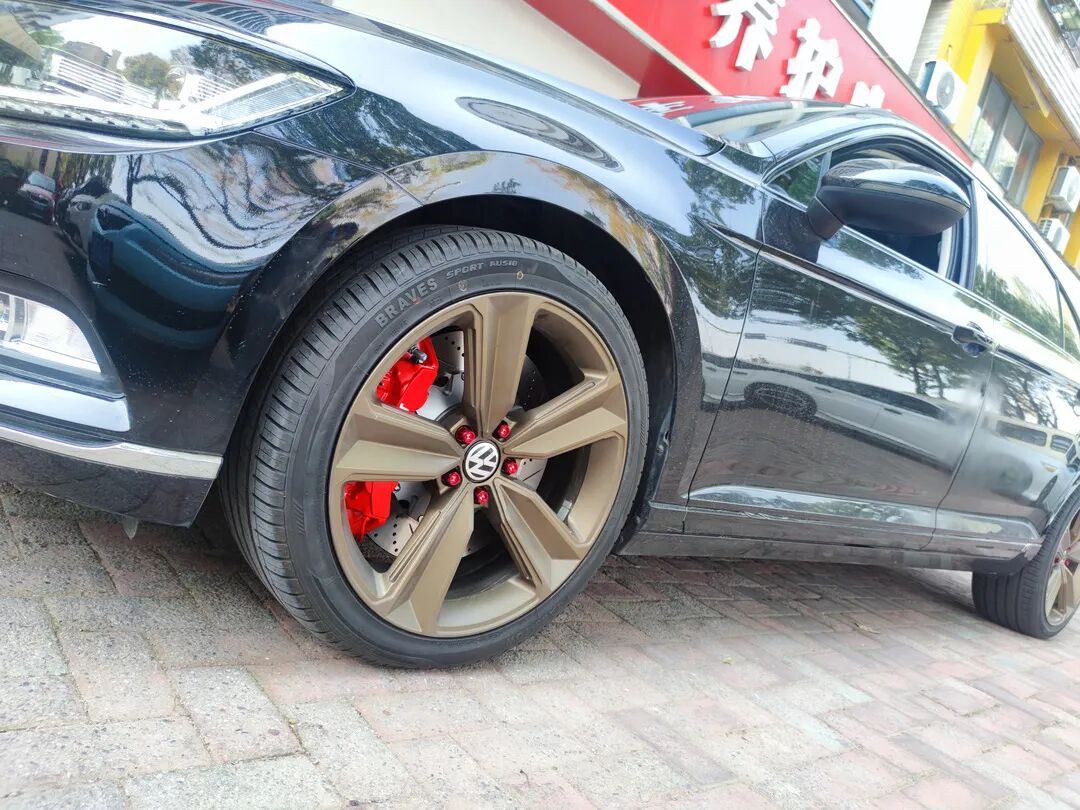

Installation Gallery
A brake system is the single most important safety component on the car, so its stopping power and consistency matter more than almost any other upgrade. Swapping in the TTSPORT Classic 5440 kit gave this Magotan a firmer pedal and stronger, more consistent stopping power, while the forged caliper and heat-treated rotor also give the front end a noticeably more purposeful look behind the factory wheels.
Frequently Asked Questions
What wheel size does the TTSPORT Classic 5440 kit require on the Magotan?
What does the TTSPORT Classic 5440 kit include?
Is the 5440 caliper a forged unit?
Need fitment confirmation? Choose the closest TTSPORT series or send your vehicle, wheel size, and intended use before ordering.
