Volkswagen Lamando Big Brake Kit Upgrade / TTSPORT Classic 8611

Volkswagen markets the Lamando as its "wide-body coupe" sedan — MQB platform, EA888/EA211 TSI power, a wet 7-speed DSG, and up to 220 hp on tap. It looks and drives sportier than a typical compact sedan, but the factory brakes on this one didn't quite match that attitude. This case study covers a straightforward fix: a TTSPORT TT8611 forged six-piston big brake kit installed behind the car's 17-inch wheels.

Beyond stopping power, this owner wanted a caliper that looked the part. TTSPORT finishes the TT8611 in red to complement the body color, and because it's forged from high-strength aluminum alloy rather than cast, it comes in lighter and runs cooler than the factory unit — a single caliper weighs just 2.10 kg. Less unsprung weight at each corner, plus better heat dissipation, is a win on both the stopwatch and the street.

Vehicle & Kit Specs

Why It Works

The TT8611 caliper runs three pairs of opposed pistons, each pair sized differently. That staggered layout applies clamping force progressively across the pad rather than all at once, which is why the pedal still feels linear and easy to modulate at low speeds while still delivering strong bite when you need it. Pair that with the 330mm curved-vane rotor — more swept area and better airflow through the vanes than the stock disc — and the combination holds up more consistently under repeated hard stops.

• Forged aluminum caliper body cuts weight versus the cast factory unit while improving heat dissipation
• Three-diameter opposed-piston layout keeps pedal feel progressive instead of grabby
• Fits behind 17-inch and larger wheels, matching the Lamando's factory fitment

According to the shop that handled the install, the owner reported a noticeably firmer, more stable pedal along with sharper response after the swap. He also noted the rotors stayed nearly free of brake dust — a small but appreciated detail for anyone who keeps a close eye on their wheels.

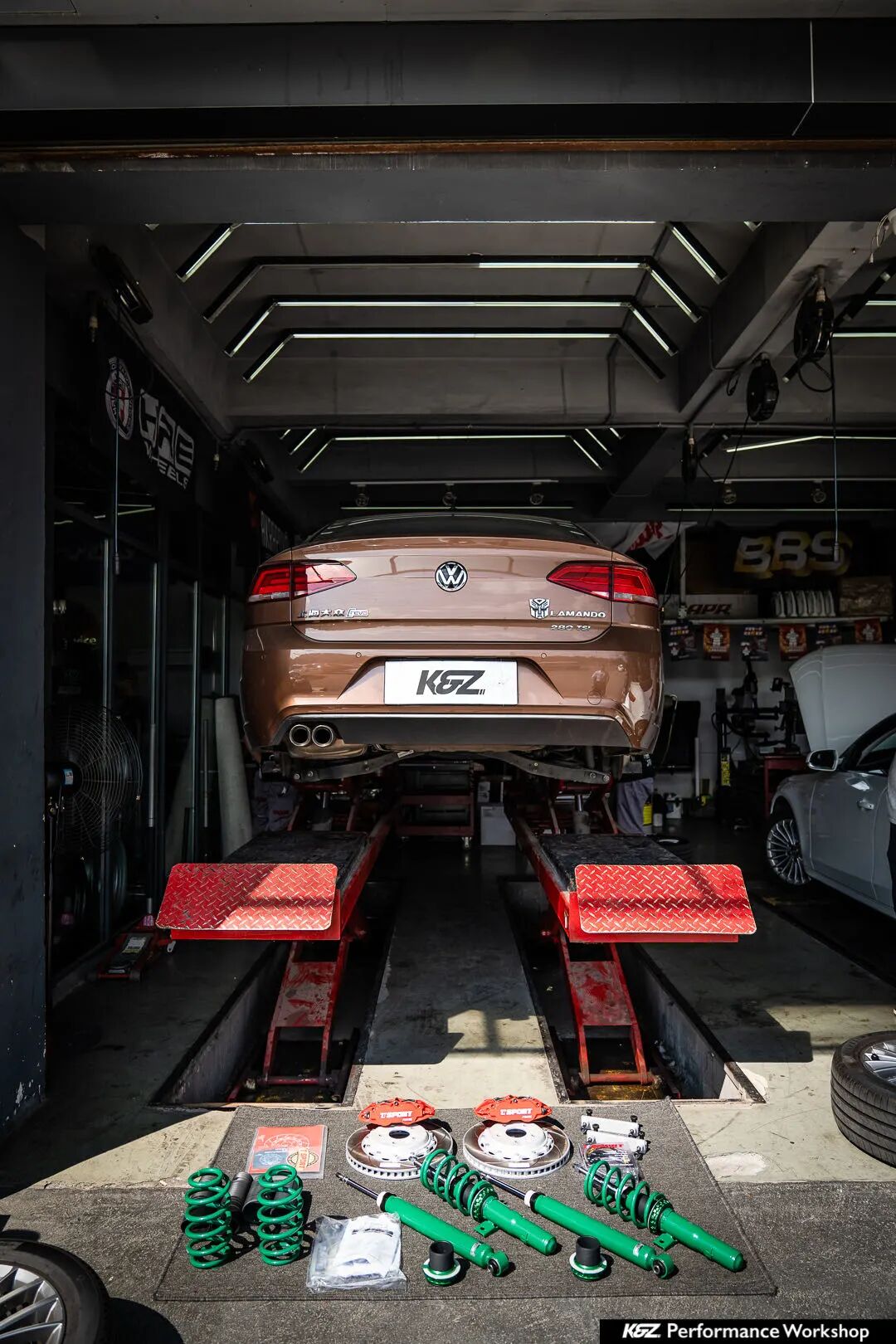

Installation Gallery
