Volkswagen Golf (Mk6) Big Brake Kit Upgrade / TTSPORT Classic 5440
The Golf is Volkswagen's best-selling nameplate worldwide, and the Golf 6 sold in China came with either a 1.6L naturally aspirated engine or the 1.4TSI turbo — neither one a performance flagship. That's exactly why this build is worth a look: a budget-friendly hatchback got a genuine big brake kit, and the improvement in pedal feel was dramatic. The owner swapped the stock brakes for a TTSPORT 5440 forged four-piston kit, keeping the factory 17-inch wheels.
Behind the factory 17-inch wheel, the red 5440 caliper clamps a 330x28mm drilled rotor. The whole package was chosen specifically because it's a proven, cost-effective setup rather than an exotic one — which is part of why it's popular with Golf owners looking to fix a soft stock pedal without an expensive wheel swap.
Vehicle & Kit Specs
| Item | Specification |
|---|---|
| Vehicle | Volkswagen Golf 6 (Mk6), 1.4TSI, 17-inch factory wheels |
| Front caliper | TTSPORT 5440 forged four-piston caliper |
| Front rotor | TTSPORT 330x28mm high-carbon heat-treated drilled rotor |
| Bracket | Vehicle-specific caliper bracket, forged from 7075-T6 aluminum |
| Brake lines | TTSPORT stainless steel brake lines |
| Hardware | Imported Japanese piston seals, mounting hardware |
Below is the official spec sheet for the TTSPORT 5440 caliper used on this build.
| Brake Caliper | |
|---|---|
| Series | Classic Series |
| Model / Application | 5440 |
| Axle Position | Front |
| Piston Count | 4-piston |
| Piston Type | Star-profile racing pistons without dust boots |
| Piston Diameter | 38 mm × 2 / 41 mm × 2 |
| Caliper Dimensions | L 276 mm × W 138 mm × H 80 mm |
| Total Piston Area | 49.1 cm² per caliper, all pistons combined |
| Manufacturing Process | Two-piece forged aluminum body |
| Net Weight | 2.65 kg per caliper, without pads |
| Surface Finish | High-temperature gloss coating |
| Recommended Wheel Size | 17 in or larger |
| Recommended Rotor Size | Ø330–345 mm × 28 mm |
| Fitment & Installation | |
| Minimum Spoke Clearance (mm) | 86 |
| Caliper Mounting Type | Radial mount with vehicle-specific caliper brackets |
| Brake Line Fitting Type | Vehicle-specific fittings; caliper-side and chassis-side fittings vary by application |
Why It Works
The 5440 body is forged in two pieces from aluminum under roughly 3,000 tons of pressure, which gives it about 30% more rigidity than a comparable cast caliper — less flex under load means less pedal travel is wasted before the pads actually bite.
- Star-profile racing pistons, run without dust boots, help dissipate heat and reduce brake noise.
- The 330x28mm drilled rotor is baked at 600°C and then held at temperature for 12 hours, which improves strength and wear resistance and reduces heat-related warping during hard stops.
- A vehicle-specific bracket forged from 7075-T6 aluminum keeps unsprung weight down compared with a heavier off-the-shelf bracket.
Installation Gallery
What wheel size does the TTSPORT 5440 kit fit on a Volkswagen Golf?

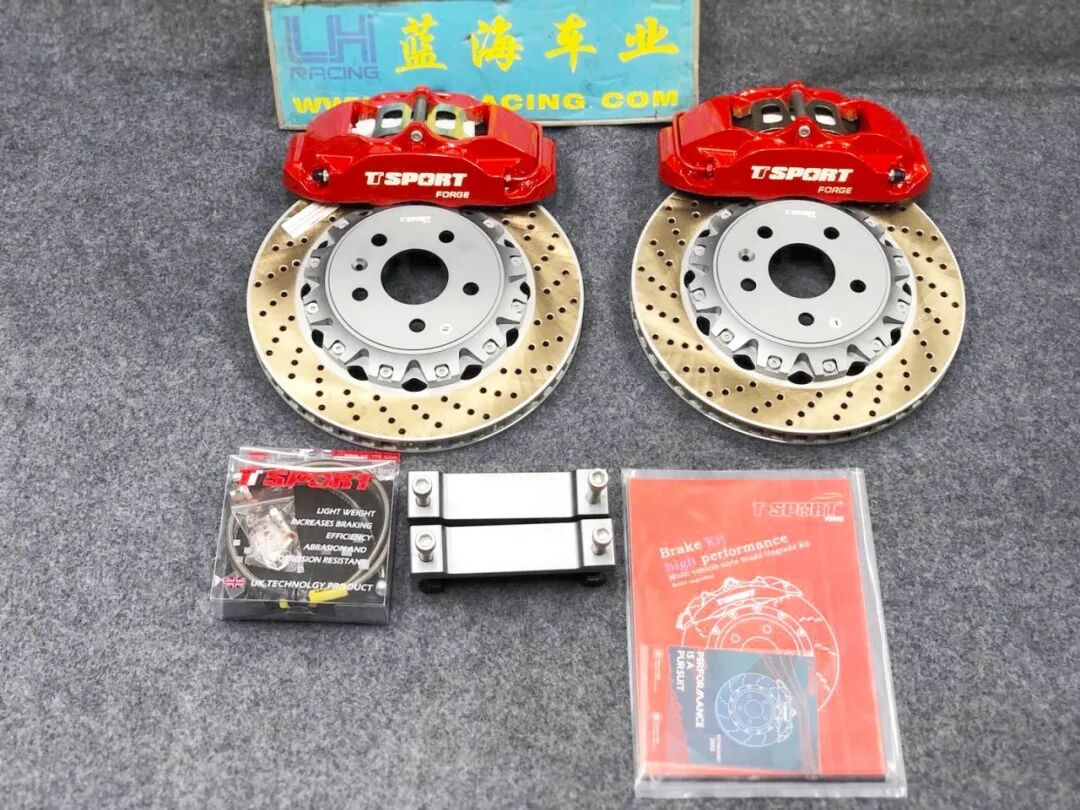

What's included in the TTSPORT 5440 kit for this Golf install?
What makes the TT5440 caliper stronger than a stock unit?
